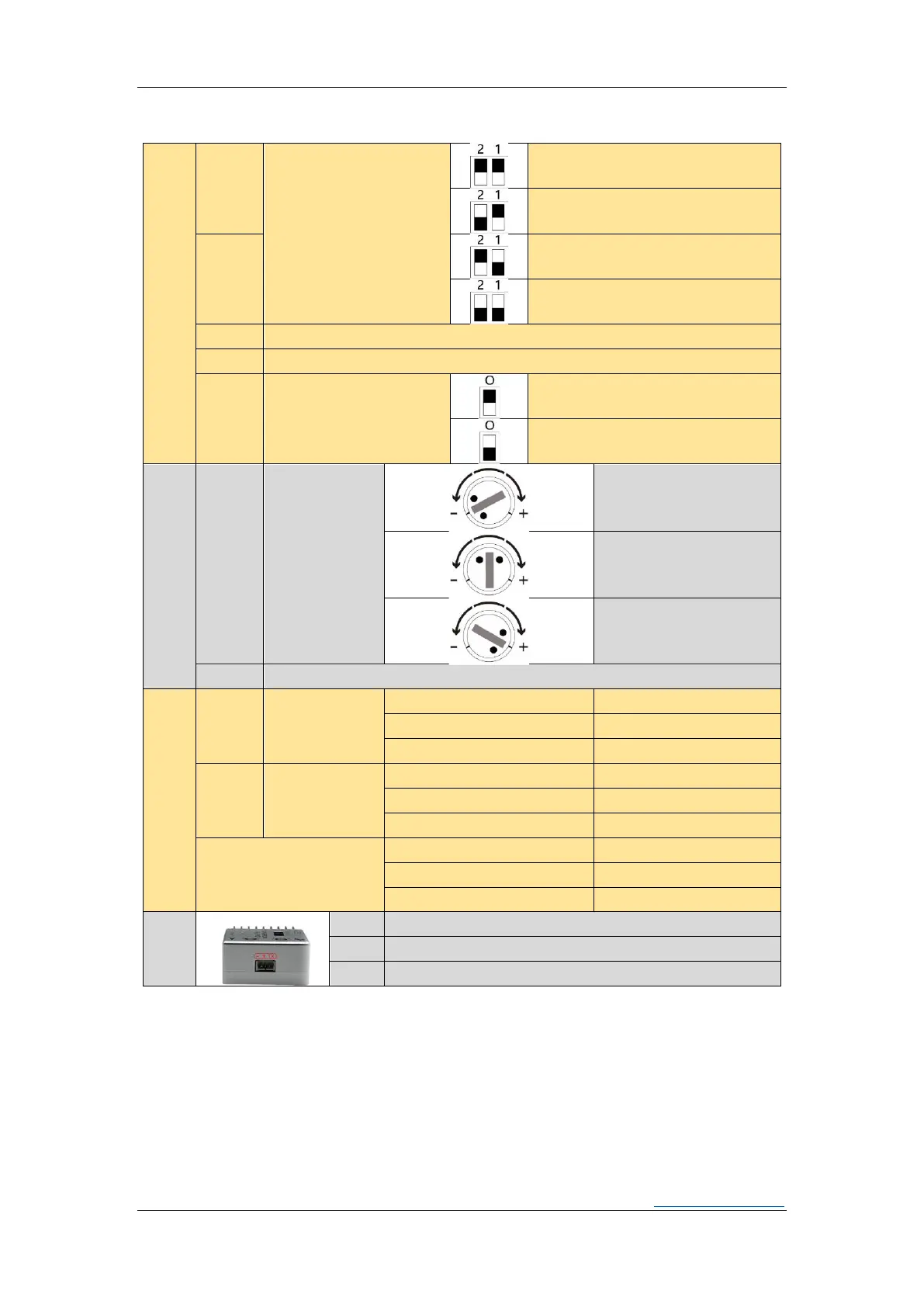

➢ Settings & Display
*The black area of the DIP switch in the picture indicates the actual position of the DIP switch.
DIP switch
1
Aircraft model settings
and OSD position
adjustment
T-Tail
V-Tail
2
Delta Wing
OSD position adjustment
A
AIL feedback direction
E
ELE feedback direction
O
HD VTX selection
DJI V2
DJI O3/AVATAR
Knob
RAD
FlightMode
selection and
radius
adjustment
MANUAL
FENCE(Radius
100~400m)
ALTCTL
GAIN
Gain setting
LED
RED
GPS Status
Constant on
GPS fixed
Blink
GPS not fixed
Constant off
GPS not connected
GREEN
FlightMode
Blink rapidly
RTH/FENCE/ALTHOLD
Blink slowly
MANUAL/ALTCTL
Constant on
STAB
Special status indication
Red off,green blinks 3 times
No RC
Green off,red blinks 3 times
Cali-ESC
Red and green blink 3 times
Sensor Failure
VTX
-
GND
+
Used to measure VTX supply voltage
TX
Data output, connected to VTX-RX
