7.283”
(185 mm)
10.094”
(256.4 mm)
1.181”
(78 mm)
SEE INSTRUCTIONS FOR IMPORTANT
MOUNTING INFORMATION
TOP
Locking finger
Replacement L8251FZLI
Cover
Screw

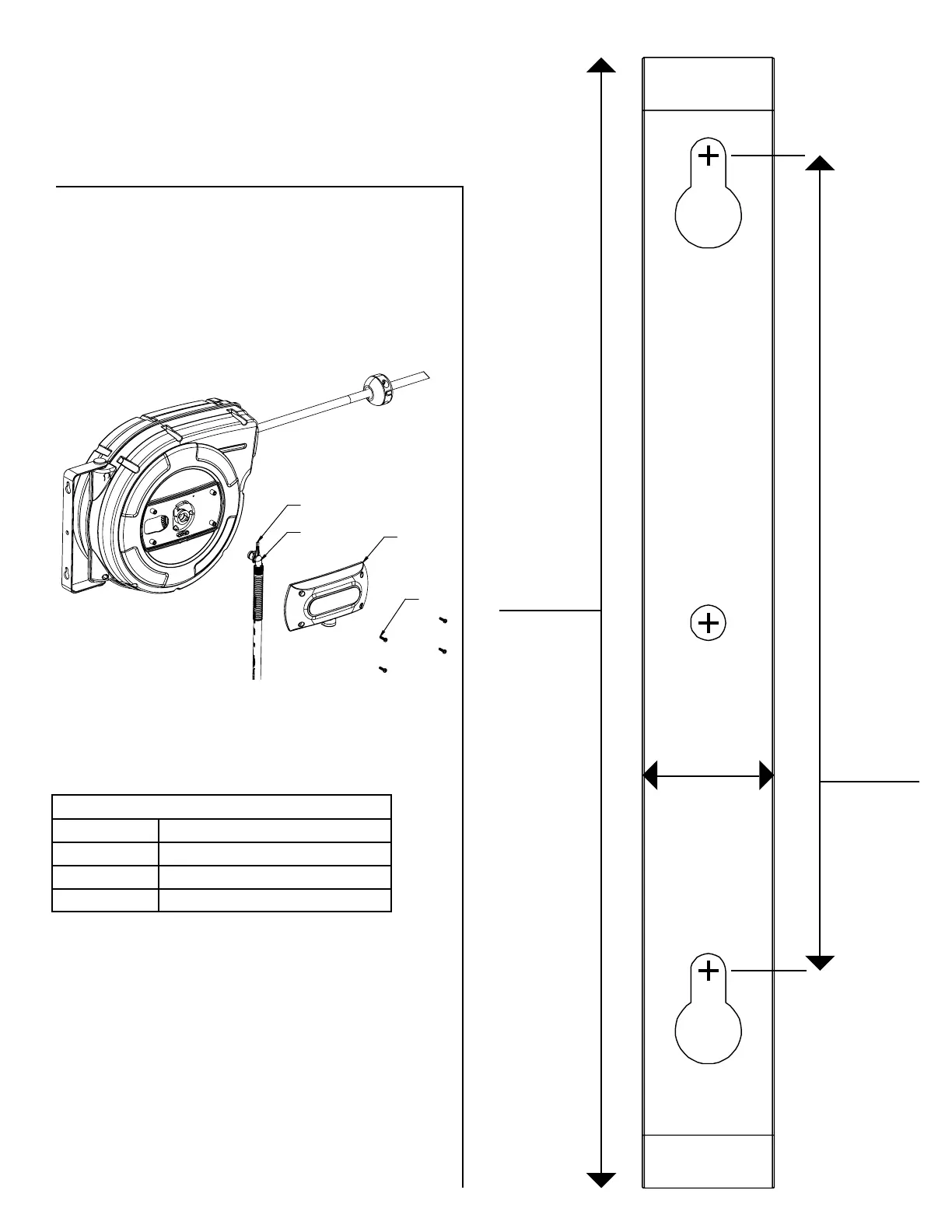

REPAIR INSTRUCTIONS
Replacing Lead-in Hose:
1.
Remove the 4 screws
2. Remove cover
3. Lift locking finger on fitting
4.
Rotate counter clockwise
5.
Pull fitting out of the reel
6.
Replace with new L8251FZLI
5 YEAR LIMITED WARRANTY
For warranty information visit flexzilla.com/warranty
or call 800-645-8258
REPLACEMENT PARTS
Part # Description
L8251FZLI Lead-in air hose 3/8in. x 5ft.
RP005051-FZ Replacement air hose 3/8in. x 50ft.
RP018251 Hose stopper
