4

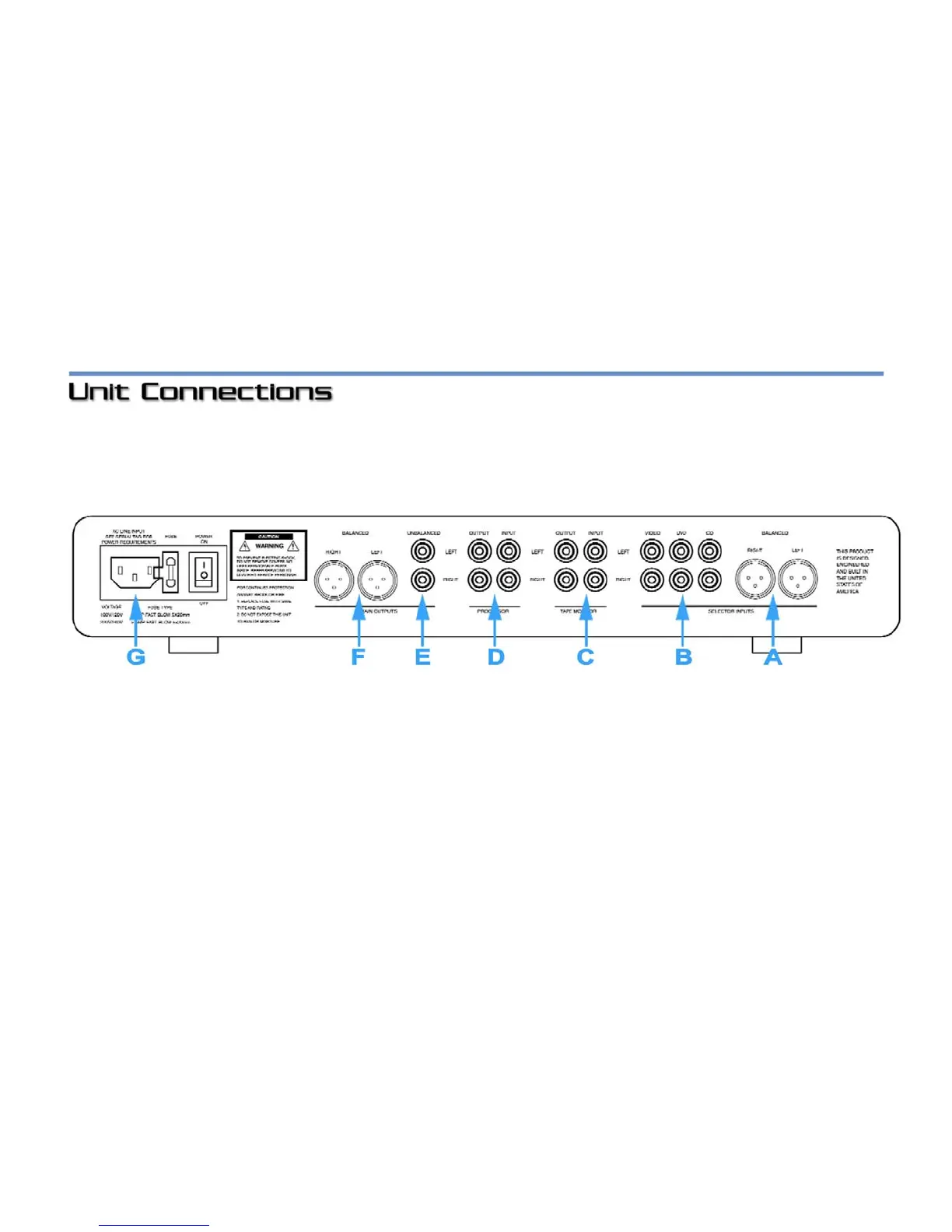

Rear Panel Connections
Be certain the Streamline and all associated equipment is turned off
before making any connections.
A. Balanced Inputs: Signal input is made through two XLR
(balanced) type connectors and six gold plated RCA (unbalanced)
type connectors. The XLR pin configuration is as follows: ground is
pin 1, positive is pin 2, and negative is pin 3.
B. Selector Inputs: Unbalanced stereo RCA jacks.
C. Tape Monitor: Signal input and output connections for a recording
device.
