13
HDMI
(ARC)
(ARC)
Installation

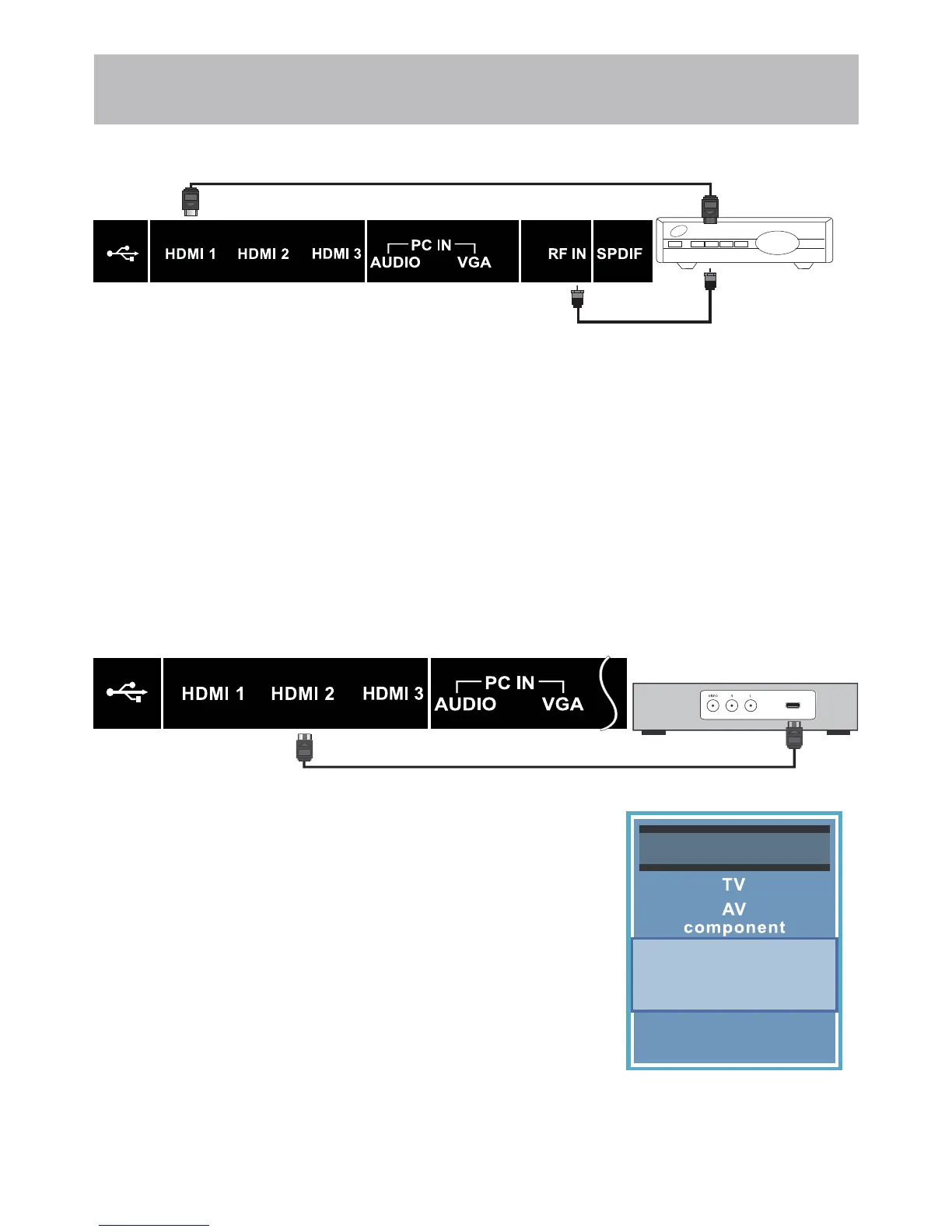

Connection to HDMI Input
&RQQHFWLQJWRDQ+'6HW7RS%R[RU+LJK'HÀQLWLRQ'9'3OD\HU
8VLQJ+'0,
)RU%(67YLGHRSHUIRUPDQFH
Connect to external equipment that offers HDMI, an uncompressed, all
digital video / audio interface found on today’s HD digital set top boxes and
Blu-ray players. Use of this pure digital technology offers enhanced high
GH¿QLWLRQYLGHRDQGGLJLWDODXGLRDOOYLDDVLQJOHFDEOH
There are three (3) HDMI inputs available for use with HD set top boxes,
gaming consoles and HD DVD / Blu-ray players.
How to Connect HDMI
From your external digital equipment, connect an HDMI cable from the
HDMI output to the HDMI input on the TV’s rear panel.
How To Use
Press the INPUT button on the remote control. Use TS arrow but-
tons to highlight the input to view (HDMI 1, 2,3) then press ENTER.
Coaxial / RF Cable
(not included)
Optional HDMI cable ( not included )
TV REAR PANEL
Cable / Satellite
set top box
Optional HDMI cable ( not included )
TV REAR PANEL
Digital set top box, gaming console,or
Blu-ray w / HDMI interface
'LJLWDO&DEOH6DWHOOLWH6HW7RS%R[
How to connect with Digital Cable / Satellite Set Top Box
Connect the RF coaxial (75 ohm) cable from the video outlet of your cable / Satellite box to the RF input on the TV’s
rear panel. Select Ch. 3 or 4 on the TV and select a channel.
For greater performance, if possible, use component or an HDMI installation(shown). Refer to your set top box user
manual.
See pages 18-19 for TV setup and Channel Auto Scan.
Source Select
PC
Media
HDMI1
HDMI2
HDMI3
To Next Page
