Installation

Connection to Component

YPbPr Input

)RU%(77(5YLGHRSHUIRUPDQFH

Connect to external equipment that features component video output

jacks for better performance. Use the Component Y Pb Pr video and

audio inputs with a set top box, gaming console or DVD player.

How to Connect Component

 When connecting external equipment to your television, match the

colors of the connecting jacks (Video: Blue, Green, Red; Audio: White

/ Red ).

 Connect the optional component video cables (blue, green, red) (not

included) from the video output jacks (Y, Pb, Pr) on your external

equipment to the Component Y Pb Pr input on the TV’s rear panel.

 Connect white / red audio cables for sound from the audio (L / R)

output jacks on your external equipment to the AV L / R input jacks on

the TV’s rear panel.

How to Use

 Press the INPUT button on the TV remote control. Use TS arrow

buttons to highlight the input to view (Component) then press ENTER.

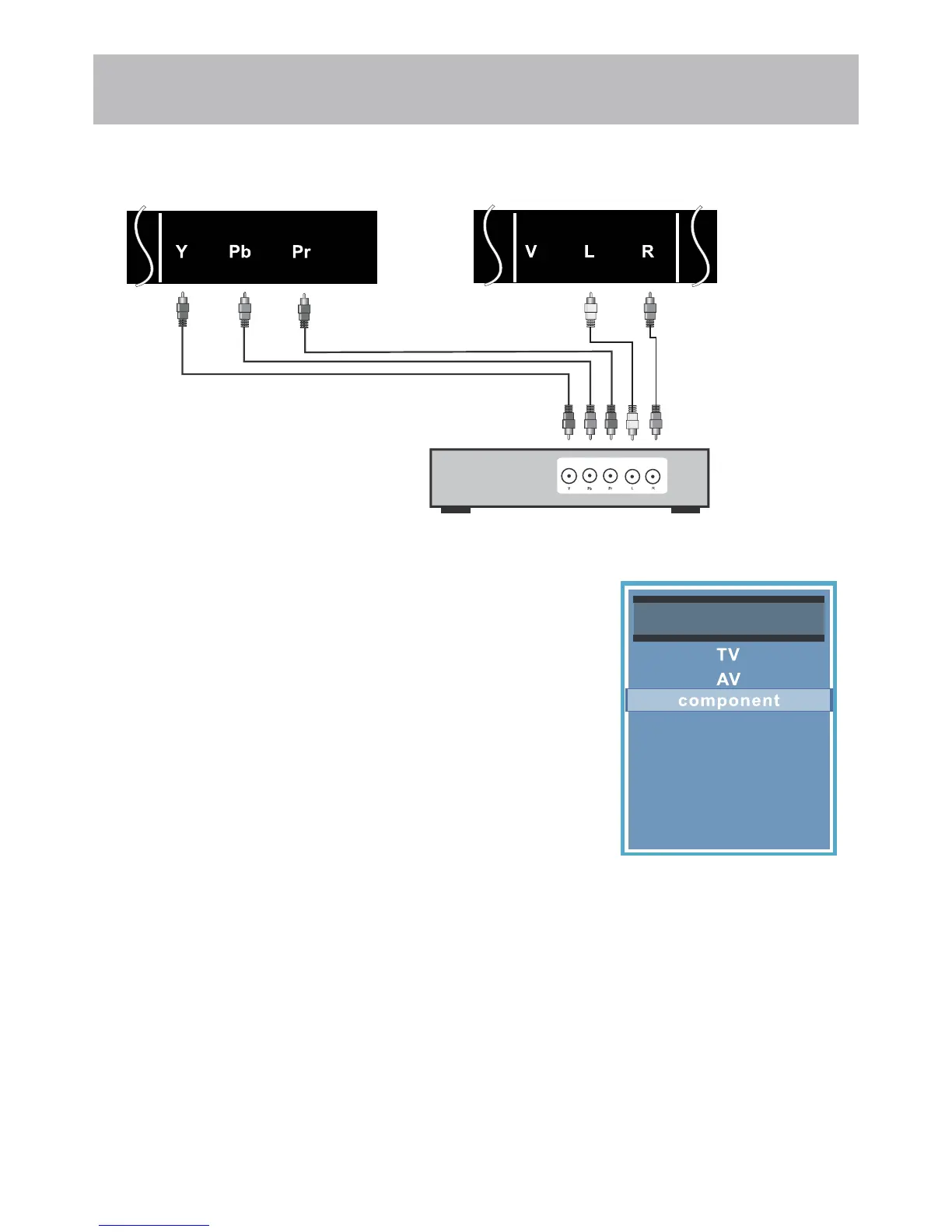

&RQQHFWLQJ([WHUQDO(TXLSPHQWWR&RPSRQHQW9LGHR,1<3E3U

TV REAR PANEL

Optional Component cables

(not included)

Digital set top box, gaming console or DVD

Source Select

Media

HDMI1

HDMI2

HDMI3
