MODULAR PEBBLE LAYOUT INSTRUCTIONS
14

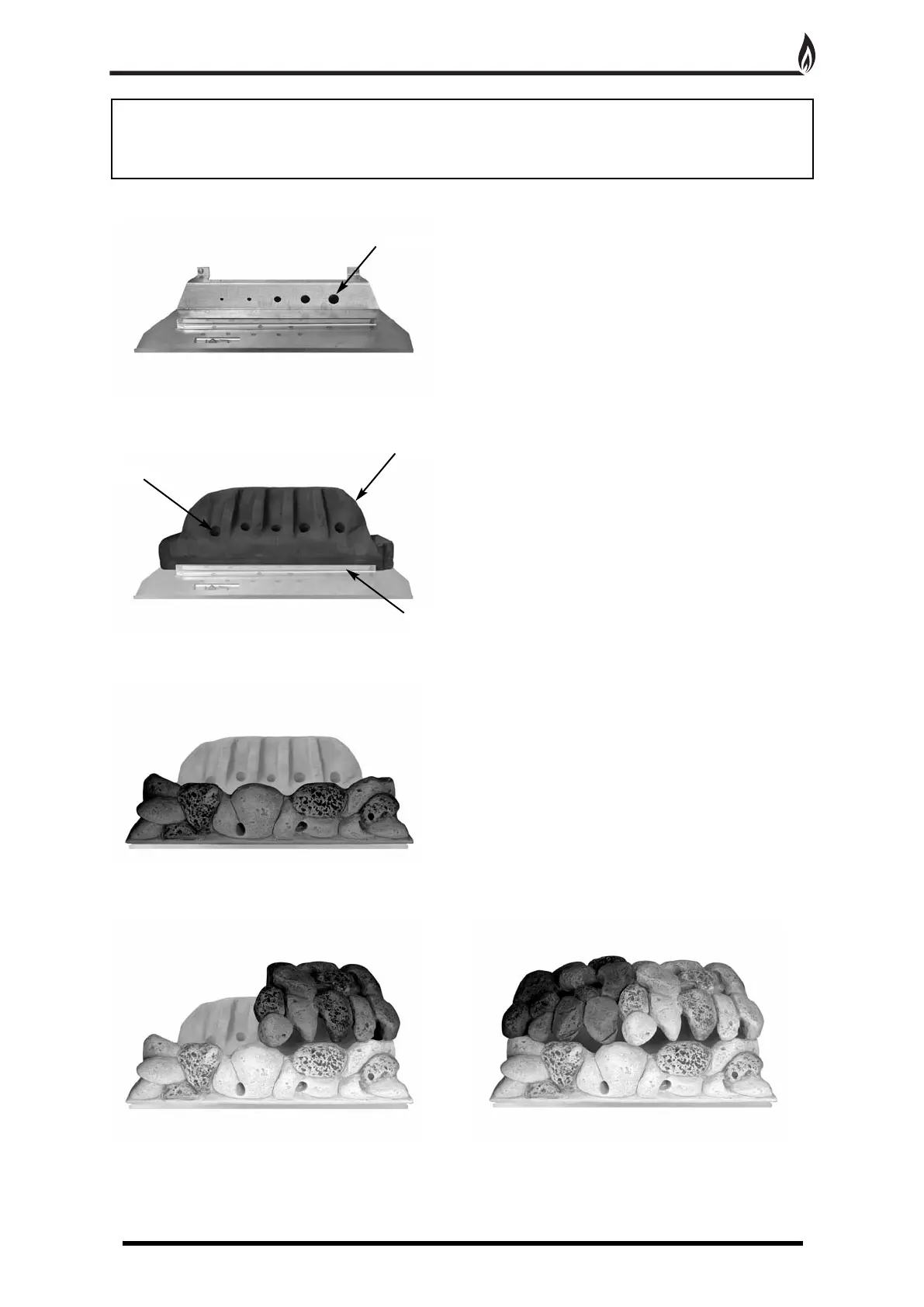

1. Place the main fuel bed on to the back section of the
metal burner tray. It is important that the front edge of
the fuel bed is located behind the burner strip, and the
holes in the fuel bed line up with the holes in the
Burner tray (Fig. 20).
3. Position the front pebble piece on the front coal
retainer
, making sure that the back edge is pushed up
against the front of the burner strip (Fig. 21).
CAUTION: The pebbles are extremely fragile and must be handled accordingly. Gloves should be worn
a
nd any inhalation of dust should be avoided. The pebbles must be kept away from children at all
times. Never put additional pebbles on the fire. Never use pebbles other than those originally supplied,
o
r genuine Legend Spare Parts.
F
ig. 19
Fig. 20
Fig. 22
Fig. 23
Fig. 21
Burner Strip
B
urner Tray Holes
F
uel Bed Holes
Fuel Bed
4. Locate the remaining pebble pieces in order as shown in Figs. 22 & 23.
To Next Page
