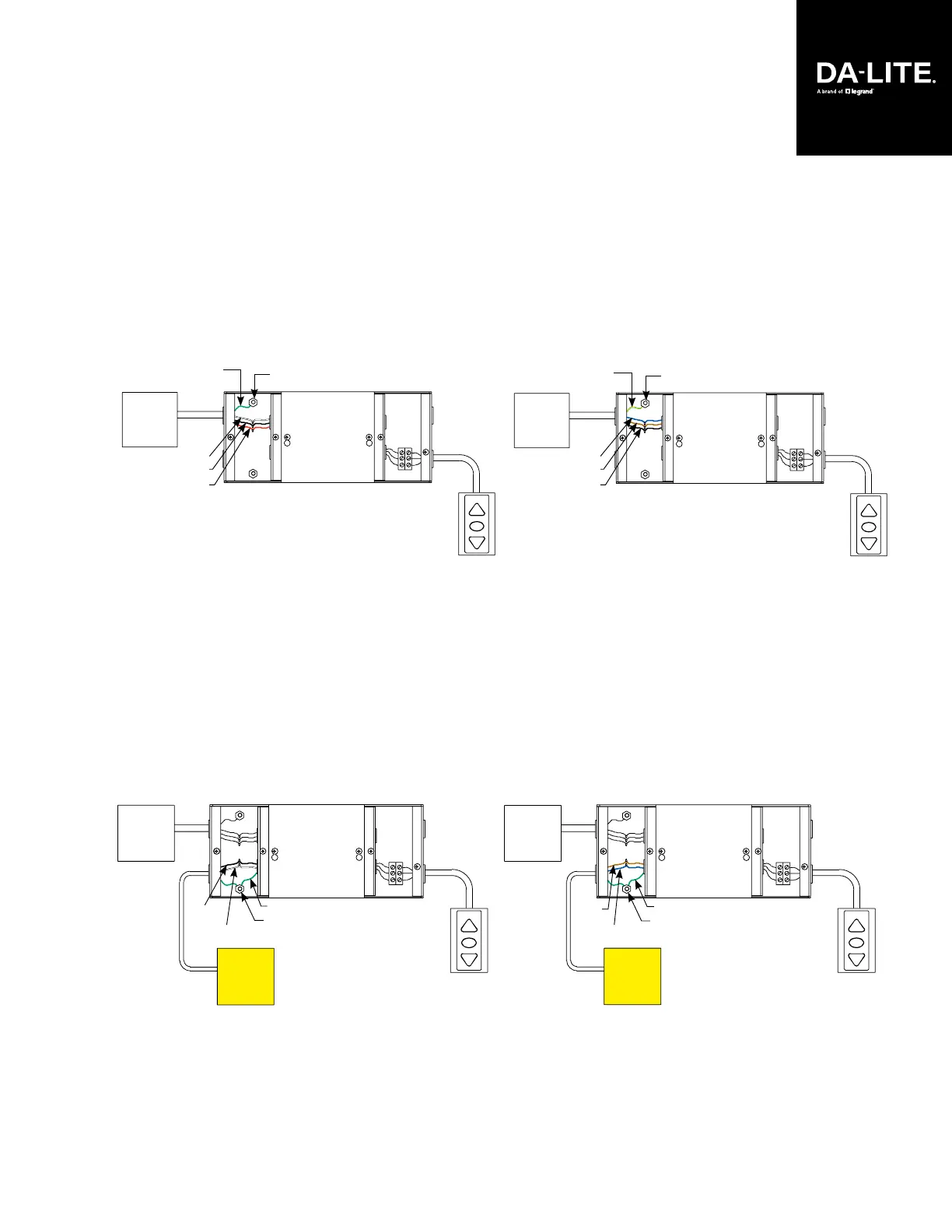

LEGRAND DA-LITE - AC Power Connections; Screen Motor; AC Power Source

5
Screen
White-White
120VAC 60Hz 230 VAC 50Hz
Figure 2
Black-Black
Green
Ground
Red-Red
Up
Stop
Down
Up
Stop
Down
Ground Lug
Screen
Green/Yellow
Ground
Ground Lug
Recommended Wire Size:
1418 AWG
Recommended Wire Size:
1418 AWG
Blue-Blue
Brown-Brown
Black-Black
Power
Source
120VAC
60HZ
Green Ground
Ground Lug
Power
Source
230VAC
50HZ
Green Ground
White Common Blue Common
Ground Lug
Black Hot
Brown
Hot
Figure 3
Up
Stop
Down
Recommended Wire Size:
1418 AWG
Recommended Wire Size:
1418 AWG
Screen Motor
1. Connect the motor wires in the screen junction box to
the LVC wires labeled “motor wires”. Refer to diagram
AC POWER CONNECTIONS
2. Use 14-18 gauge wire to extend the motor wire to the
required length.
AC Power Source
1. Connect power wires to the LVC wires labeled “AC
power input”. Refer to diagram 3.
2. Connect the building ground wire to the ground lug
on the metal housing.
Up
Stop
Down
