This product can store 16 different On codes and 16 different Off codes per output. It is not, however, possible to combine operating modes.
Timer, Switch and Pushbutton modes will be identical for all the codes stored on one output.
Selecting the operating mode
Teaching Switch mode
Important :
It is possible to control a receiver via 2 different keys on one transmitter (use
as a switch, A) or via a single key on one transmitter (use as remote switch,
B). However, use as a switch is preferable if the environment is subject to
interference.
Selecting the mode
Timer mode :
Switch mode :
Pushbutton mode :
Teaching the On code
Teaching a single Off code

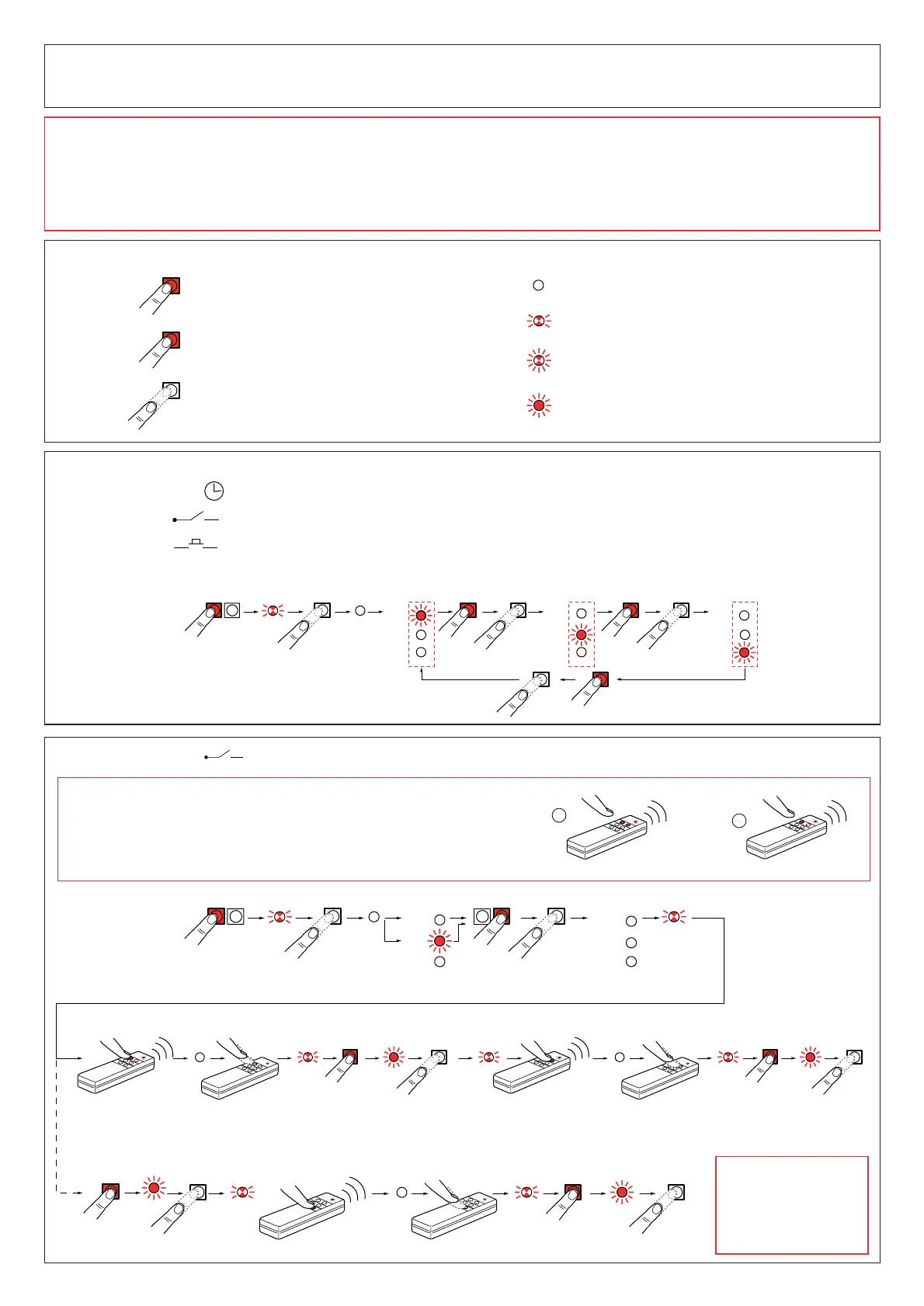

Programming symbols
Press the button shown
Press for more than 2 seconds
Release the button
The indicator shown is off
The indicator shown flashes quickly
The indicator shown flashes slowly
The indicator shown is on
Teaching the Off code
The mode can be changed by pressing pushbutton BPn repeatedly.
Important :
When pushbutton n is pressed for more than 2 seconds the On/Off indicator flashes to indicate the change to teach mode.
If the indicator flashes very quickly 3 times after pushbutton n is released, this indicates that the receiver cannot be taught any more codes.
The user has two options : either to abandon teaching another transmitter, or to clear all the codes and start teaching 16 new codes.
Do not exceed a period of 30 seconds between two presses on one key, otherwise the receiver will automatically exit teach mode.
If a single Off code is
taught to a number of
receivers, it can be used
to perform a general
switch-off.
