In switch mode : using short presses of less than 2 seconds,
relais “n” closes then opens successively
In timer mode : ashort press of less then 2 seconds on “BPn”,
relais “n” closes for the length of the time delay
In pushbutton or remote control dimmer mode a very short
press of less than 0,4 seconds on “BPn”, relais “n” closes for 0,4
seconds, a short press (more than 0,4 seconds but less than 2
seconds) on “BPn”, relais “n” closes for about 4 seconds.

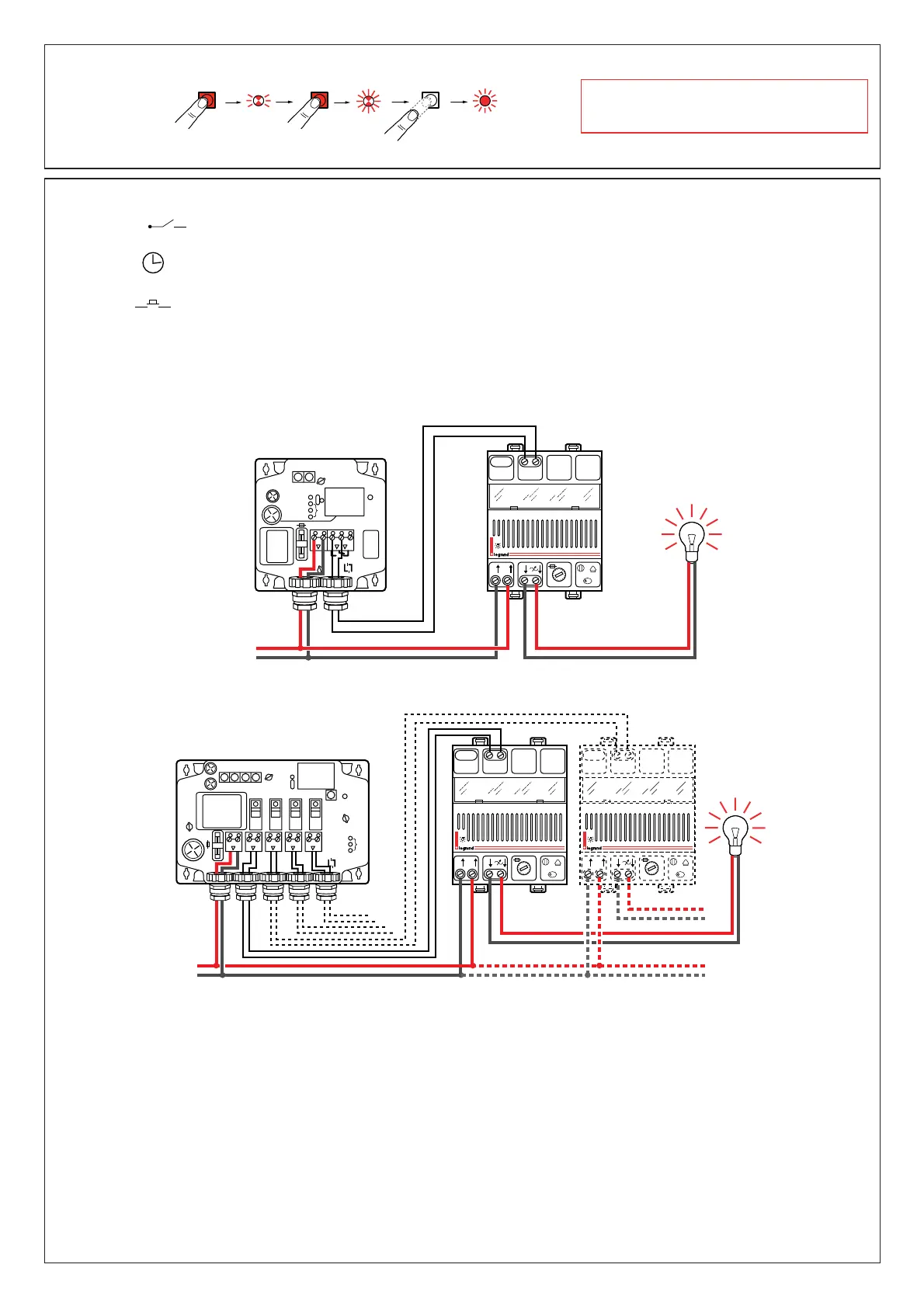

Example of wiring with remote control dimmer :
Operating in local mode
