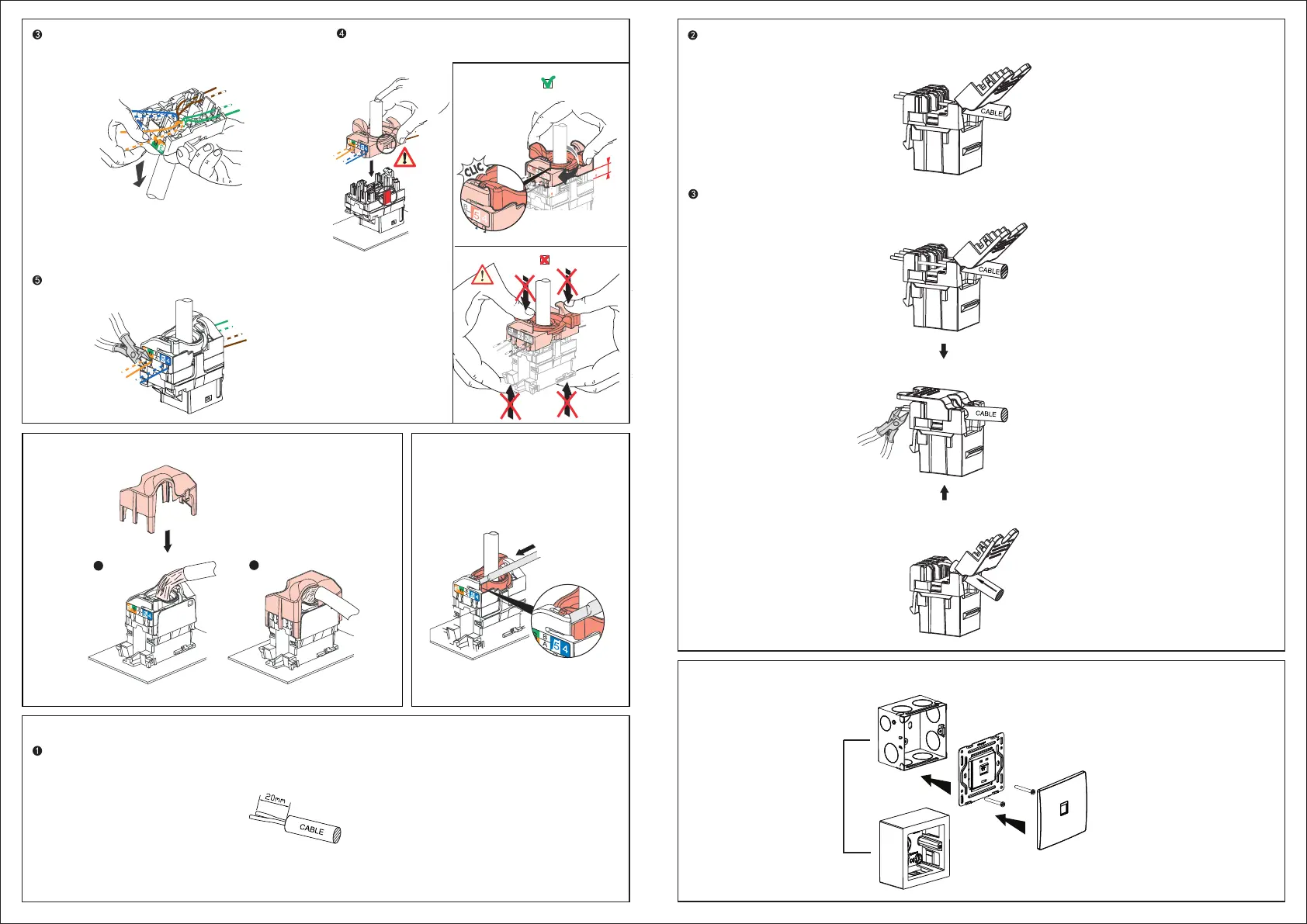

Insert the twisted pair and press all the wires
into the presser cover in turn according to
EIA568A or EIA568B.
Recombine the cover with the modnle and
rotate the lock to the locking position.
Cut out the excess thread.
OK
NO
STP
RJ11 socket
When removing, gently pry open
the cover with a small screwdriver
in the shown position.
Strip the outer sheath of the telephoneline to about 20mm.
6
7
2
When using 4-core phone line connection,
order of black, red, green and yellow respectively, and then flip the cover.
the telephone line is stuck into 3, 4, 5 and 6 slots in the
Press the cover and let the wire into the clip, cut the excess ends.
Remove the wire, push the wire and then pull up.
Installation
When using a 2-core phone line connection, insert the phone lineinto the 4、5 slots in the middle
of the IDC terminal and then flipthe cover.
