GENERAL DESCRIPTION

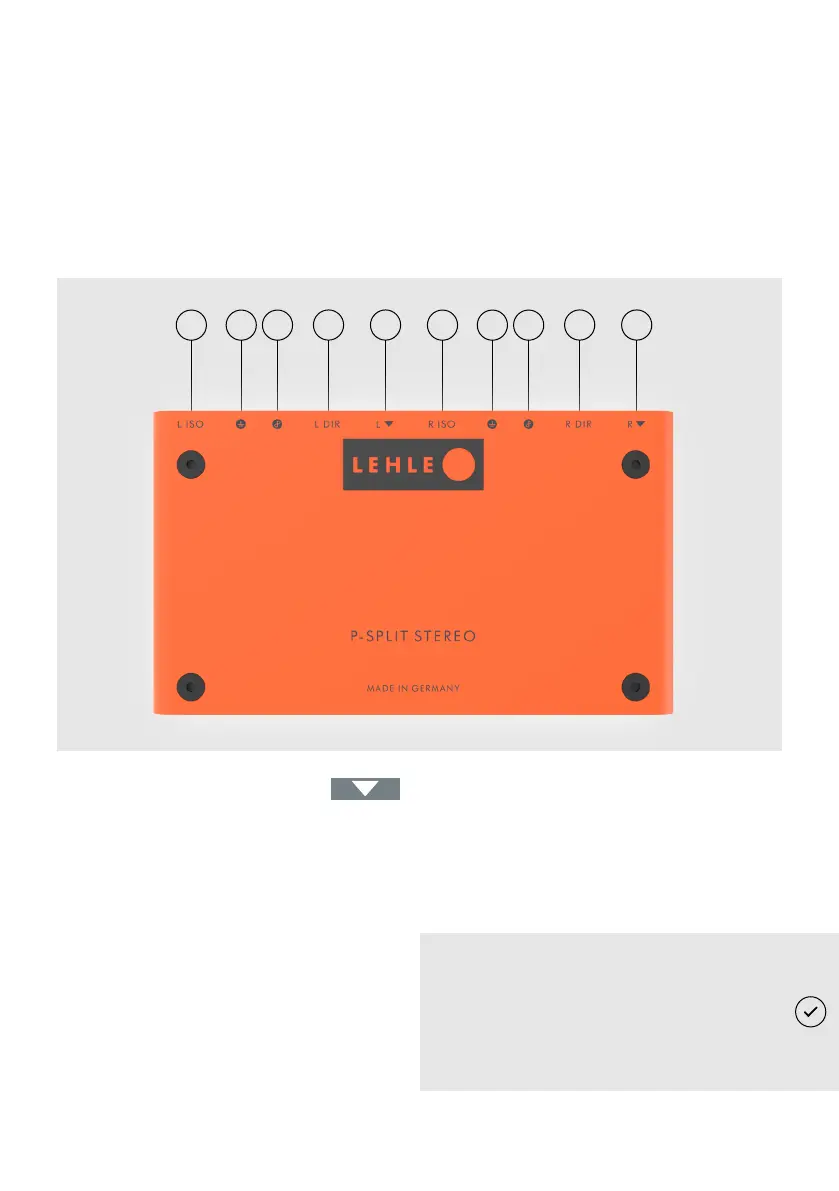

1. INPUT SOCKET
Connect the output of a stereo eects
unit, keyboard or DAW here.
The input signal is fed into this socket.
The LEHLE P-SPLIT STEREO operates en-
tirely passively.
The input signal remains connected to the
ISO and DIR outputs at all times, with no
semiconductors or any other active com-
ponents in the signal path.
Both balanced and unbalanced sig-
nals can be split, since the LEHLE
TRANSFORMER HZ is capable of han-
dling both types.
1
1 22
33 44 55
If the INPUT SOCKET L is not occupied,
the signal of the INPUT SOCKET R will
automatically be mirrored.
This way you can split up to three galvani-
cally isolated outputs.
