LEHR BV025HH - Unit Assembly

ASSEMBLY
BLOWER MODE
NOTE: Place the unit on the ground or on a work
bench to make attachment installation or removal
easier.

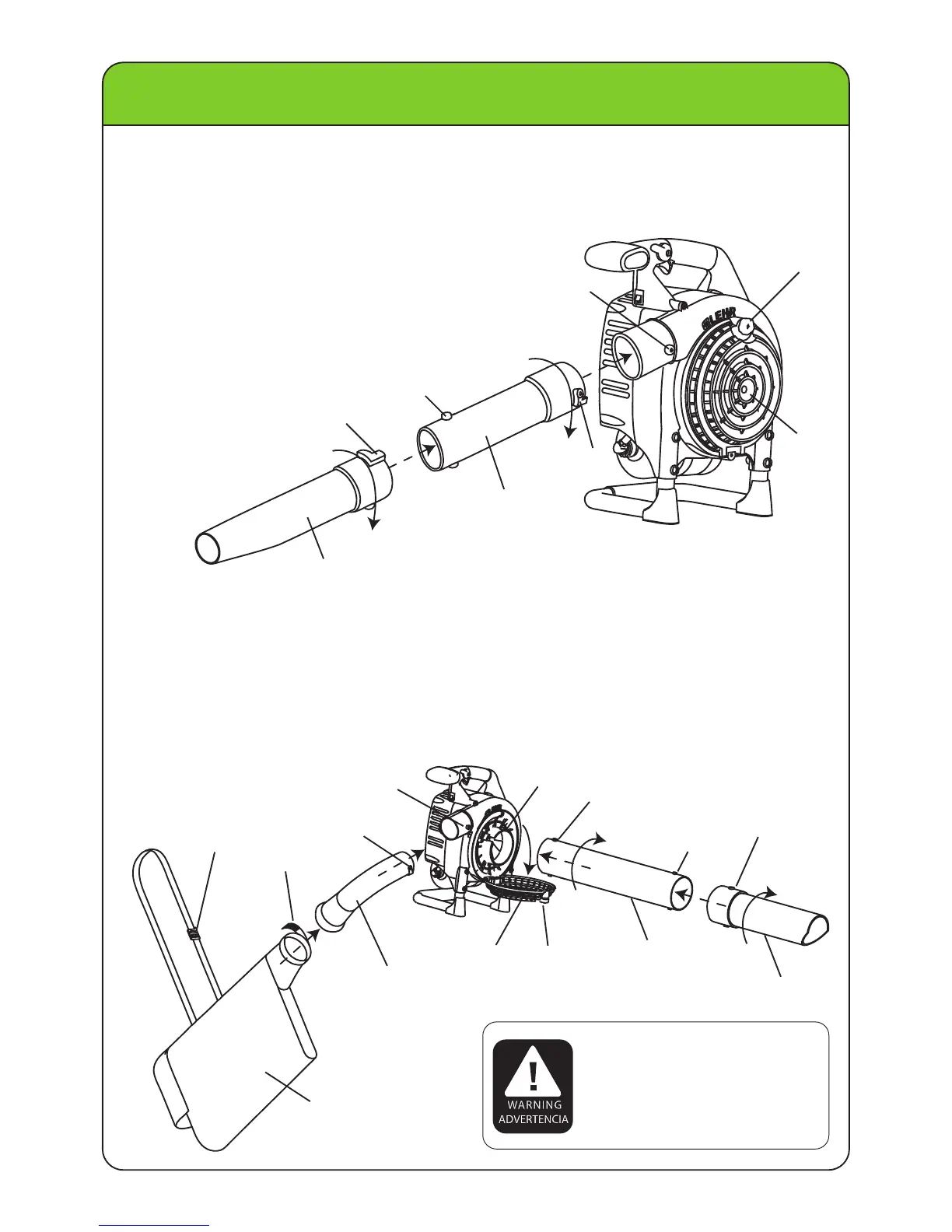

1. Install blower attachments in sequence shown, aligning
the grooves on the nozzles with the pegs (Fig. 7).
2. Slide the nozzles onto the pegs.
3. Twist the nozzles clockwise to lock in place.
NOTE: Make sure the Cage Screw is tightened down.
VACUUM / MULCHER MODE
1. Loosen the Cage Screw and pull down the Cage (Fig. 8).
2. Install vacuum attachments in sequence shown, aligning the grooves on the nozzles with the pegs.
3. Slide the nozzles onto the pegs.
4. Twist nozzles clockwise to lock in place.
5. Secure Mulch Collection Bag onto the Mulch Collection Bag Adapter by strapping down the Velcro Strap.
Place the shoulder strap over your left shoulder and adjust the Shoulder Strap Adjustment as necessary.
WARNING:
TO AVOID SERIOUS INJURY AND DAMAGE
TO THE UNIT, SHUT OFF THE UNIT BEFORE
REMOVING OR INSTALLING ATTACHMENTS.
Cage
Cage
Screw
Blower Nozzle
Extension
Blower Nozzle
Peg
Groove
Shoulder
Strap
Adjustment
Velcro
Strap
Mulch Collection Bag
Fig. 7
Fig. 8
Cage Screw
Vacuum Nozzle
Vacuum Nozzle
Extension
Peg
Groove
Peg
Peg
Cage
Peg
Groove
Groove
Groove
Mulch Collection
Bag Adapter
