MTS - GS16 + CS20 – RTK Rover Wizard: NYSDOT – NYSNet RTN v1.2
MTS – November 2017 8/11

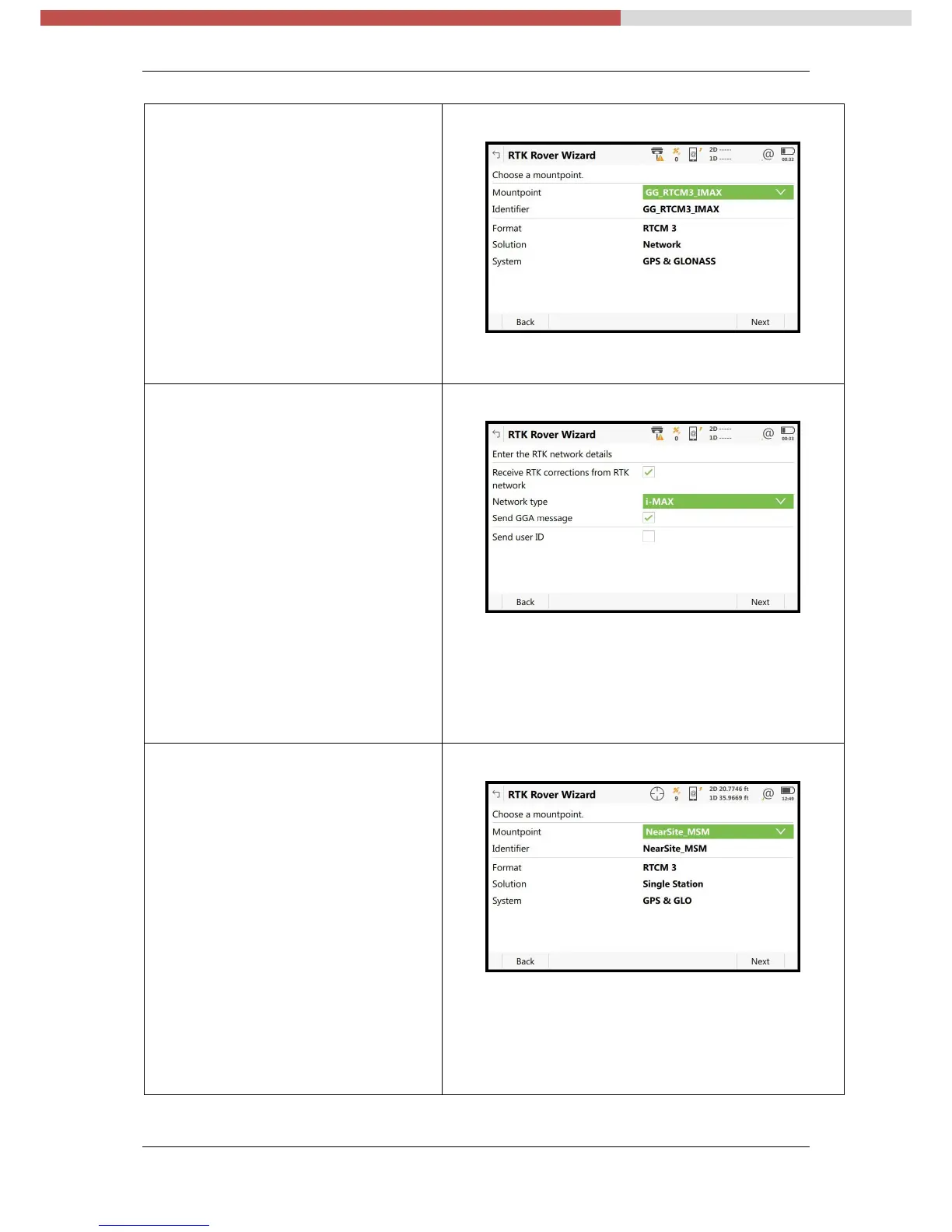

Step 20- (Other mountpoint options)
From the RTK Rover Wizard
Choose a mountpoint
From the Mountpoint drop-down
menu, Browse the list, select a
Mountpoint, The Identifier, Format,
Solution and System details, describe
the Mountpoints, or RTK Data Product.
Select F6 Next
Step 21-
From the RTK Rover Wizard
Enter the RTK network details
Receive RTK Corrections from RTK
[√ ]
network
Network type [ i-MAX ]
If you selected a i-MAX Mountpoint,
You MUST select/match the Network
type: [ i-MAX ]
Select F6 Next
The Network type i-MAX = Individual MAX Network
RTK Corrections from Multiple Network RTK Base
Stations, based on the RTK Rover’s position.
The Network RTK Server computes these i-MAX RTK
Corrections, sends them to the Network RTK Rover.
Step 22- (Other mountpoint options)
From the RTK Rover Wizard
Choose a mountpoint
From the Mountpoint drop-down
menu, Browse the list, select a
Mountpoint, The Identifier, Format,
Solution and System details, describe
the Mountpoints, or RTK Data Product.
Select F6 Next
The Network type Nearest MSM = Single Baseline
RTK; MSM = Multiple Satellite Measurements,
Corrections from the Closest Network RTK Base,
Based on the RTK Rover’s position.

Leica CS20 Specifications

General

Type	Field Controller
Operating System	Microsoft Windows Embedded Handheld 6.5
Memory	1 GB RAM
Connectivity	Bluetooth
Camera	5 MP, autofocus
Interfaces	USB
GNSS	GPS/GLONASS
Expansion Slot	microSD card slot
Protection Rating	IP67
Operating Temperature	-30 °C to +60 °C
Processor	1.0 GHz dual-core ARM Cortex-A9
