Leister CSS - Information and CFG Menu; CFG Menu Parameter Configuration

18
18

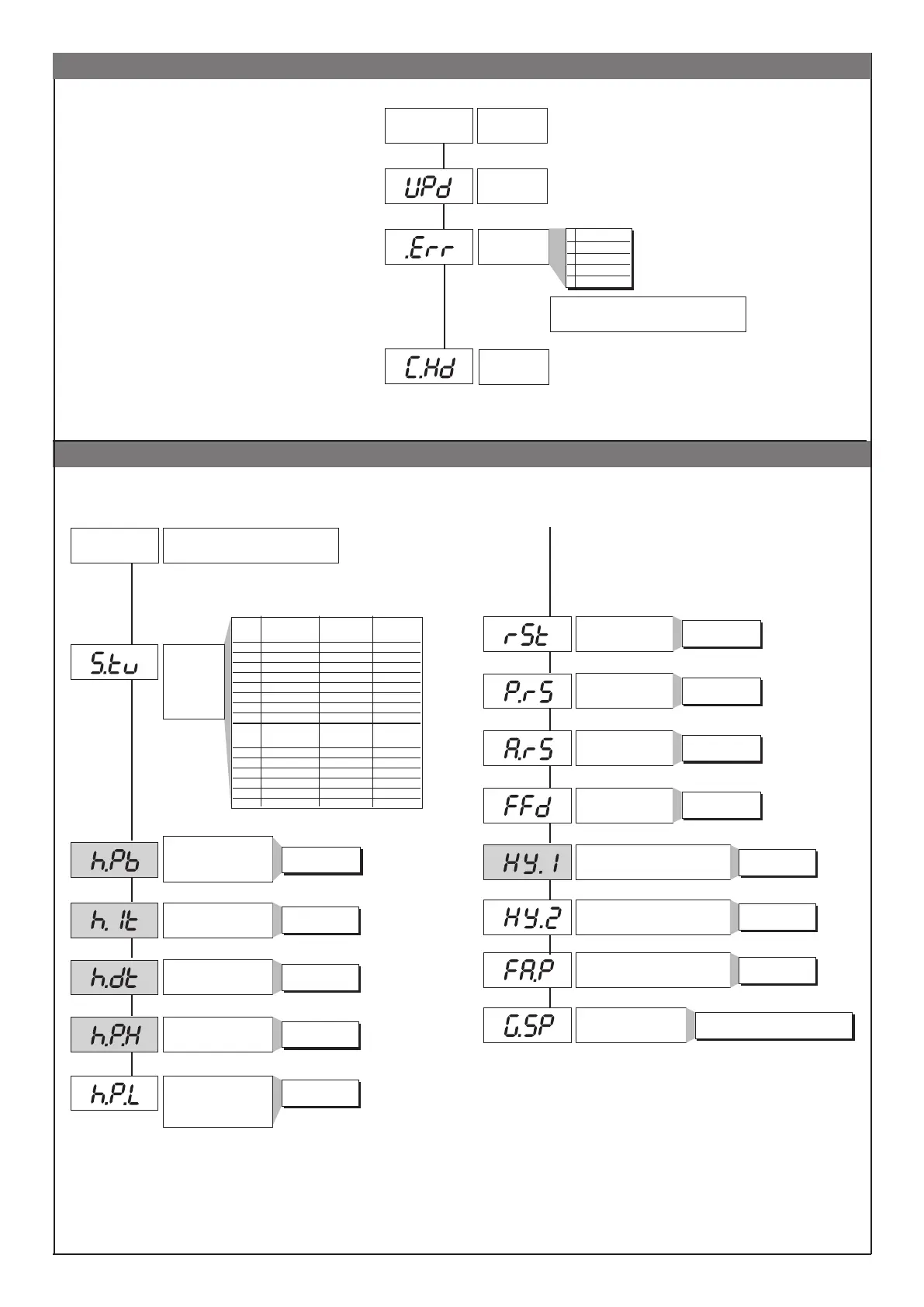

CFG menu
Proportional band for heating
or hysteresis in regulation
ON/OFF
Integral time for heating
Derivative time for heating
Maximum power limit for
heating
Manual reset
Power output in fault condition
(when probe is faulty)
-999 ... 999
scale points
0 ... 999.9% v.Ew.
0.00 ... 99.99 min
0.00 ... 99.99 min
0.0 ... 100.0%
Minimum power limit
for heating
(not available for double heat/
cool action)
0.0 ... 100.0%
-100.0 ... 100.0%
ON / OFF
Set gradient
(see applicable note)
0.0...999.9 digit/min.
(digit / sec see SP.r)
Antireset
Feedforward
0 ... 9999
scale points
-100.0 ... 100.0%
Reset power -100.0 ... 100.0%
CFG
Regelparameter
Enabling
self-tuning,
autotuning,
softstart
S.tun Continuous Sel-ftuning Softstart
autotuning
0 NO NO NO
1 YES NO NO
2 NO YES NO
3 YES YES NO
4 NO NO YES
5 YES NO YES
6 - - -
7 - - -
S.tun Autotuning Selftuning Softstart
one shot
8* WAIT NO NO
9 GO NO NO
10* WAIT YES NO
11 GO YES NO
12* WAIT NO YES
13 GO NO YES
Default: 0
Default: 30
Default: 0.2
Default: 0.01
Default: 100
Default: 0
Default: 0
Default: 0
Default: 0
Default: 0
Default: 0
Alarm 2 hysteresis
Default: -1
Alarm 1 hysteresis
± 999
scale points
± 999
scale points
Default: -1
Default: 0
Information menu
INF
Software-Version
Error display
Configuration hrd
+8 error OUT2 card recognition
+16 error OUT3 card recognition
Informations-
menu
0 No Error
1 Lo
2 Hi
3 ERR
4 SBR
Default: 3.10
Default: 4
Default: 213
