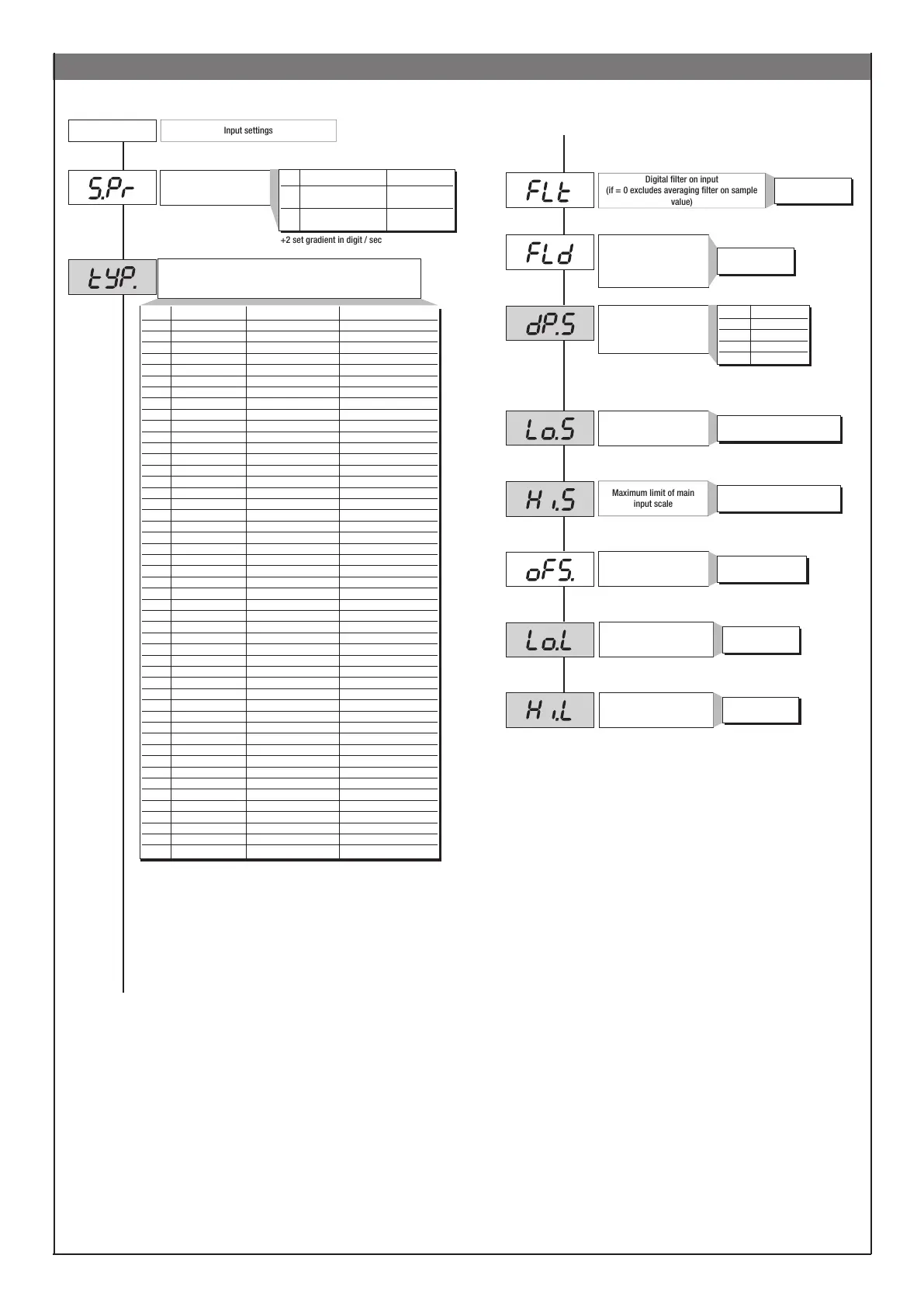

Input settings
+2 set gradient in digit / sec
Digital filter on input
(if = 0 excludes averaging filter on sample
value)
(*) not available for TC, RTD, PTC
and NTC scales
Digital filter on input display
Decimal point position for
input scale
Minimum limit of main input
scale
Maximum limit of main
input scale
Oset correction
of main input
0.0 ... 20.0 s
0 ... 9.9
scale points
dP_S Format
0 xxxx
1 xxx.x
2 xx.xx (*)
3 x.xxx (*)
min...max input range selected
in tyP
min...max input range selected
in tyP
-999 ... 999
scale points
Def. remote setpoint
Val. Type of remote setpoint Absolute Relative
0 Digital Absolute
(from serial line)
1 Digital Reletive to
(from serial line) local setpoint
Type Probe type without decimal point with decimal point
Sensore: TC
0 TC J °C 0/1000 0.0/999.9
1 TC J °F 32/1832 32.0/999.9
2 TC K °C 0/1300 0.0/999.9
3 TC K °F 32/2372 32.0/999.9
4 TC R °C 0/1750 0.0/999.9
5 TC R °F 32/3182 32.0/999.9
6 TC S °C 0/1750 0.0/999.9
7 TC S ° F 32/3182 32.0/999.9
8 TC T °C -200/400 -199.9/400.0
9 TC T °F -328/752 -199.9/752.0
28 TC CUSTOM CUSTOM
29 TC CUSTOM CUSTOM
30 PT100 °C -200/850 -199.9/850.0
31 PT100 °F -328/156 2 -199.9/999.9
32 JPT100 °C -200/600 -199.9/600.0
33 JPT100 °F -328/1112 -199.9/999.9
34 PTC °C -55/120 -55.0/120.0
35 PTC °F -67/248 -67.0/248.0
36 NTC °C -10/70 -10.0/70.0
37 NTC °F 14/158 14.0/158.0
38 0...60 mV -1999/9999 -199.9/999.9
39 0...60 mV Custom scale Custom scale
40 12...60 mV -1999/9999 -199.9/999.9
41 12...60 mV Custom scale Custom scale
42 0...20 mA -1999/9999 -199.9/999.9
43 0...20 mA Custom scale Custom scale
44 4...20 mA -1999/9999 -199.9/999.9
45 4...20 mA Custom scale Custom scale
46 0...10 V -1999/9999 -199.9/999.9
47 0...10 V Custom scale Custom scale
48 2...10 V -1999/9999 -199.9/999.9
49 2...10 V Custom scale Custom scale
50 0...5 V -1999/9999 -199.9/999.9
51 0...5 V Custom scale Custom scale
52 1...5 V -1999/9999 -199.9/999.9
53 1...5 V Custom scale Custom scale
54 0...1 V -1999/9999 -199.9/999.9
55 0...1 V Custom scale Custom scale
56 200mv..1V -1999/9999 -199.9/999.9
57 200mv..1V Custom scale Custom scale
58 Cust10 V-20mA -1999/9999 -199.9/999.9
59 Cust10 V-20mA Custom scale Custom scale
60 Cust 60mV -1999/9999 -199.9/999.9
61 Cust 60mV Custom scale Custom scale
62 PT100-JPT CUSTOM CUSTOM
63 PTC CUSTOM CUSTOM
64 NTC CUSTOM CUSTOM
Probe type, signal, enable custom linearization,
and main input scale
For custom linearization:
- LO signal is generated with variable below Lo.S or at minimum calibration value
- HI signal is generated with variable above Lo.S or at maximum calibration value
Lower limit for setting SP and
absolute alarms
Lo.S ... Hi.S
Upper limit for setting SP and
absolute alarms
Lo.S ... Hi.S
Default: 0
Default: 2
Default: 0.1
Default: 0.5
Default: 0
Default: 0
Default: 1300
Default: 0
Default: 0
Default: 650
