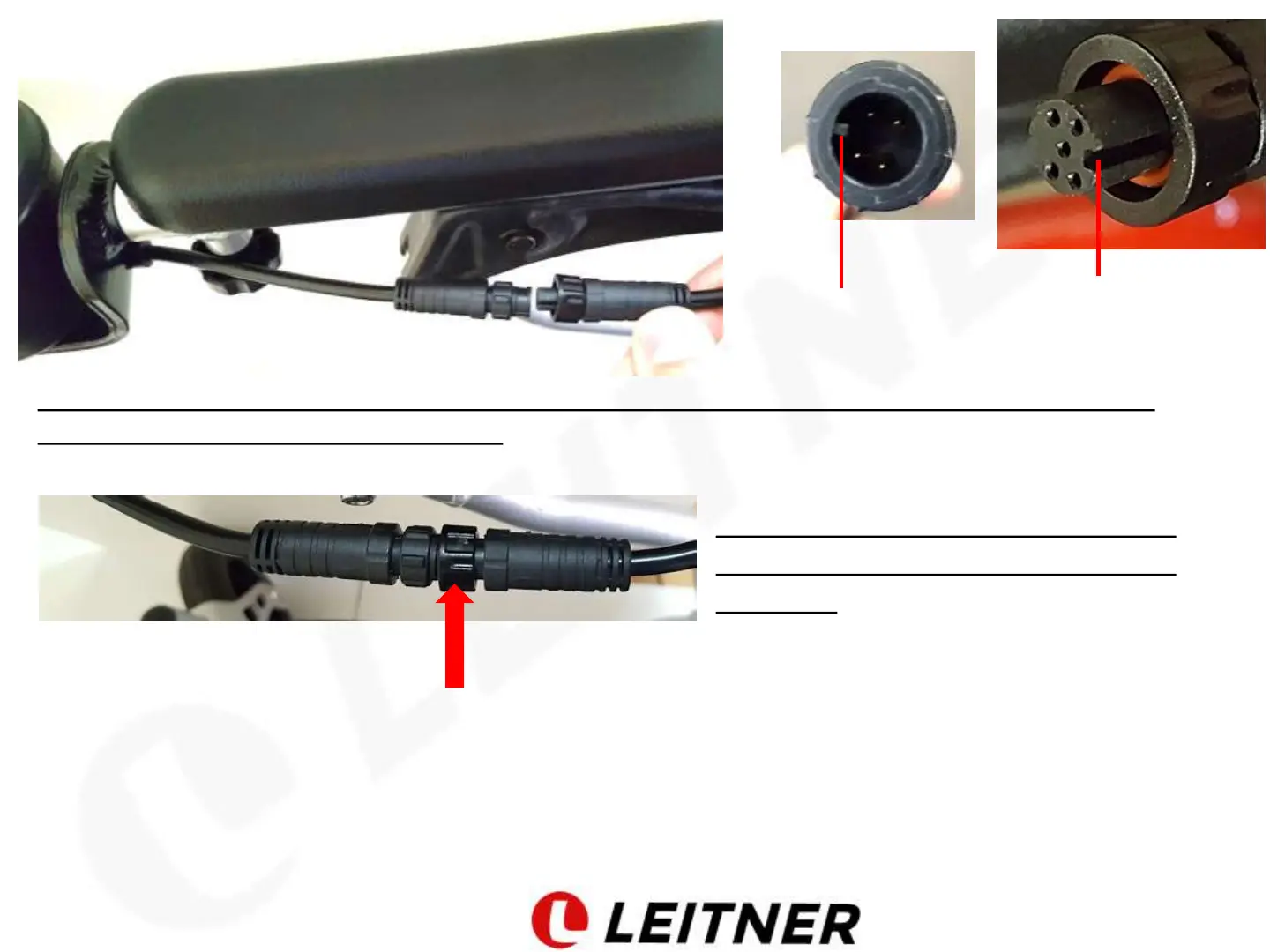

Carefully connect the black plastic pin on the joystick cable with the groove on the cable on the
wheelchair armrest. Do not use force! Do not damage the little metal pins inside the joystick
cable! If they are bent by accident, carefully bend them back with a forceps.
After connecting the wires, move the barrel (arrow) to the centre and turn it in the
direction of the arrow. This will lock the two cables in place and prevent them from
disconnecting by accident. Adjust the wire slack so that the wire is not in the way
while operating the wheelchair.
Small black
plastic pin
groove
Damaging metal pins during
installation is not covered by
warranty.
