WELGER RP 202 • RP 220 • RP 302 • RP 320 21
Clean the coupling parts of the hydraulic pipes with a clean cloth
and plug in to the sockets at the tractor.
Check hoses and pipelines regularly for damage,
deterioration and safe functioning. Defective parts are to be
replaced immediately by original WELGER replacement parts.
Hoses and hose lines are subject to natural deterioration even
under normal operating loads. As a result, the useful service life
is limited.
According to the "Safety Regulations for Hydraulic Hoses", a
service life of six years should not be exceeded!
4.4. Electrical system
4.4.1. Lighting
To connect the lighting system, insert the 7-pin plug into the
corresponding socket on the tractor. Before travelling on the
road check that the lighting system functions correctly (also in
daylight).
4.4.2. "Balercontrol" Electronic Controller
The control panel is provided with a plate which should be
fastened within easy reach of the tractor driver.
The control panel of the “Balercontrol” control system is also
provided with a magnetic plate on the rear and can be attached
to a metallic surface within easy reach of the driver.
Once the plug is inserted in the socket, power is supplied to the
unit and a short sequence of beeps is heard.
Note: When connecting the “Balercontrol” electronic controller,
a power socket conforming to DIN 9680 must be fitted on the
tractor. (Supplied with the baler.) The fuse rating must be 16 A.
The socket with connecting cable and fuse can be supplied
under WELGER part No. 0972.19.27.00 as a retrofit part for an
additional tractor.

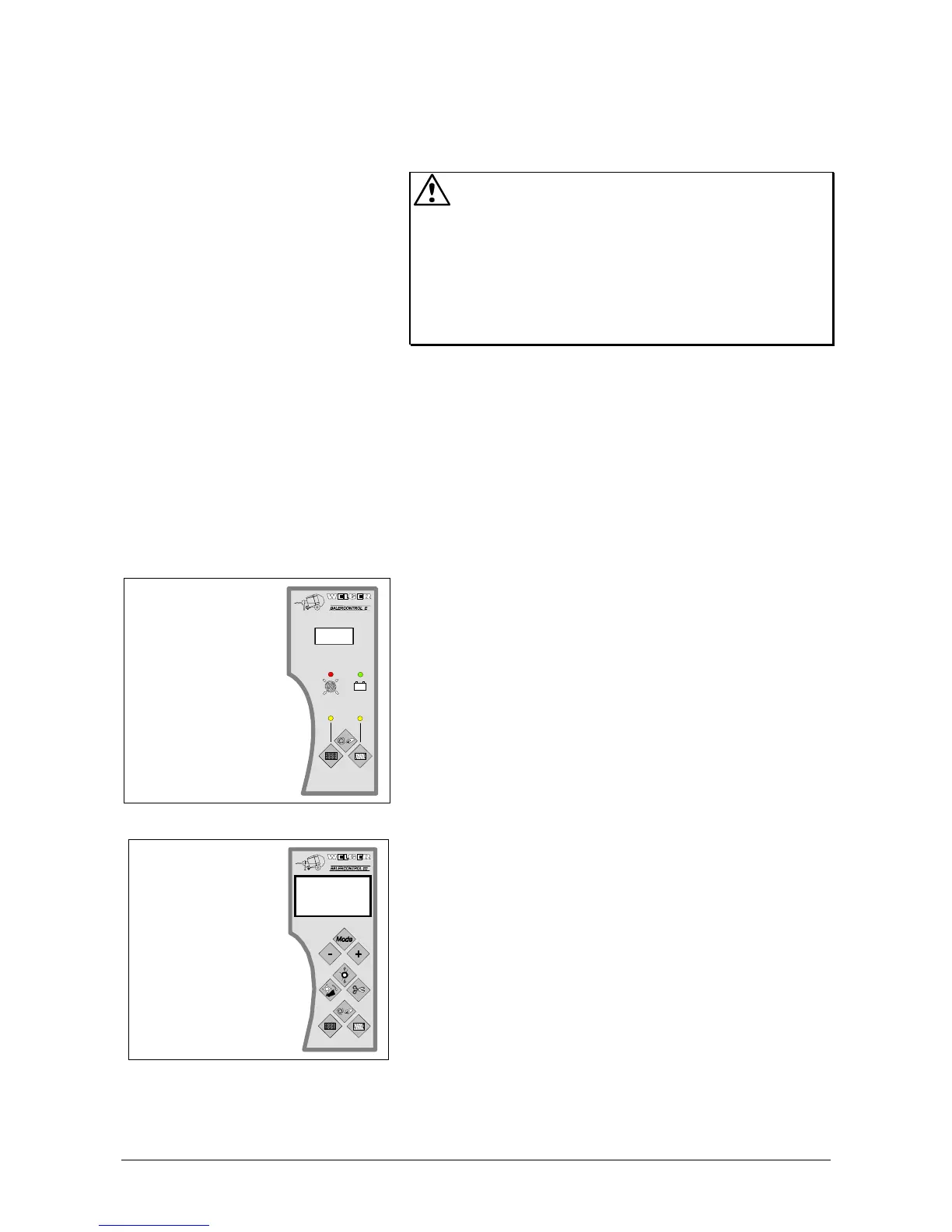

Balercontrol E
RP 202
RP 302
RP 220 FARMER
RP 320 FARMER
1742-37
12 V
fig. 24
Balercontrol III
RP 220 • RP 320
MASTER
PROFI
SPEEDMASTER
SPEEDPROFI
1742-38
fig. 25
