SPX LIVE & MEDIA connection panel
The connection panels of the SPX LIVE & MEDIA models in the passive version have two different types
of connectors.

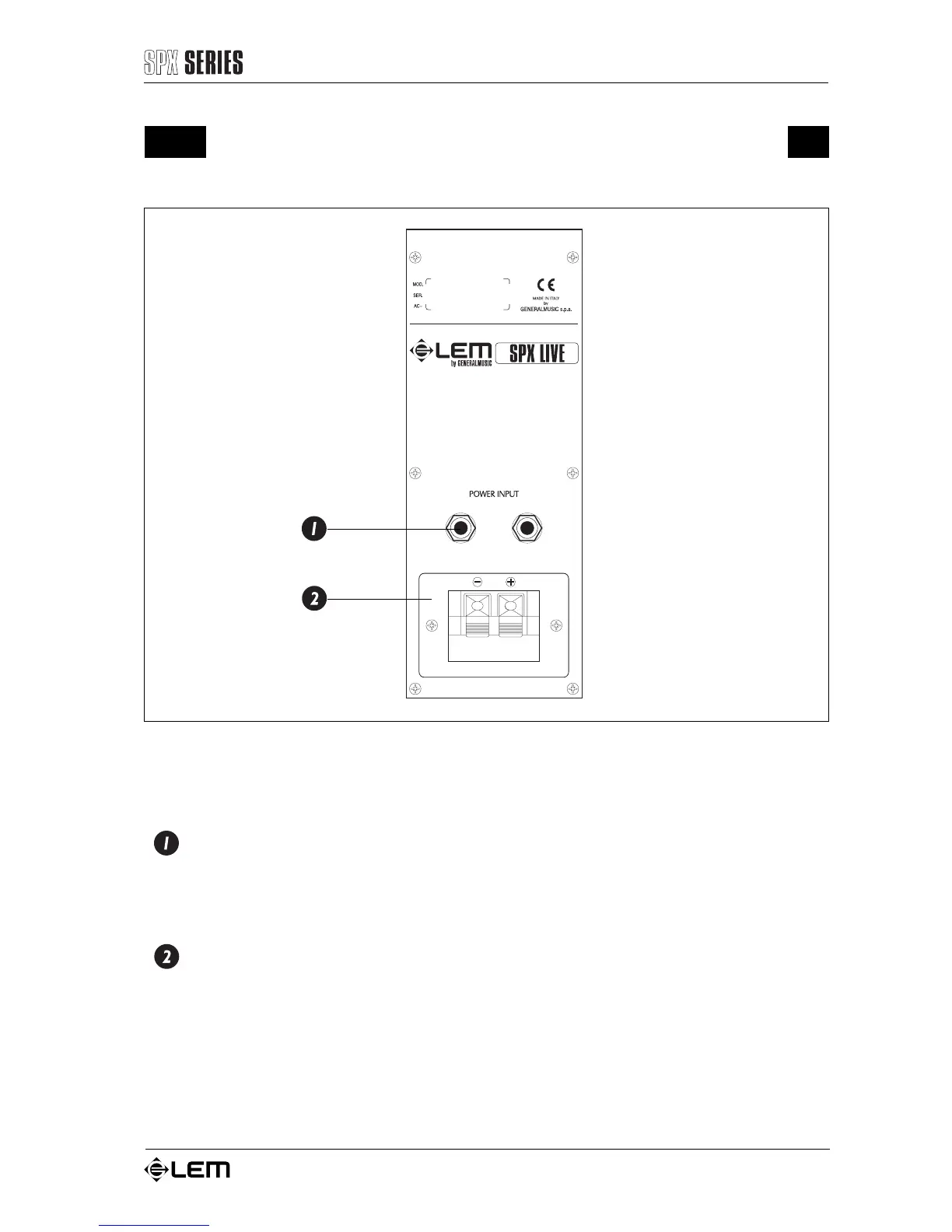

JACK CONNECTIONS
The jack connectors are normally used with amplifiers and amplified mixers which have a jack power
output. The two jack connectors are connected in parallel to send the power towards a second
loudspeaker.
PUSH TERMINAL CONNECTIONS
Provide fast connection and easy phase distinction. The type of cable to use is colour coded: red for the
(+) and black for (-)(see ➪ connection examples).
