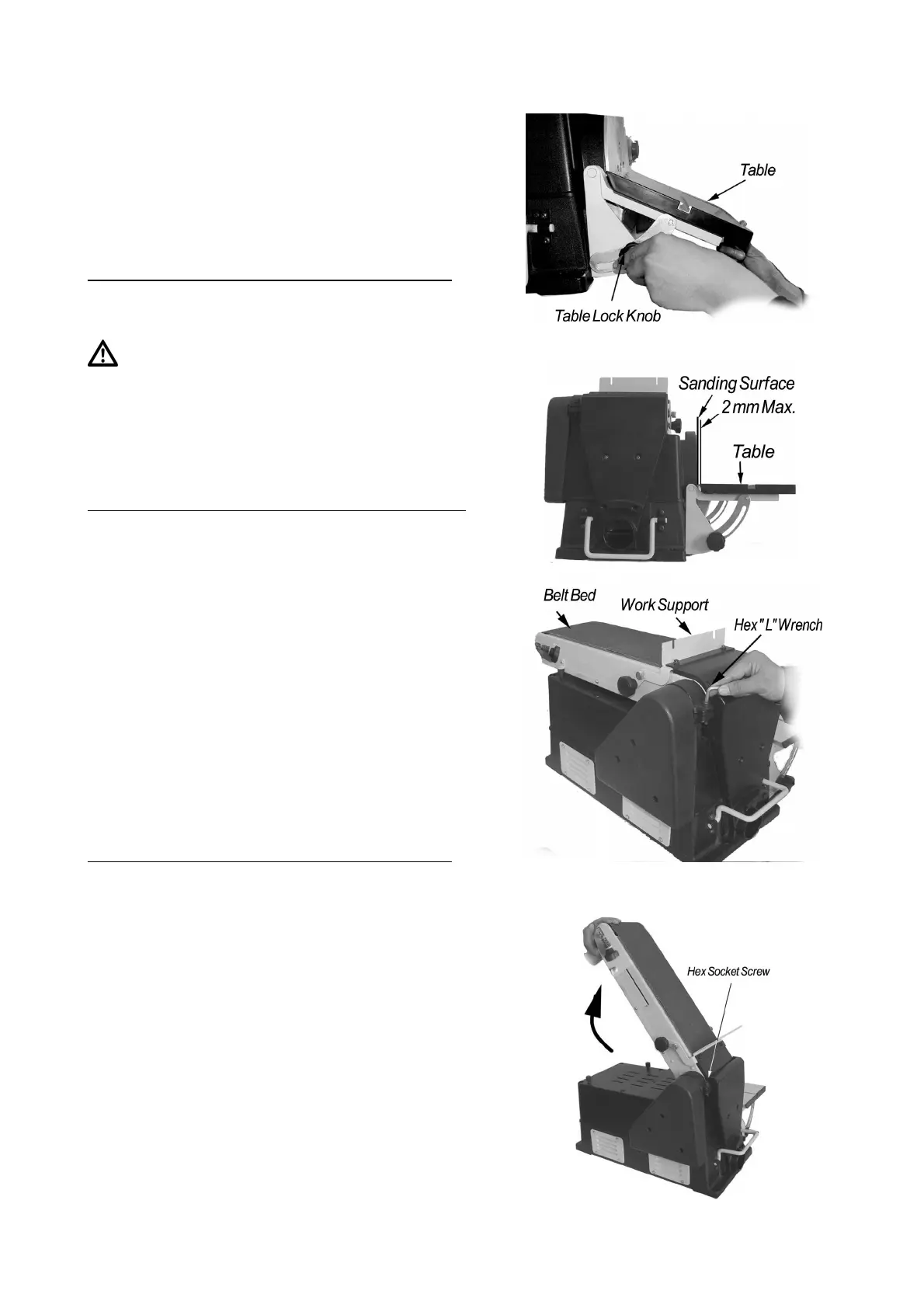

BEVEL SANDING
The work table can be tilted from 0
o
to 45
o
for bevel
sanding. Loosen the table lock knob and tilt the worktable
to desired angle as shown. Retighten table lock knob.
Warning:
To avoid trapping the work or fingers between the table
and sanding surface, the table should repositioned on
the table support to retain a maximum of 2mm distance
between sanding surface and table.
POSITIONING BELT BED
A bed locking hex socket head screw locks the belt bed in a
vertical or horizontal position.
To adjust vertical position:
1. Remove the work support.
2. Loosen the hex socket head locking screw using a 6 mm
hex wrench.
3. Position belt bed vertically as shown and tighten the hex
socket head locking screw.
14
