Introduction

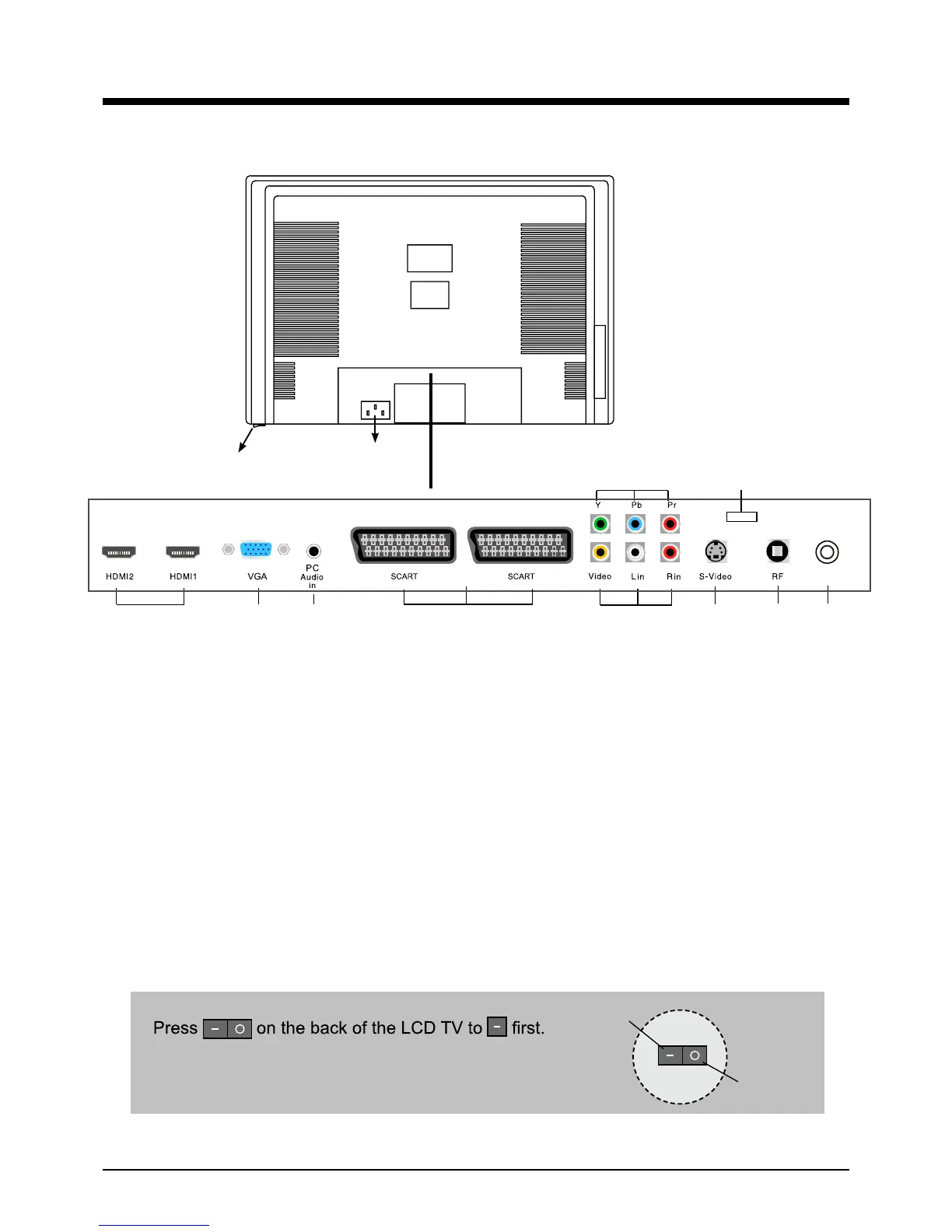

2. Rear View
AC POWER IN
SWITCH
1. HDMI1/2/: Connect it to the HDMI of DVD or other equipment.
2. VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
3. PC AUDIO: Connect it to the audio output terminal of PC.
4. SCART1/2˖ Connect them to the composite terminal of DVD.
5. YPbPr: Connect them to the video output terminal of DVD.(used in YPbPr source)
6. VIDEO: Connect it to video output terminal of DVD.
L/R in: Connect them to the audio output terminal of DVD(Shared with VIDEO/ S-VIDEO/
YPbPr).
7. S-VIDEO: Connect it to S-VIDEO output terminal of DVD.
8. RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
9.
10. USB: Software update.
AC POWER IN: Connect to an earth 100-240V,50-60Hz AC outlet with the Power Cable.
COAX: Output to Audio amplifier.
11.
12. SWITCH: Switch on or off the power suply.
16
510
11
12
7
8423 9
- To turn on the LCD TV
- Be sure to turn off the power and unplug both units
from the wall outlet before making any connections.
Power on
Power off
COAX
5
12
USB-UPDATE
