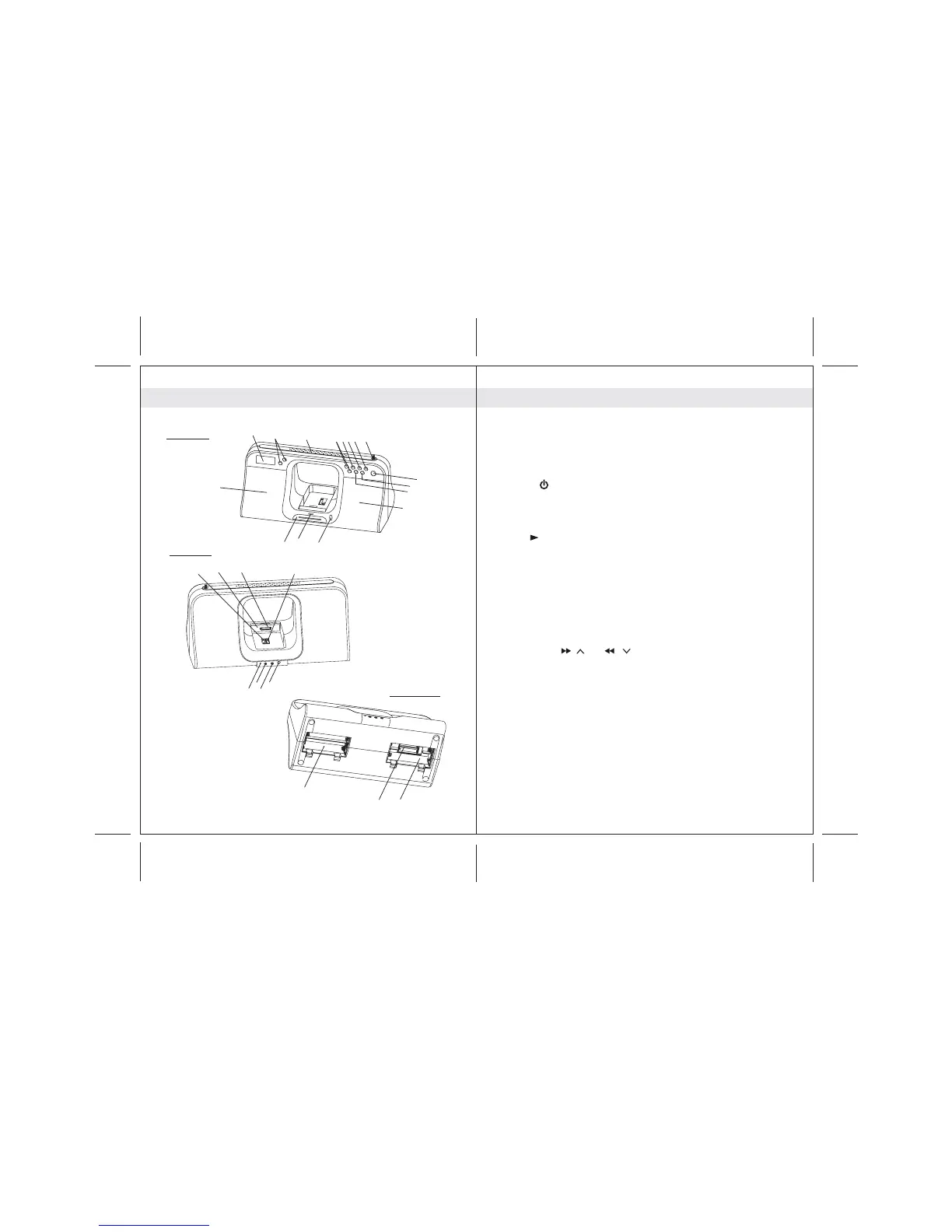

Description of Parts Description of Parts
6
7
EngEng
1. Movable iPod docking station
2. iPod docking connector
3. iPod tilt angle slider
4. iPod tilt angle lever
5.POWER button ----- To turn the unit on and off
6. Power Status indicator: LED
7. LCD display
8. Handle
9. SLEEP button ---- Select the time duration of the sleep timer
10. iPod / MEM button ---- iPod Play / Pause function ;
Save radio preset station
11. ALARM button ---- Turn the alarm on and off ; Set alarm time and
alarm source
12. VOLUME +/- button ----- Adjust volume level up or down
13. MODE / EQ button ---- In power off mode : Select clock setting and
12/24 hour format; Select radio broadcast system
In power on mode: Select EQ preset (CLASSIC/
ROCK/POP), Loudness and Treble/Bass setting
14. FM rod antenna
15. PRESET button ---- Select preset radio station
16. TUNING/CH / and buttons
In radio mode: Tune the radio frequency up/down
In iPod mode : Skip tracks Forward / Backward;
perform high-speed search
17. FUNC button ---- Select FM stereo / FM mono / iPod / AUX modes
18. SNOOZE / LIGHT -----Activate the snooze function ; turn LCD backlight
DIM / BRIGHT / OFF
19. Speakers
20. DC-in jack -----For the connection of external DC power supply
21. Stereo Phones jack
22. AUX jack ---- Auxiliary audio signal input
23. RESET button ---- For resetting the unit
24. Main battery compartment A
25. Main battery compartment B
26. Inner Clock battery compartment
JAZZ/
/ ----
Main UnitMain Unit
Front View
16
19
91110 14
5
17
15
12
7
8
19
18
6
13
Rear View
2
1
4
3
23 21
22 20
Bottom View
25
26
24
