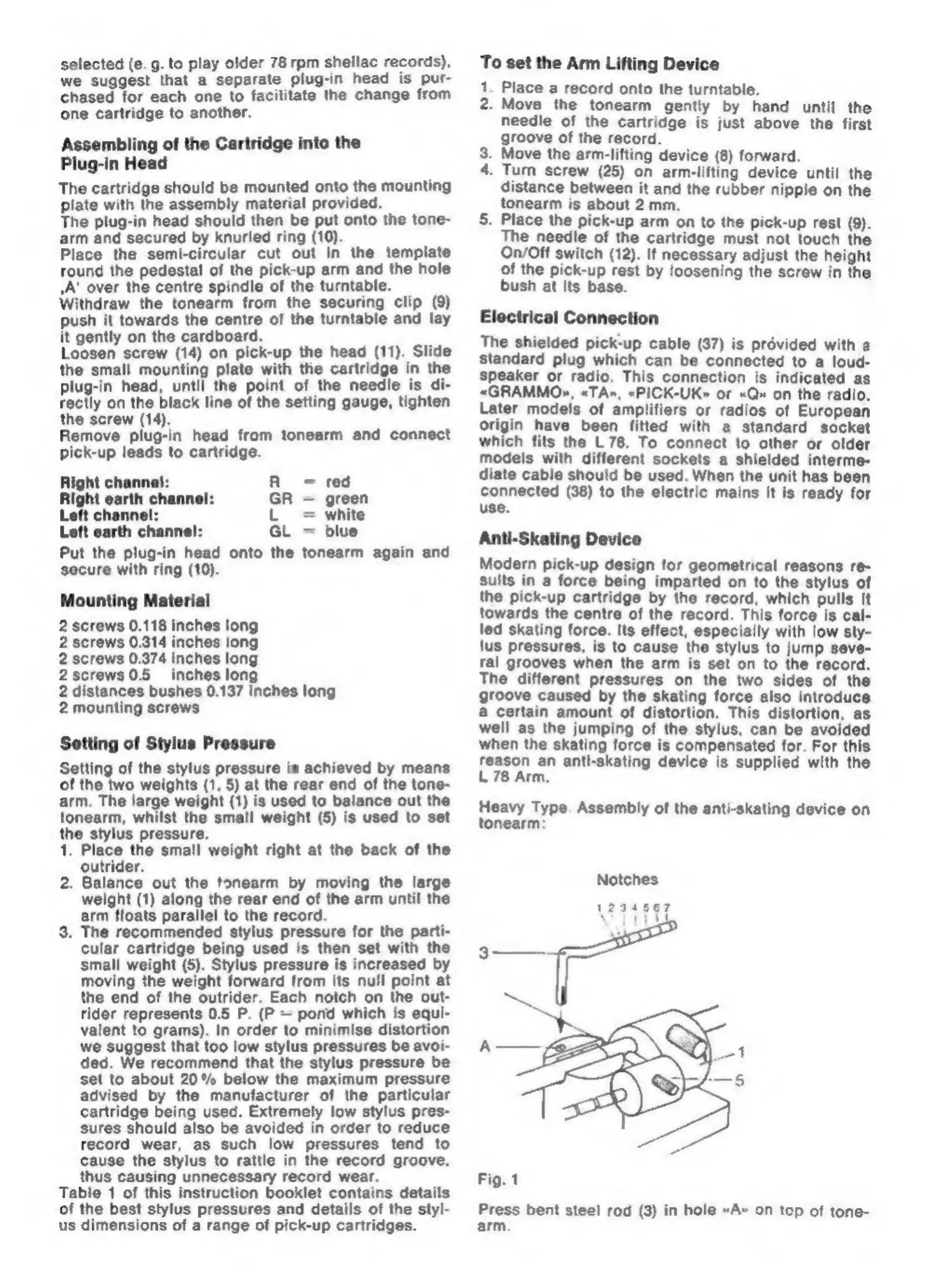

selected
(e.g.
to
play
older
78
rpm
shellac
records),
we
suggest
that
a
separate
plug-in
head
is
pur-
chased
for
each
one
to
facilitate
the
change
from
one
cartridge
to
another.
Assembling
of
the
Cartridge
into
the
Plug-in
Head
The
cartridge
should
be
mounted
onto
the
mounting
plate
with
the
assembly
material
provided.
The
plug-in
head
should
then
be
put
onto
the
tone-
arm
and
secured
by
knurled
ring
(10).
Place
the
semi-circular
cut
out
in
the
template
round
the
pedestal
of
the
pick-up
arm
and
the
hole
,A'
over
the
centre
spindle
of
the
turntable.
Withdraw
the
tonearm
from
the
securing
clip
(9)
push
it
towards
the
centre
of
the
turntable
and
lay
it
gently
on
the
cardboard.
Loosen
screw
(14)
on
pick-up
the
head
(11).
Slide
the
small
mounting
plate
with
the
cartridge
in
the
plug-in
head,
until
the
point
of
the
needle
is
di-
rectly
on
the
black
line
of
the
setting
gauge,
tighten
the
screw
(14).
Remove
plug-in
head
from
tonearm
and
connect
pick-up
leads
to
cartridge.
Right
channel:
R=
red
Right
earth
channel:
GR
=
green
Left
channel:
L
white
Left
earth
channel:
GL
=
blue
Put
the
plug-in
head
onto
the
tonearm
again
and
secure
with
ring
(10).
Mounting
Material
2
screws
0.118
inches
long
2
screws
0.314
inches
tong
2
screws
0.374
inches
long
2screws0.5
inches
long
2
distances
bushes
0.137
Inches
long
2
mounting
screws
Setting
of
Stylus
Pressure
Setting
of
the
stylus
pressure
is
achieved
by
means
of
the
two
weights
(1,
5)
at
the
rear
end
of
the
tone-
arm.
The
large
weight
(1)
is
used
to
balance
out
the
tonearm,
whilst
the
small
weight
(5)
is
used
to
set
the
stylus
pressure.
1.
Place
the
small
weight
right
at
the
back
of
the
outrider.
2.
Balance
out
the
tonearm
by
moving
the
large
weight
(1)
along
the
rear
end
of
the
arm
until
the
arm
floats
parallel
to
the
record.
3.
The
recommended
stylus
pressure
for
the
parti-
cular
cartridge
being
used
is
then
set
with
the
small
weight
(5).
Stylus
pressure
is
increased
by
moving
the
weight
forward
from
its
null
point
at
the
end
of
the
outrider.
Each
notch
on
the
out-
rider
represents
0.5
P.
(P
=
pond
which
is
equi-
valent
to
grams).
In
order
to
minimise
distortion
we
suggest
that
too
low
stylus
pressures
be
avoi-
ded.
We
recommend
that
the
stylus
pressure
be
set
to
about
20%
below
the
maximum
pressure
advised
by
the
manufacturer
of
the
particular
cartridge
being
used.
Extremely
low
stylus
pres-
sures
should
also
be
avoided
in
order
to
reduce
record
wear,
as
such
low
pressures
tend
to
cause
the
stylus
to
rattle
in
the
record
groove.
thus
causing
unnecessary
record
wear.
Table
1
of
this
instruction
booklet
contains
details
of
the
best
stylus
pressures
and
details
of
the
styl-
us
dimensions
of
a
range
of
pick-up
cartridges.
To
set
the
Arm
Lifting
Device
1.
Place
a
record
onto
the
turntable.
2.
Move
the
tonearm
gently
by
hand
until
the
needle
of
the
cartridge
is
just
above
the
first
groove
of
the
record.
3.
Move
the
arm-lifting
device
(8)
forward,
4.
Turn
screw
(25)
on
arm-lifting
device
until
the
distance
between
it
and
the
rubber
nipple
on
the
tonearm
is
about
2mm.
5.
Place
the
pick-up
arm
on
to
the
pick-up
rest
(9).
The
needle
of
the
cartridge
must
not
touch
the
On/Off
switch
(12).
If
necessary
adjust
the
height
of
the
pick-up
rest
by
loosening
the
screw
in
the
bush
at
its
base.
Electrical
Connection
The
shielded
pick-up
cable
(37)
is
provided
with
2
standard
plug
which
can
be
connected
to a
loud-
speaker
or
radio.
This
connection
is
indicated
as
«GRAMMO»,
«TA»,
«PICK-UK»
or
«Q»
on
the
radio.
Later
models
of
amplifiers
or
radios
of
European
origin
have
been
fitted
with
a
standard
socket
which
fits
the
L
78.
To
connect
to
other
or
older
modeis
with
different
sockets
a
shielded
interme-
diate
cable
should
be
used.
When
the
unit
has
been
connected
(38)
to
the
electric
mains
it
is
ready
for
use.
Anti-Skating
Device
Modern
pick-up
design
for
geometrical
reasons
re-
sults
in
a
force
being
imparted
on
to
the
stylus
of
the
pick-up
cartridge
by
the
record,
which
pulls
it
towards
the
centre
of
the
record.
This
force
is
cal-
led
skating
force.
Its
effect,
especially
with
low
sty-
lus
pressures,
is
to
cause
the
stylus
to
jump
seve-
ral
grooves
when
the
arm
is
set
on
to
the
record.
The
different
pressures
on
the
two
sides
of
the
groove
caused
by
the
skating
force
also
introduce
a
certain
amount
of
distortion.
This
distortion,
as
well
as
the
jumping
of
the
stylus,
can
be
avoided
when
the
skating
force
is
compensated
for.
For
this
ear
an
anti-skating
device
is
supplied
with
the
rm.
Heavy
Type.
Assembly
of
the
anti-skating
device
on
tonearm:
3
Fig.
1
Press
bent
steel
rod
(3)
in
hole
«A»
on
top
of
tone-
arm.
