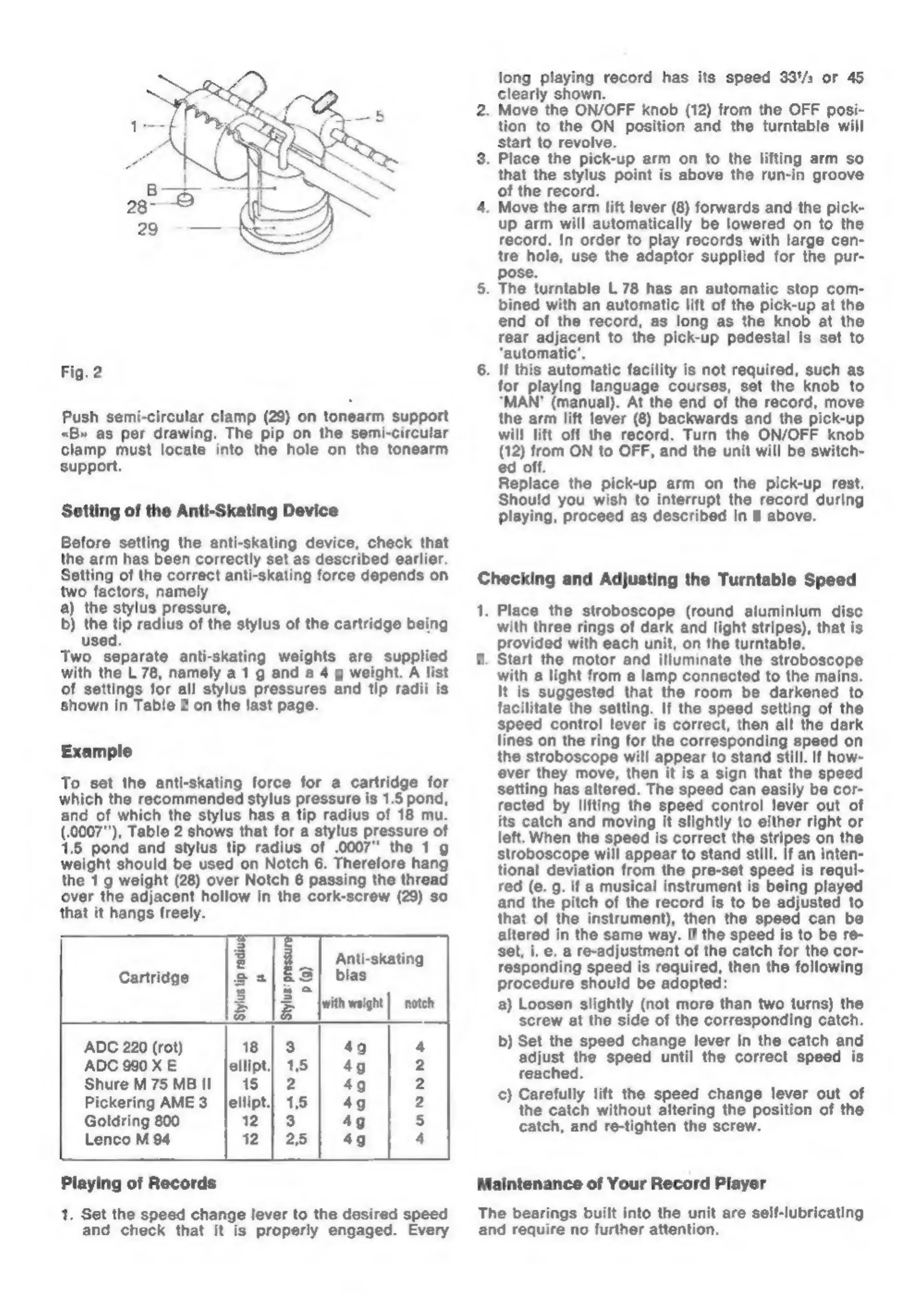

Fig.
2
Push
semi-circular
clamp
(29)
on
tonearm
support
«B»
as
per
drawing.
The
pip
on
the
semi-circular
clamp
must
locate
into
the
hole
on
the
tonearm
support,
Setting
of
the
Anti-Skating
Device
Before
setting
the
anti-skating
device,
check
that
the
arm
has
been
correctly
set
as
described
earlier.
Setting
of
the
correct
anti-skating
force
depends
on
two
factors,
namely
a)
the
stylus
pressure,
b)
the
tip
radius
of
the
stylus
of
the
cartridge
being
used.
Two
separate
anti-skating
weights
are
supplied
with
the
L
78,
namely
a
1
g
and
a
4
g
weight.
A
list
of
settings
for
all
stylus
pressures
and
tip
radii
is
shown
in
Table
2
on
the
last
page.
Example
To
set
the
anti-skating
force
for
a
cartridge
for
which
the
recommended
stylus
pressure
is
1.5
pond,
and
of
which
the
stylus
has
a
tip
radius
of
18
mu.
(.0007"),
Table
2
shows
that
for
a
stylus
pressure
of
1.5
pond
and
stylus
tip
radius
of
.0007"
the
1
g
weight
should
be
used
on
Notch
6.
Therefore
hang
the
1
g
weight
(28)
over
Notch
6
passing
the
thread
over
the
adjacent
hollow
in
the
cork-screw
(29)
so
that
it
hangs
freely.
g
|
Anti-skating
Cartridge
5S]
bias
=
with
weight|
notch
ADC
220
(rot)
13%
|
3
49
4
ADC
990
X
E
ellipt]
1.5]
4g
2
ShureM7SMBII
|
15
|
2
4g
2
Pickering
AME3
|ellipt|
1.5}
49
2
Goldring
800
12/3
49
5
Lenco
M94
12/25]
49
4
Playing
of
Records
1.
Set
the
speed
change
lever
to
the
desired
speed
and
check
that
it
is
properly
engaged.
Every
long
playing
record
has
its
speed
33'/;
or
45
clearly
shown.
2.
Move
the
ON/OFF
knob
(12)
from
the
OFF
posi-
tion
to
the
ON
position
and
the
turntable
will
‘start
to
revolve.
3.
Place
the
pick-up
arm
on
to
the
lifting
arm
so
that
the
stylus
point
is
above
the
run-in
groove
of
the
record.
4.
Move
the
arm
lift
lever
(8)
forwards
and
the
pick-
up
arm
will
automatically
be
lowered
on
to
the
record.
In
order
to
play
records
with
large
cen-
tre
hole,
use
the
adaptor
supplied
for
the
pur-
Pose.
5.
The
turntable
L
78
has
an
automatic
stop
com-
bined
with
an
automatic
lift
of
the
pick-up
at
the
end
of
the
record,
as
long
as
the
knob
at
the
rear
adjacent
to
the
pick-up
pedestal
is
set
to
‘automatic’.
6.
If
this
automatic
facility
is
not
required,
such
as
for
playing
language
courses,
set
the
knob
to
‘MAN’
(manual).
At
the
end
of
the
record,
move
the
arm
lift
lever
(8)
backwards
and
the
pick-up
will
lift
off
the
record.
Turn
the
ON/OFF
knob
(12)
from
ON
to
OFF,
and
the
unit
will
be
switch-
ed
off.
Replace
the
pick-up
arm
on
the
pick-up
rest.
Should
you
wish
to
interrupt
the
record
during
playing,
proceed
as
described
in
6
above.
Checking
and
Adjusting
the
Turntable
Speed
1.
Place
the
stroboscope
(round
aluminium
disc
with
three
rings
of
dark
and
light
stripes),
that
is
provided
with
each
unit,
on
the
turntable.
.
Start
the
motor
and
illuminate
the
stroboscope
with
a
light
from
a
lamp
connected
to
the
mains.
It
is
suggested
that
the
room
be
darkened
to
facilitate
the
setting.
If
the
speed
setting
of
the
speed
control
lever
is
correct,
then
all
the
dark
lines
on
the
ring
for
the
corresponding
speed
on
the
stroboscope
will
appear
to
stand
still.
If
how-
ever
they
move,
then
it
is
a
sign
that
the
speed
setting
has
altered.
The
speed
can
easily
be
cor-
rected
by
lifting
the
speed
contro!
lever
out
of
its
catch
and
moving
it
slightly
to
either
right
or
left.
When
the
speed
is
correct
the
stripes
on
the
stroboscope
will
appear
to
stand
still.
If
an
inten-
tional
deviation
from
the
pre-set
speed
is
requi-
red
(e.
g.
if
a
musical
instrument
is
being
played
and
the
pitch
of
the
record
is
to
be
adjusted
to
that
of
the
instrument),
then
the
speed
can
be
altered
in
the
same
way.
If
the
speed
is
to
be
re-
set,
i.
e.
a
re-adjustment
of
the
catch
for
the
cor-
responding
speed
is
required,
then
the
following
procedure
should
be
adopted:
a)
Loosen
slightly
(not
more
than
two
turns)
the
screw
at
the
side
of
the
corresponding
catch.
b)
Set
the
speed
change
lever
in
the
catch
and
adjust
the
speed
until
the
correct
speed
is
reached.
c)
Carefully
lift
the
speed
change
lever
out
of
the
catch
without
altering
the
position
of
the
catch,
and
re-tighten
the
screw.
"
Maintenance
of
Your
Record
Player
The
bearings
built
into
the
unit
are
self-lubricating
and
require
no
further
attention.
