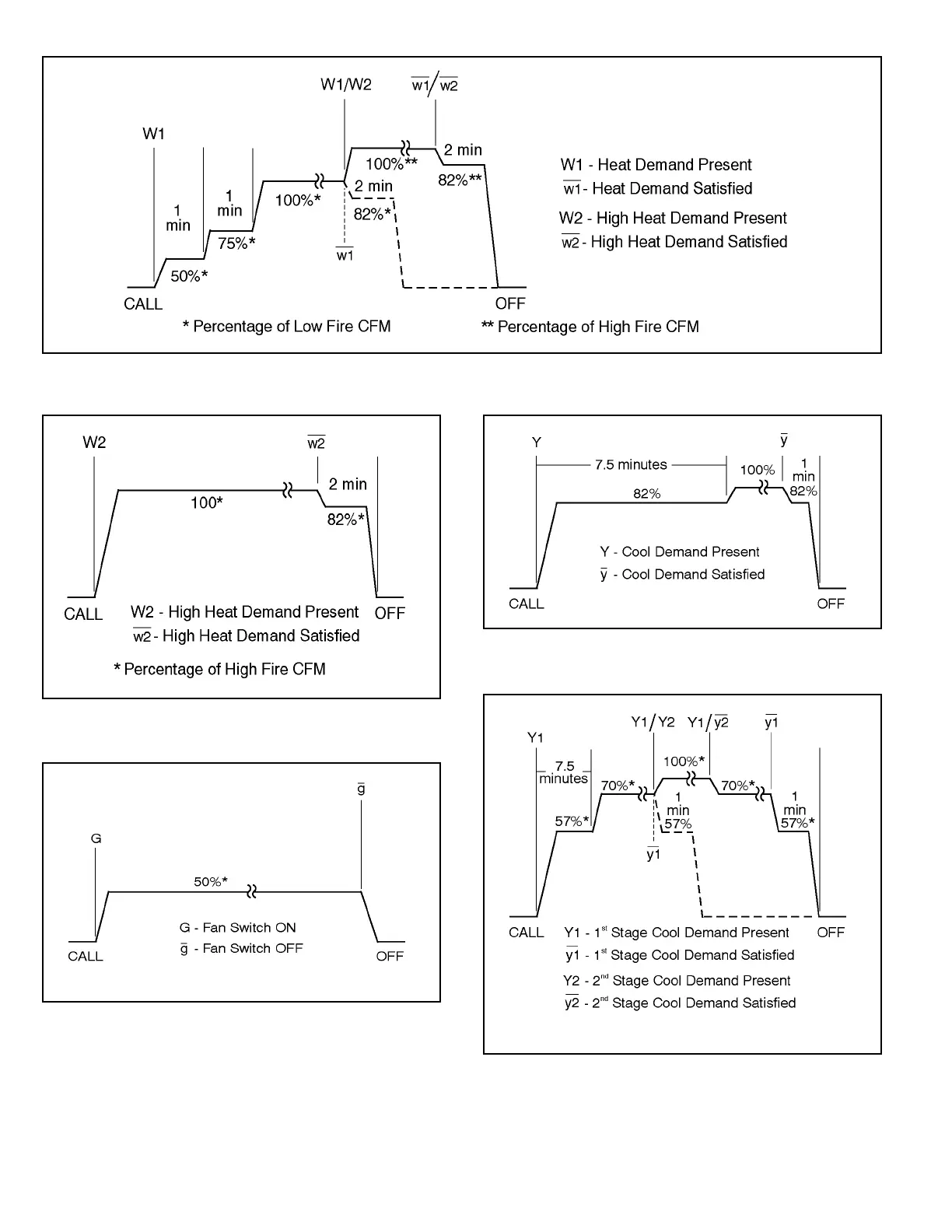

Figure 67. Indoor Blower Operation - 1st Stage-2nd Stage (W1/W2) Heat Call
Figure 68. Indoor Blower Operation - High Heat (W2)
Call
Figure 69. Indoor Blower Operation - Call for Fan
* Percentage of High Stage Cooling
Figure 70. Indoor Blower Operation - Single Stage
Cooling
Figure 71. Indoor Blower Operation - Two Stage
Cooling
* Percentage of High Stage Cooling
