• 12 •
Installation, Operation and Maintenance Manual / ALLEGRA II-IOM-1901-E

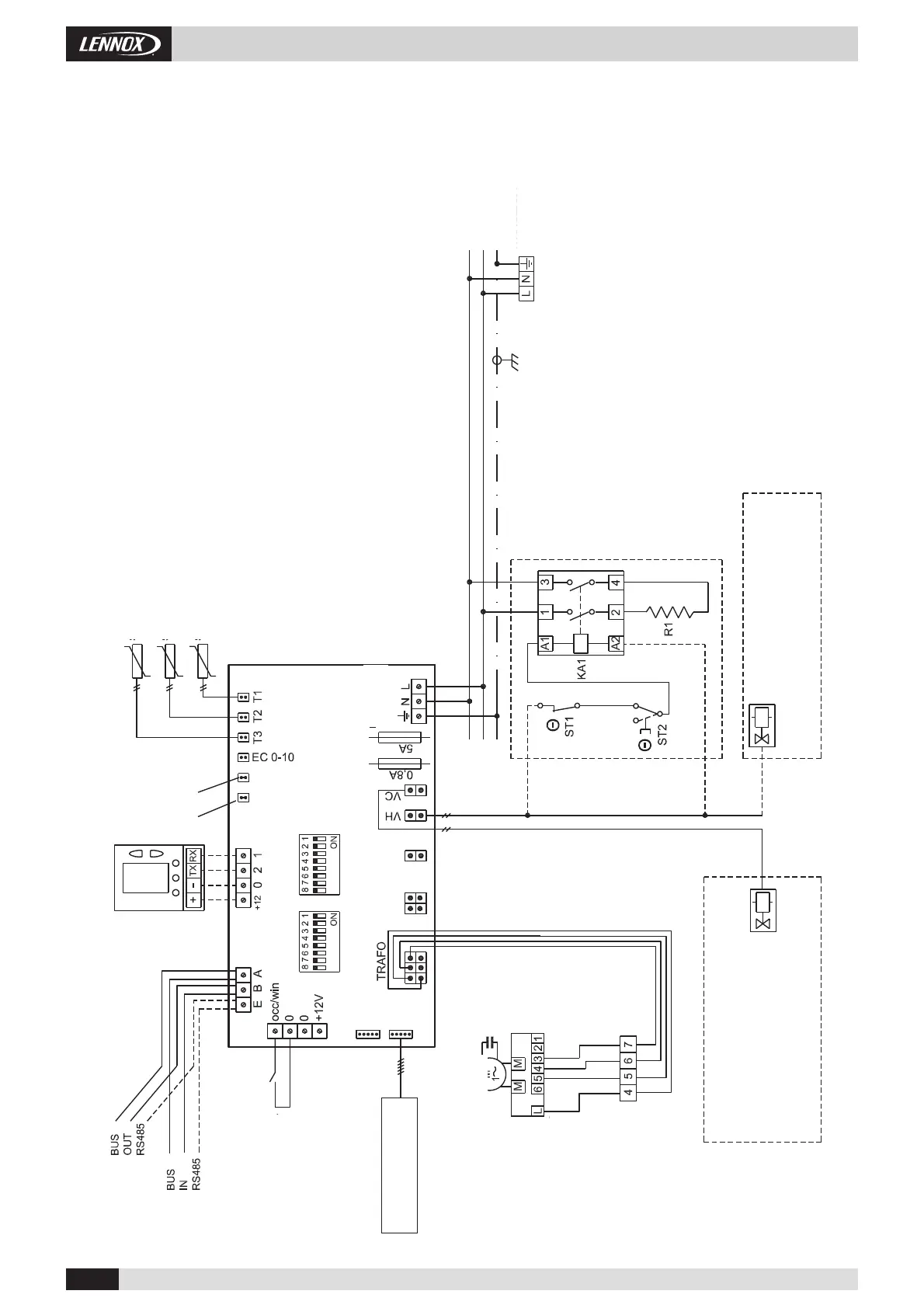

ELECTRICAL DRAWING
3-SPEED MOTOR + REGULATION WITH INFRARED REMOTE CONTROL
Connection board
Water temperature sensor for fan activation
Change over sensor
Ambient temperature sensor
KA 1 = Relay type Finder 22.32
R1 = Electrical heater
ST1 = Safety thermostat with automatic reset
ST2 = Safety thermostat with manual reset
Electrical supply
230Vac/50Hz
Electric coil control
Regulation card
CONFIGURATIONADDRESS
HEATING VALVE (4-pipe system) ON/OFF
230Vac/50Hz
Wall mounted remote control (option)
Occupancy sensor -
windows contact
Remote control receiver
TRAFO
HEATING / COOLING VALVE (2-pipe system)
ON/OFF 250 Vac/50Hz
Or
COOLING VALVE (4-pipe system) ON/OFF
230Vac/50Hz
White
FAN MOTOR
230Vac/50Hz
OR
EC fault
Alarm switch
Jumper
Fuses
PANEL
Blade motor
Receiver
Capacitor
Connection board
Shielded
