> DIAPHRAGM EXPANSION TANK MOUNTED OFF
THE BOILER
> CIRCULATOR ON SUPPLY PIPING PUMPS AWAY
FROM EXPANSION TANK

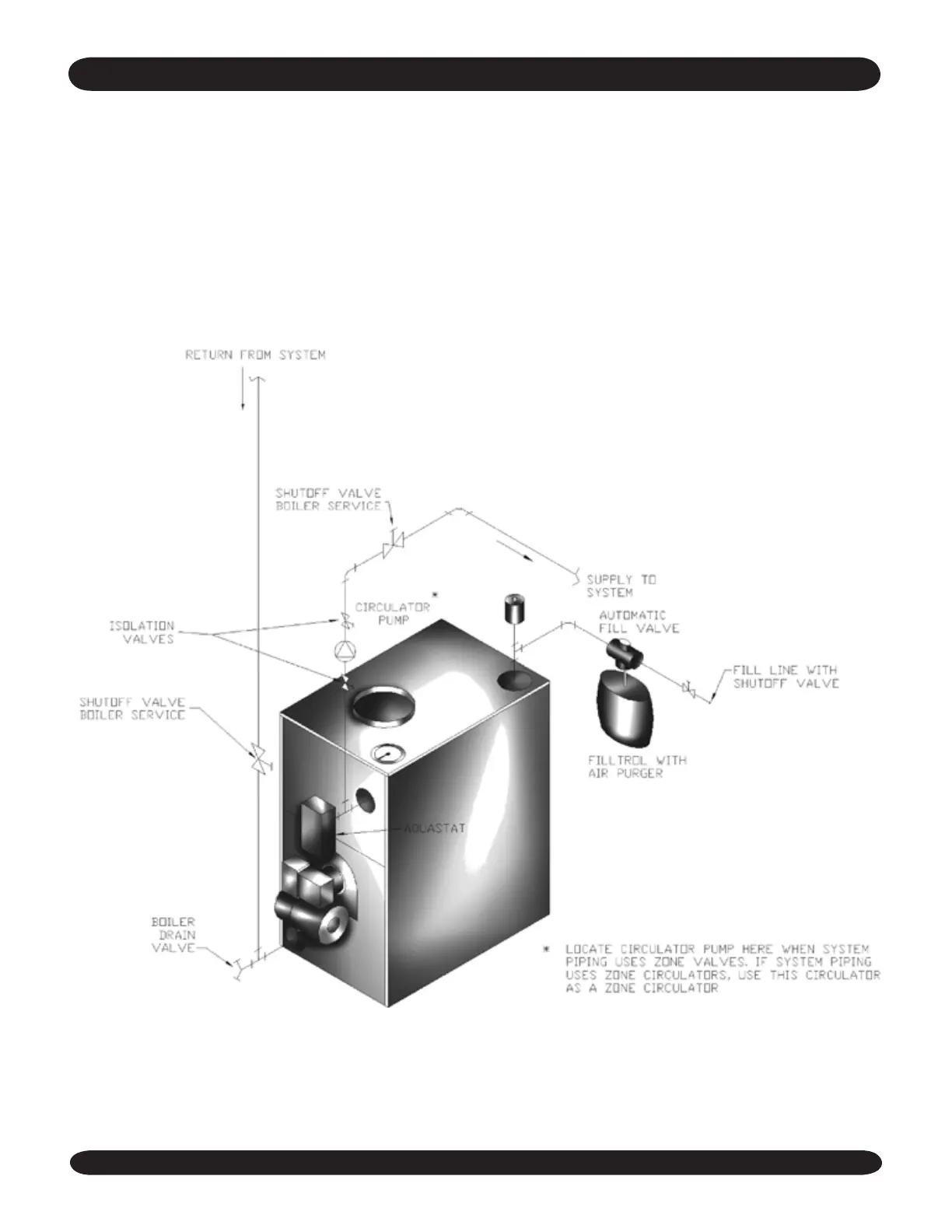

sYsTeM pipiNg arraNgeMeNT alTerNaTe Near BOiler pipiNg
> PER THIS MANUAL, USE OPTION #2 IN “FILL-
ING THE SYSTEM WITH WATER”
> THIS PIPING ARRANGEMENT CAN BE USED
WITH ZONE VALVES OR ZONE
CIRCULATORS
