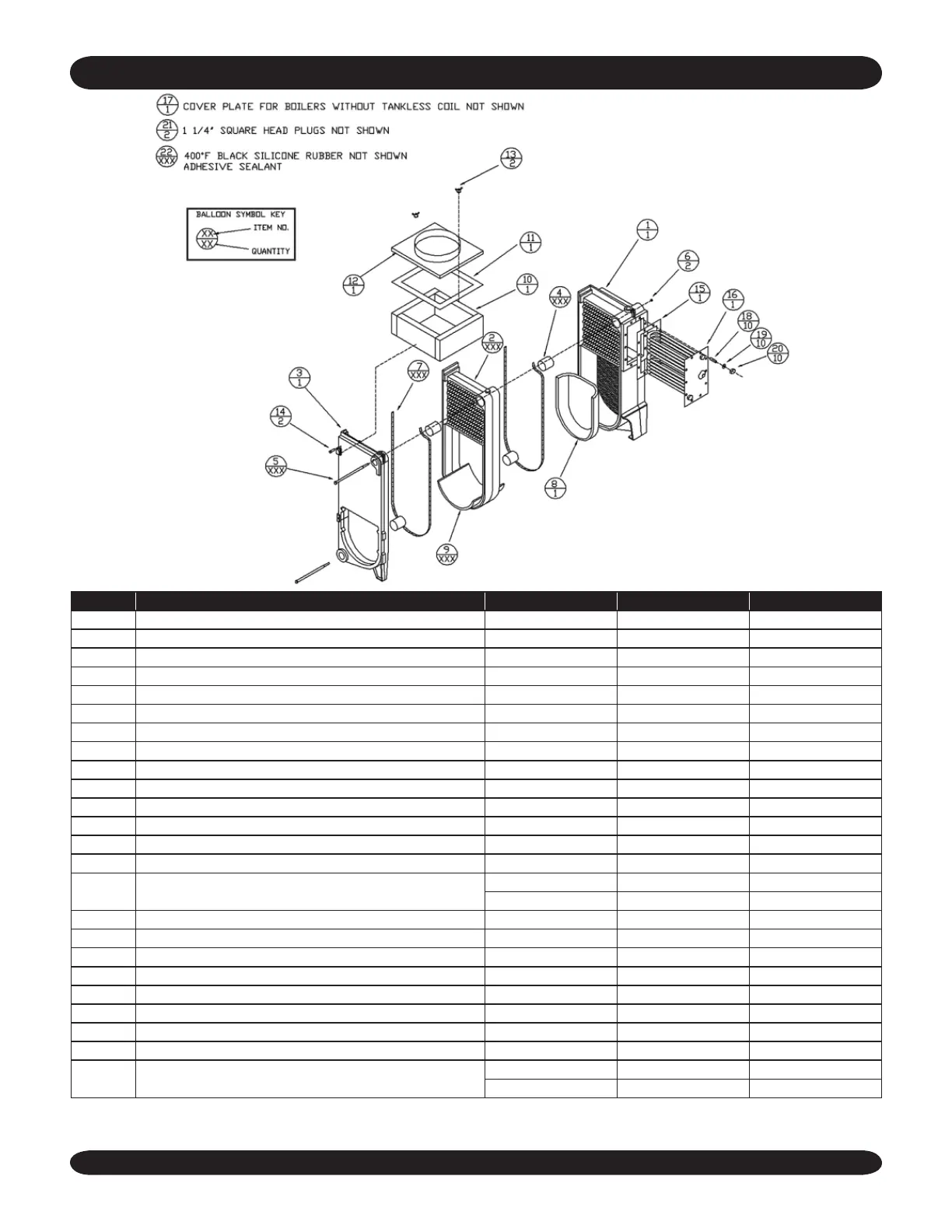

repair parTs
ITEM DESCRIPTION 3EW 4EW 5EW
1 Water Boiler Back Section (EW3) 40300008 40300008 40300008
2 Water Boiler Middle Section (EW2) 40300007 40300007 40300007
3 Empire Water Front Section (EW1) 40300006 40300006 40300006
4* Cast Iron Machined Nipples 2” 43300976 43300976 43300976
5* 1/4” Tie Rods 14605002 14605051 14605053
6 Tie Rods 1/4”20 Hex Head Nut 14695041 14695041 14695041
7* 5/16” x 701/2” Braided Rope 43300955 43300955 43300955
8 Target Wall 14619003 14619003 14619003
9* 1/2” thick Durablanket 14630031 14630031 14630031
10 Collector Base Complete (plus item 11, 12, 13) 42500279 42500280 42500281
11 Insulation Tape (plus items 10, 12, 13) 42500279 42500280 42500281
12 Collector Top (plus items 10,11,13) 42500279 42500280 42500281
13 8/32” Brass Wing Nut 13704007 13704007 13704007
14 #14 x 1” Hex Washer Head Screw 14695109 14695109 14695109
15** Coil Housing Gasket
14693065 14693065 14693065
CAT#94X40 CAT#94X40 CAT#94X40
16** 3.7 GPM Tankless Coil 14627020 14627020 14627020
17 Coil Housing Cover Plate (not shown) 43300256 43300256 43300256
18** Stainless Steel 3/8”16 x 11/2” Stud 14695113 14695113 14695113
19 Stainless Steel 3/8” Flat Washer 14695114 14695114 14695114
20** Stainless Steel 3/8” Top Lock Nut 14695115 14695115 14695115
21 11/4” Solid Plug (not shown) 1395002 1395002 1395002
22 Black Silicone Sealant (not shown) 14606020 14606020 14606020
‡
Battery 40300303 40300403 40300503
‡
**Rplacrment Coil Kit (contains items 15, 16, 18, 20)
43360408 43360408 43360408
CAT#65N34 CAT#65N34 CAT#65N34
* Note: Item quantities marked XXX vary depending upon the number of sections. Four cast iron nipples for rst middle replacement section and two for each additional section. Dura-
blanket is sold as one oversized piece to be cut to t the appropriate boiler6” x 12” (3EW), 9” X 20” (4EW), 12” X 20” (5EW). Black silicone sealant is sold in 10.3 oz. Cartridges.
‡ Not illustrated.
