3
Cabinet
Pre-Filters
Handle
Contact
Button
Contact
Button
Collecting Cells
Power Pack
Its basic components, and their functions, are as follows:
(See Figure 2)
Cabinet - mounts to existing duct and houses the collecting
cells and pre-filters.
Collecting Cells - two separate cells are included. Each
cell includes ionizing wires which charge the
particles and collecting plates which collect the
ionized dust, dirt and other impurities from the air.
Each cell must be installed with the ionizing wires
on the air entering side. Each cell must be oriented
with the handles and contact button toward the
operator. See figure 2.
Pre-filters - two sections which are interchangeable. They
trap large particles such as hair and lint before they
can enter the collecting cell sections.
Power Pack- contains solid state components that convert
the 120 volt power supply to the high-voltage,
direct current required for the collecting cells.

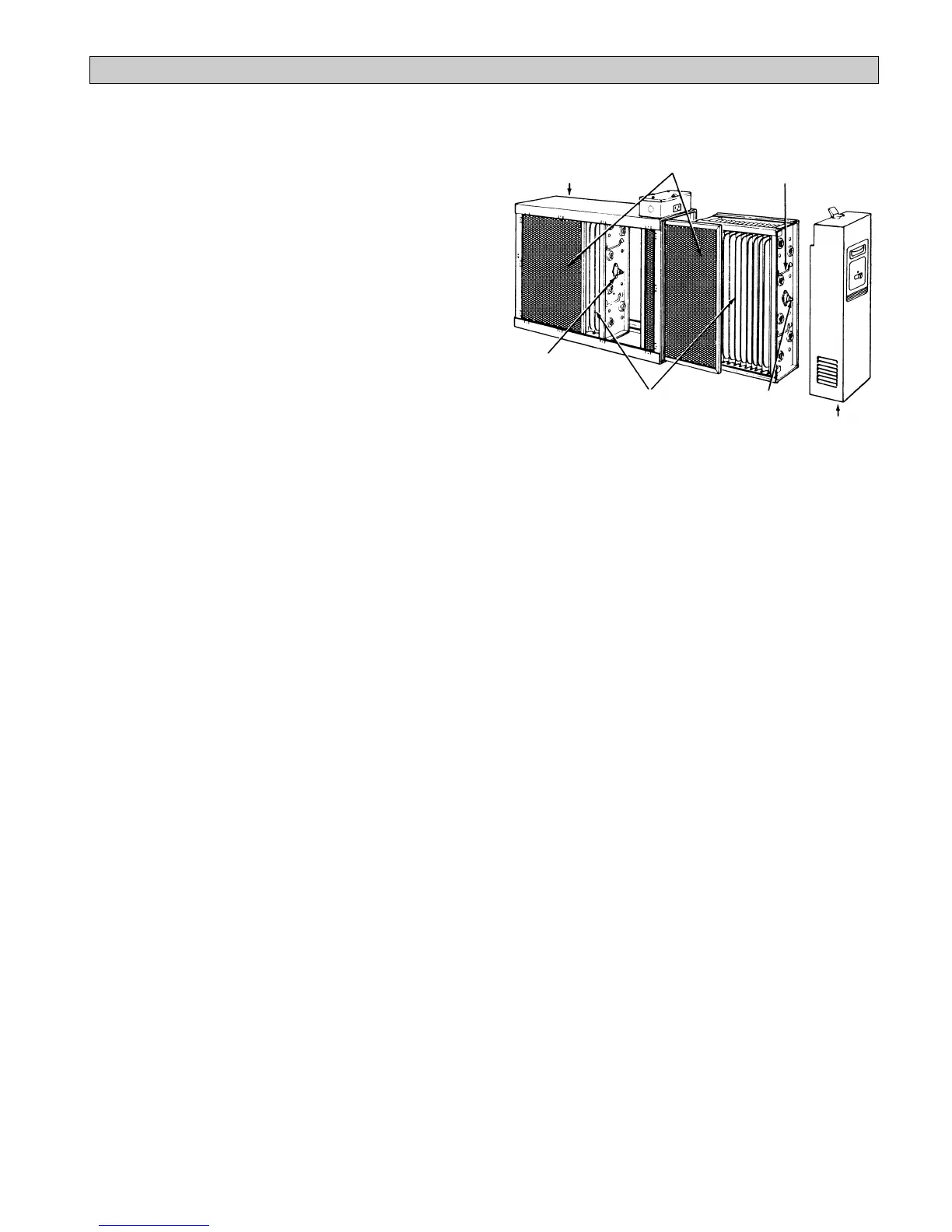

Figure 2
Parts Identification
