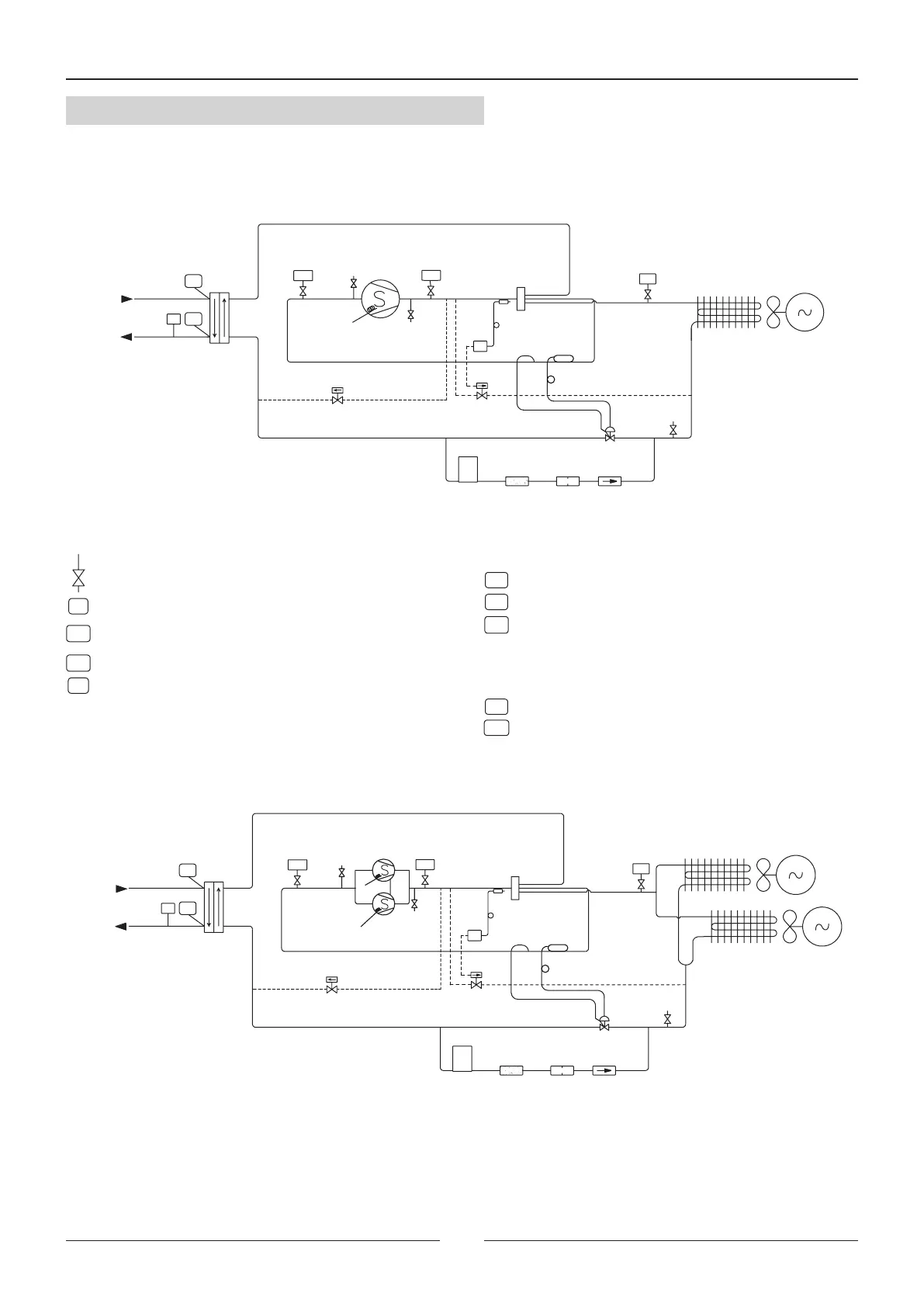

1.8.- PIPING DRAWINGS
HEAT PUMP UNITS EAR 0251SM TO 0431SM
Pressure gauge
Flow switch (option in standard version)
Water inlet probe (water inlet regulation)
Water outlet probe (anti-freeze protection)
Low pressure switch cooling cycle
Pressure transducer:
-Cooling: Condensing pressure control
-Heat pump: Defrost start
Defrost end
Low pressure switch heating cycle
Crank case heater
High pressure switch
HEAT PUMP UNITS EAR 0472SM TO 0812SM
Water inlet
Water
outlet
Plate
exchanger
Expansion
valve
Filter drier
Coil
Fan motor
Scroll
compressor
Hot gas injection valve (option) cooling
mode
Check valve
Restrictor
Liquid
receiver
Solenoid valve-Heating
(option)
4 - way valve
Discharge Thermostat
(option)
Water inlet
Water
outlet
Plate
exchanger
Expansion
valve
Filter drier
Coils
Fan motor
Scroll compressor
Hot gas injection valve (option) cooling
mode
Check valve
Restrictor
Liquid
receiver
Solenoid valve
-Heating
(option)
4 - way valve
Discharge Thermostat
(option)
Discharge Thermostat (Heating low ambient kit -15ºC option)
Solenoid valve (Heating low ambient kit -15ºC option)
