Lennox ECOLEAN EAC Series - Unit Installation

28
2.- INSTALLATION

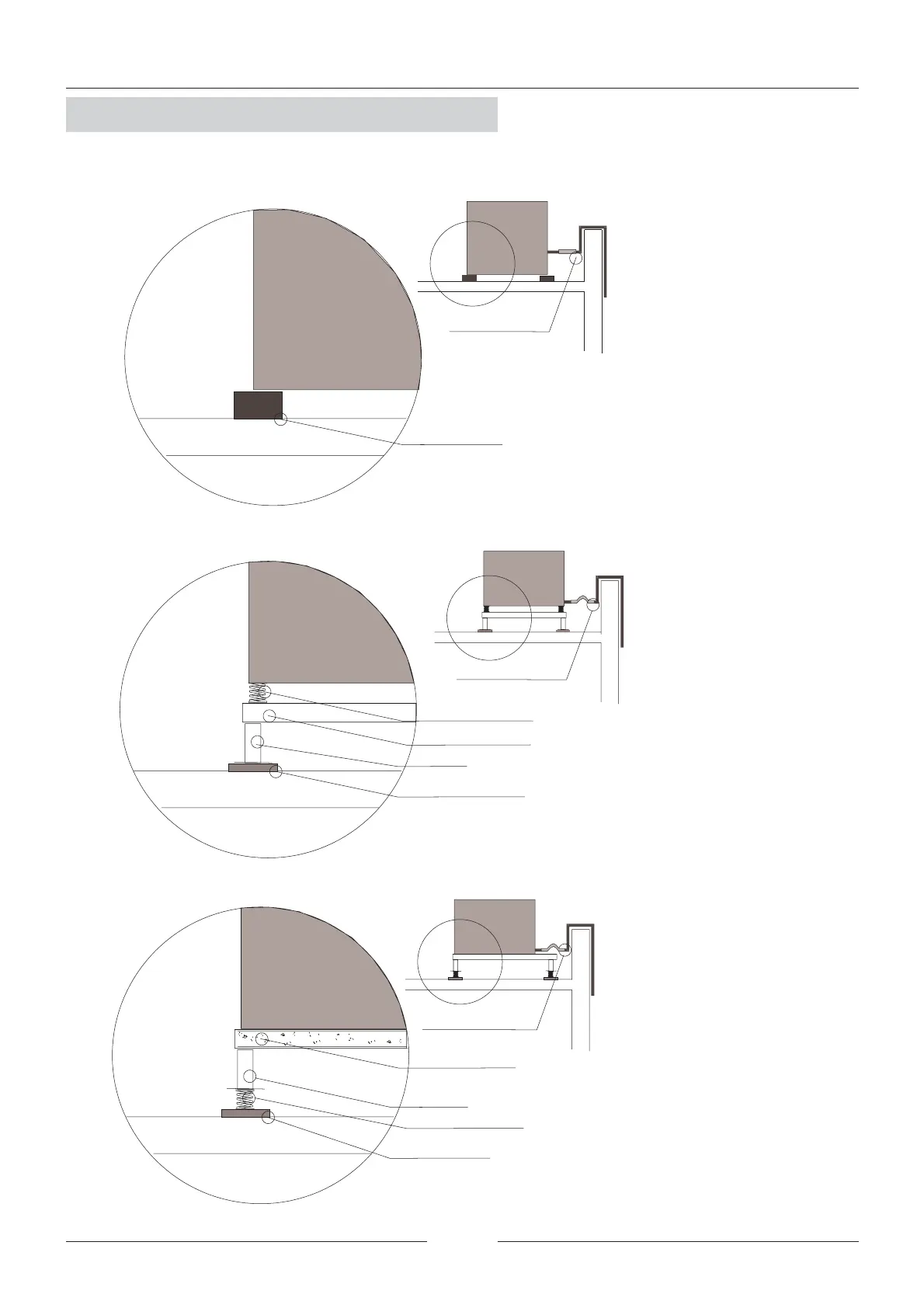

2.3.- ANTIVIBRATION MOUNTING
Unit
Damping spring
Metallic and concrete
structure
Support
Rubber mounting
Flexible connection
with loop
3.- Mounting on a high sensibility zone
(Check floor load)
Unit
Flexible connection
Rubber mounting
1.- Mounting on a low sensibility zone
Unit
Damping spring
Metallic structure
Support
Rubber mounting
Flexible connection
with loop
2.- Mounting on a medium sensibility zone
