The EcoLean
TM
system comprises a water cooler or air/water pump combined with a series of hydraulic accessories obtaining
the Hydraulic or Hydronic version.
COMPONENTS:
HYDRONIC VERSION:
1,2,3,4,5,6,7,8,9,10,11
HYDRAULIC VERSION:
1,4,5,6,7,8,9,10,11
1.- Detachable water filter
2.- Water tank
3.- Water tank heater
(in option)
4.- Safety valve
5.- Manometer
6.- Expansion vessel
7.- Water pump
8.- Air purge valve
9.- Plate exchanger
10.- Flow switch
11.- Drain valve
12.- Water isolation valves
(in option)
Inside terminal unit
Hydraulic connections
7
6
5
4
2
11
1
10
11
8
9
3
8
12
12
Customer
connection
Models 0091 to 0812
Inside terminal unit
Hydraulic connections
7
6
5
4
11
1
10
9
8
12
12
Customer
connection
Models 0091 to 1303
Inside terminal unit
Hydraulic connections
10
11
8
9
12
12
11
Customer
connection
7
12
8
1
5
4
6
2
3

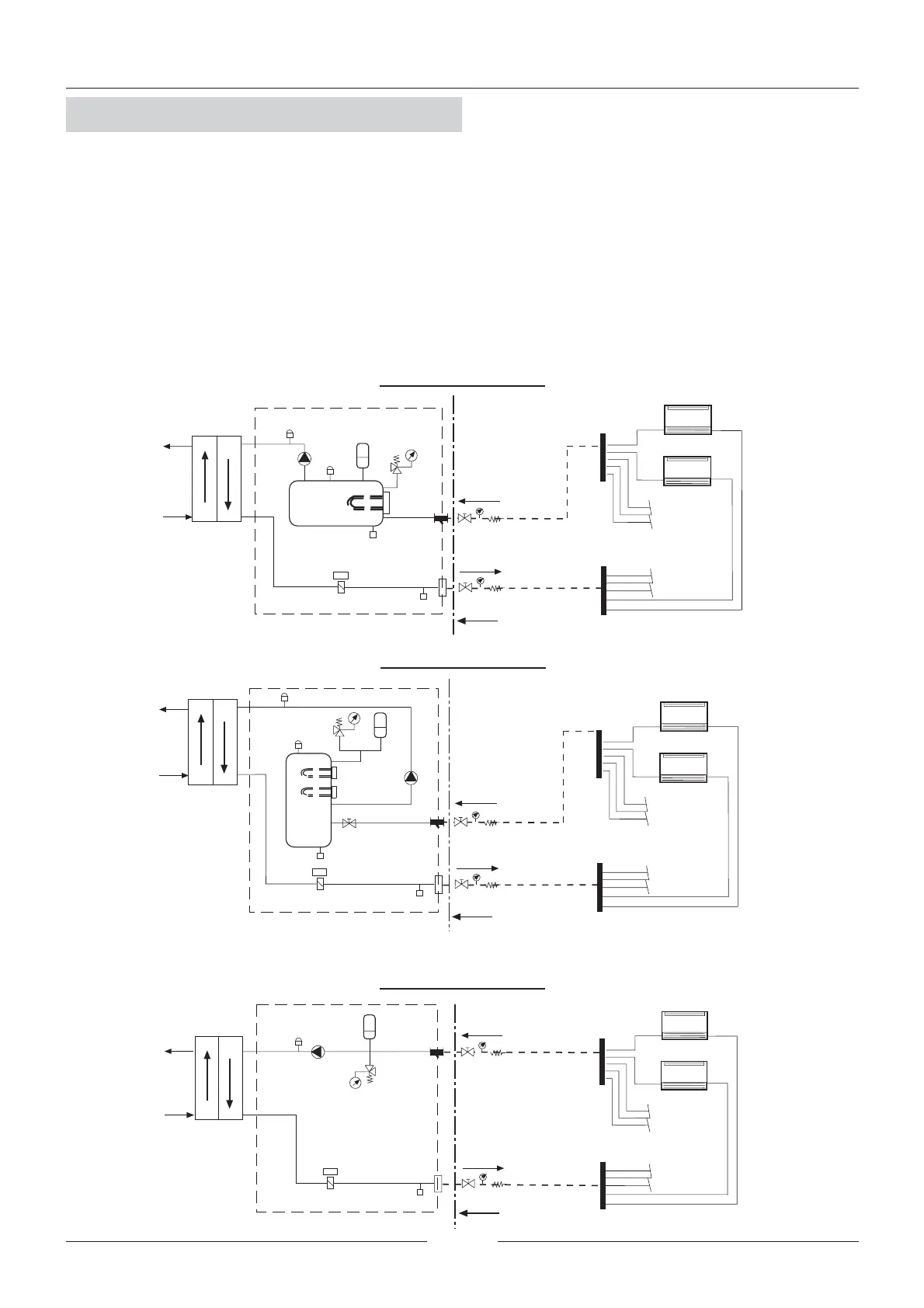

1.- GENERAL CHARACTERISTICS
1.3.- COMPONENT
HYDRAULIC VERSION
HYDRONIC VERSION
Models 1003 to 1303
