Lennox ELS072S4S - Wiring Diagrams

Lennox ELS072S4S
24 pages
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Page 16

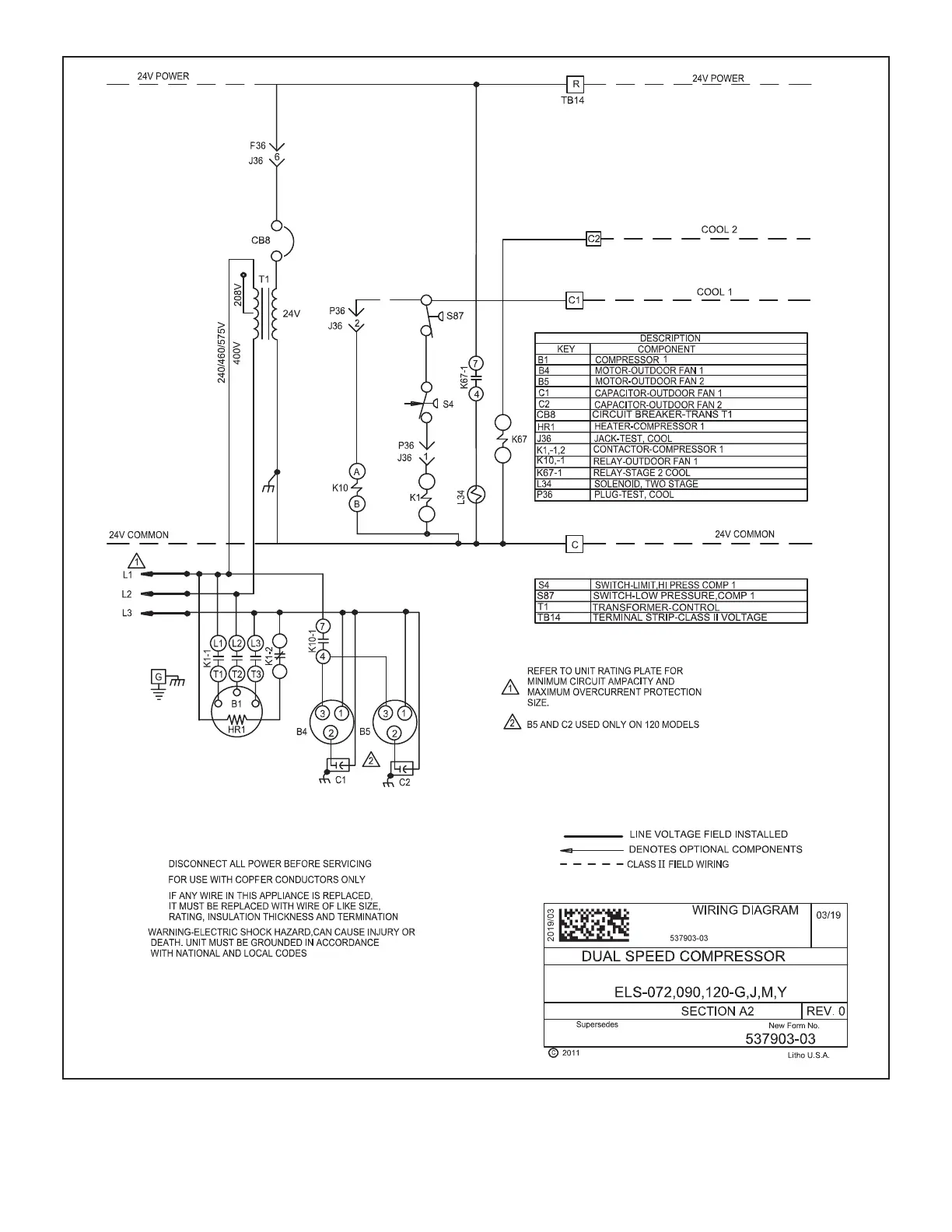

FIGURE 7. Typical Wiring Diagram – ELS072S4S, ELS090S4S and ELS120S4S (G, J, M, Y Voltages)
