Page 12
Rigging the Unit for Lifting
Rig the unit for lifting by attaching four cables to the holes
in the base rail of the unit. See gures 1 through 3.
1 - Remove protective packaging before rigging the
unit for lifting.
2 - Connect the rigging to the holes in each corner of
the unit’s base.
3 - All panels must be in place for rigging.
4 - Place a eld-provided H-style frame just above the
top edge of the unit. The frame must be of adequate
strength and length. (An H-style frame will prevent
the top of the unit from being damaged.)
Caution - do not walk on unit.
Important - all panels must be in place for rigging.
Lifting point should be directly above the center of gravity.

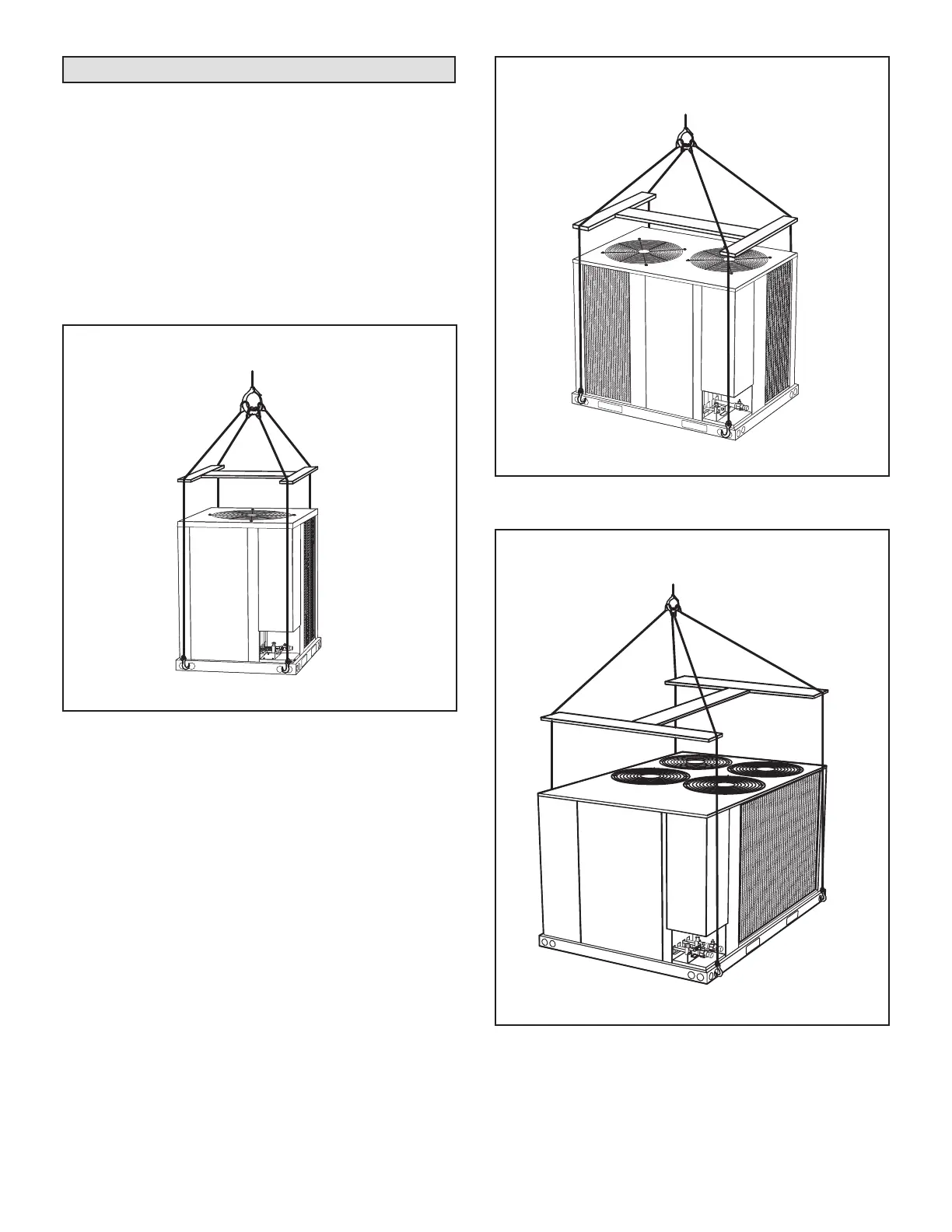

FIGURE 1. ELS072S4S and ELS090S4S
Caution - do not walk on unit.
Lifting point should be directly above the center of gravity.
Important - all panels must be in place for rigging.
FIGURE 2. ELS120S4S, ELS120S4D
and ELS150S4D
Caution - do not walk on unit.
Lifting point should be directly above the center of gravity.
Important - all panels must be in place for rigging.
FIGURE 3. ELS180S4D and ELS240S4D
