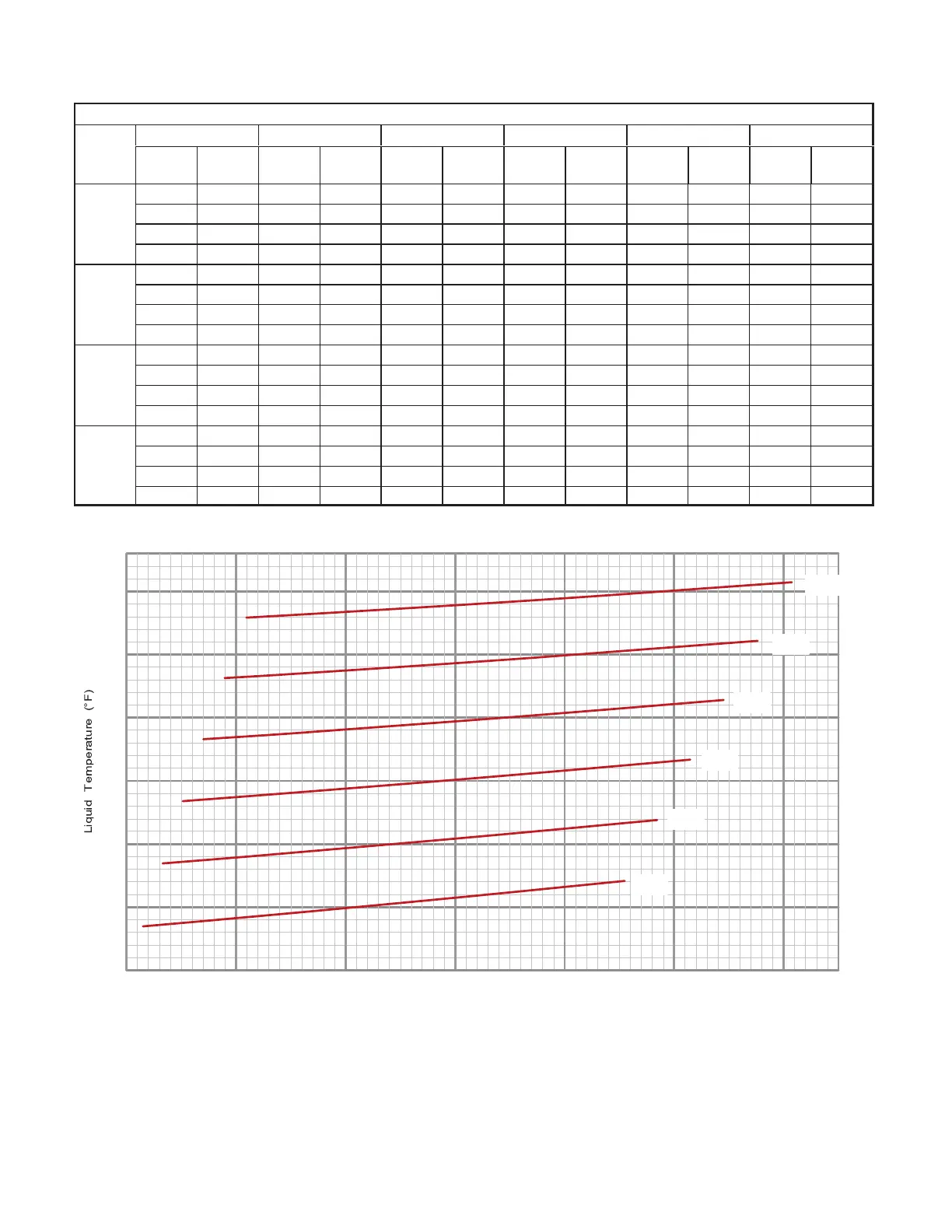

300 NORMAL OPERATING PRESSURES - REHEAT - ALL-ALUMINUM COIL - 581099-01
Outdoor Coil Entering Air Temperature
65 F 75 F 85 F 95 F 105 F 115 F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Circuit 1
111 270 113 310 115 355 117 405 119 461 121 522
120 274 122 314 124 358 126 408 128 463 130 524
137 285 140 323 142 367 145 416 147 470 150 529
155 298 158 335 161 378 165 425 168 478 171 537
Circuit 2
111 260 114 297 117 340 119 389 121 443 123 502
120 268 123 306 126 349 128 398 131 452 133 512
137 280 140 319 143 363 147 413 150 468 153 529
153 287 158 326 161 372 165 422 169 479 172 540
Circuit 3
95 263 97 304 100 350 102 401 104 458 106 519
102 266 105 307 108 353 110 405 112 461 115 522
118 274 122 315 125 361 128 412 130 468 133 529
136 284 140 324 143 370 147 421 150 477 153 537
Circuit 4
97 258 99 300 101 346 103 398 105 456 108 518
105 263 107 304 109 351 112 402 114 459 117 521
120 272 123 312 126 358 129 409 132 466 136 527
137 280 141 320 145 365 148 416 152 472 156 532
300 CHARGING CURVE CIRCUIT 1 - REHEAT - ALL-ALUMINUM COIL - 581100-01
Suction Pressure (psig)
70
80
90
100
110
120
Outdoor Temperature (°F)
105°
95°
115°
85°
75°
65°
60
110 120130 140150 160170
