Lennox Enlight LGT210H4M User Manual


BELT
BLOWER
PULLEY
MOTOR
PULLEY
NOT ALIGNED
ALIGNED
TENSIONER

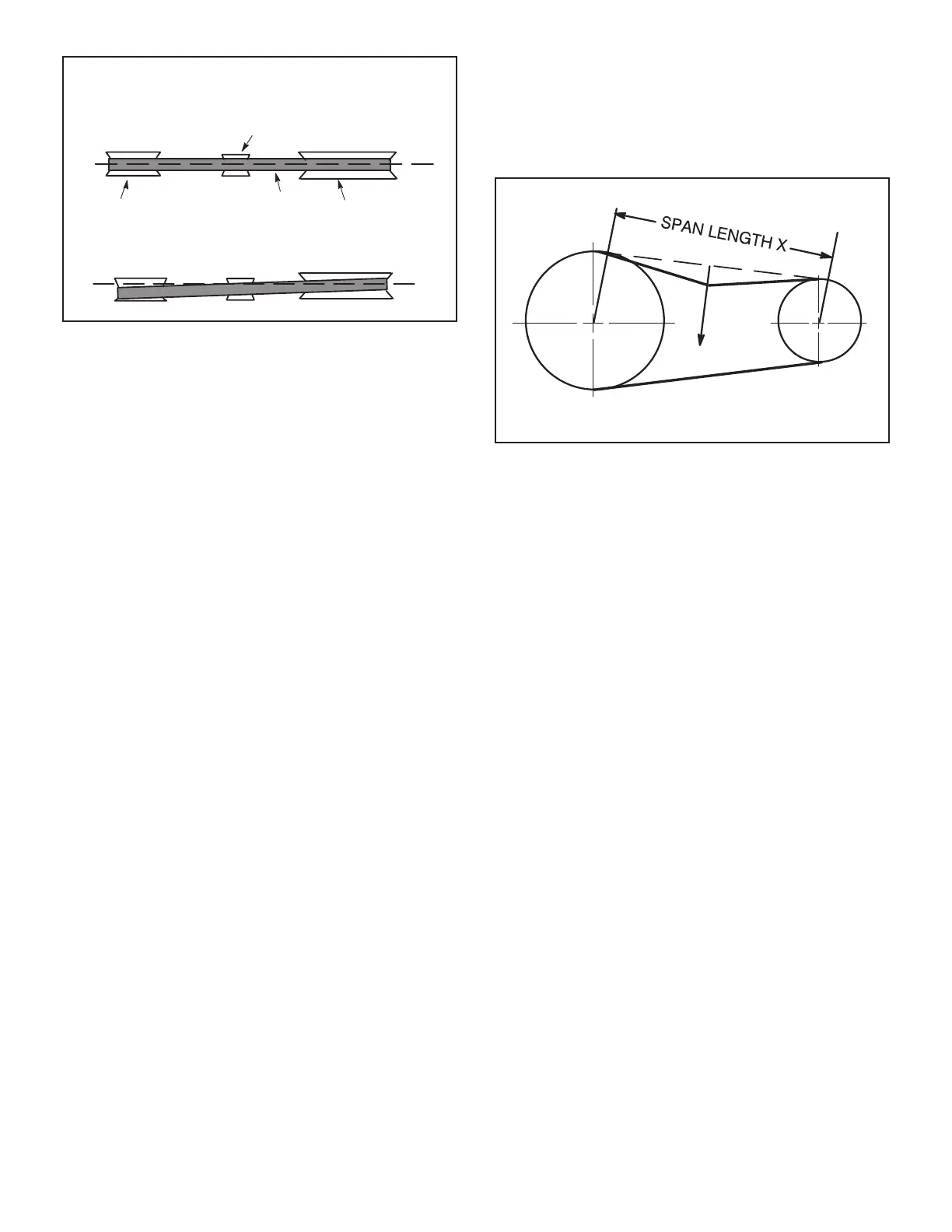

PULLEY ALIGNMENT - WITH TENSIONER
FIGURE 16
E-Check Belt Tension


1 - 
2 - 


       
.
        
         

       -
       

MEASURE BELT TENSION
DEFLECTION 1/64” PER INCH OF SPAN
FORCE
FIGURE 17
F-Field-Furnished Blower Drives


Lennox Enlight LGT210H4M Specifications

General

Brand	Lennox
Model	Enlight LGT210H4M
Category	Fan
Language	English
