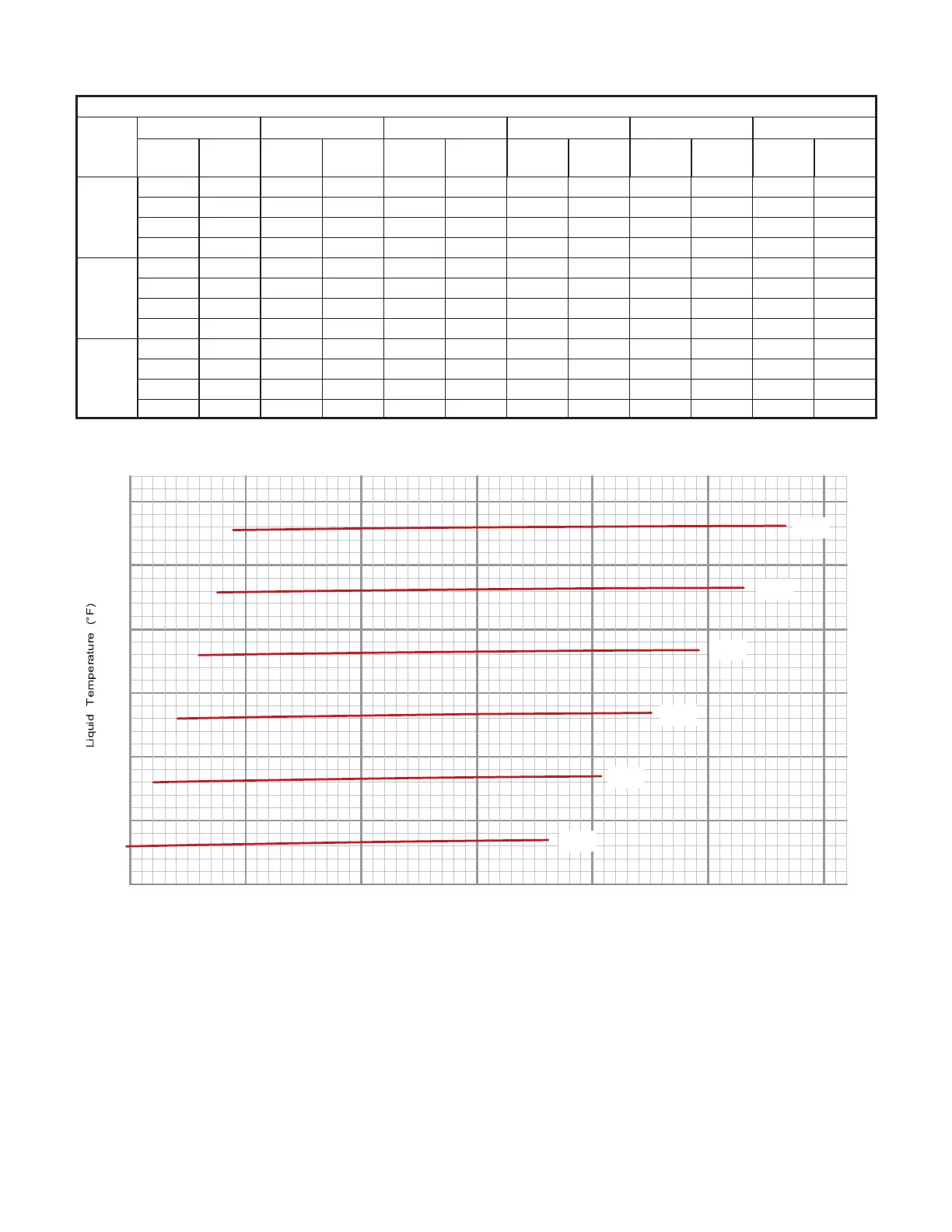

TABLE 12
180 NORMAL OPERATING PRESSURES - REHEAT - ALL-ALUMINUM COIL - 581087-01
Outdoor Coil Entering Air Temperature
65 F 75 F 85 F 95 F 105 F 115 F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Circuit 1
100 237 102 271 104 312 106 357 108 409 109 465
107 239 110 273 113 313 115 359 117 410 119 466
122 245 126 279 129 318 133 363 136 414 138 470
136 254 141 287 145 326 149 371 153 421 157 476
Circuit 2
105 249 106 288 108 333 109 385 111 444 112 510
113 251 115 288 117 332 119 384 121 442 123 507
129 258 132 293 135 336 138 385 141 441 144 504
145 271 149 305 153 345 157 393 161 447 164 508
Circuit 3
113 251 115 290 116 333 118 382 120 435 122 494
121 255 124 293 126 336 128 385 130 438 132 496
139 264 141 303 144 346 147 394 150 447 153 504
155 278 159 316 162 359 166 407 169 459 173 517
180 CHARGING CURVE CIRCUIT 1 - REHEAT - ALL-ALUMINUM COIL - 581088-01
Suction Pressure (psig)
70
80
90
100
110
120
Outdoor Temperature (°F)
105°
95°
115°
85°
75°
65°
60
110120 130140 15
01
60100
