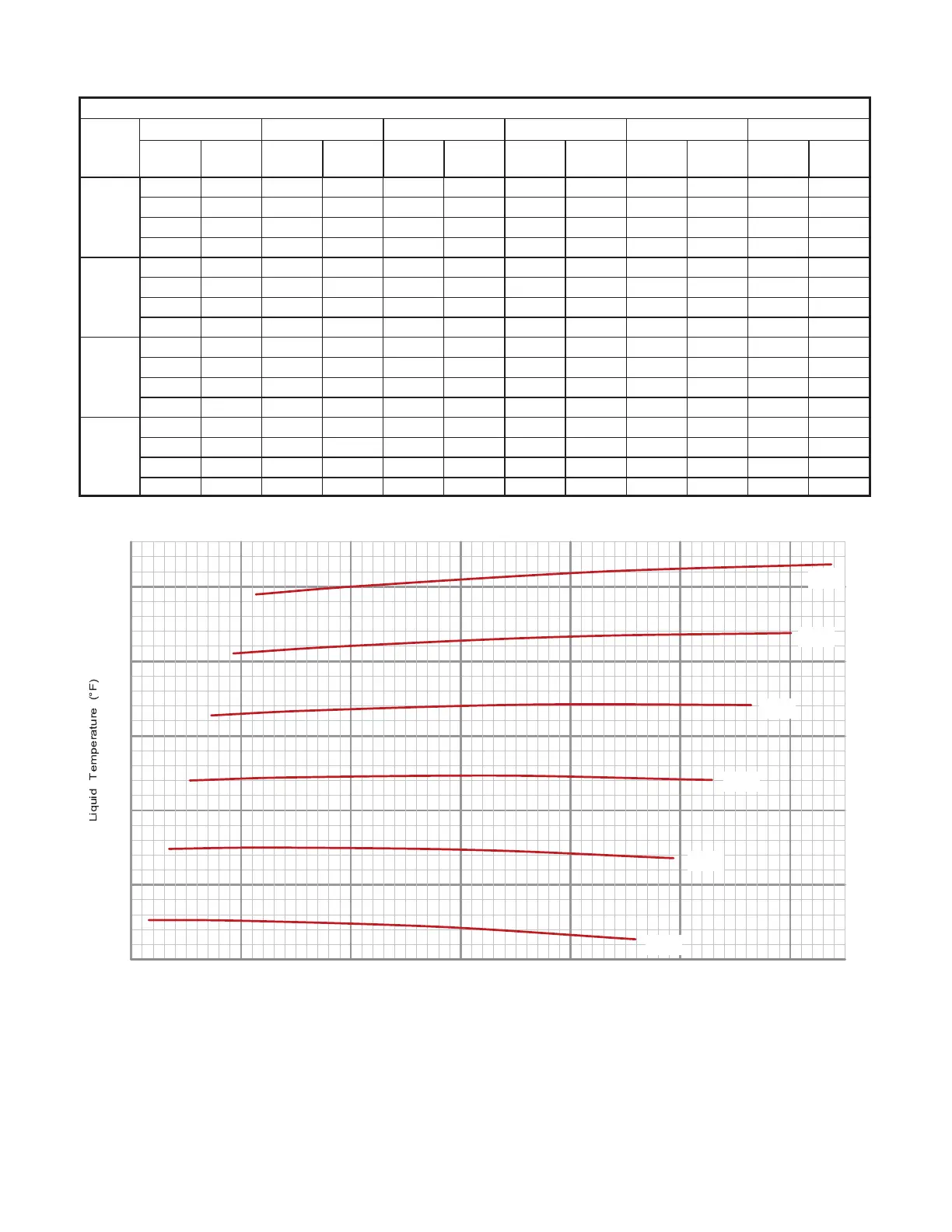

TABLE 13
210 NORMAL OPERATING PRESSURES - NO REHEAT - ALL-ALUMINUM COIL - 581089-01
Outdoor Coil Entering Air Temperature
65 F 75 F 85 F 95 F 105 F 115 F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Circuit 1
117 250 118 288 120 330 122 376 124 426 126 480
125 256 128 294 130 336 132 383 134 433 137 487
143 268 146 306 149 349 152 396 155 446 158 501
161 280 164 319 168 362 171 409 175 460 179 515
Circuit 2
120 243 123 281 125 321 127 365 130 412 132 463
129 249 132 287 134 328 137 372 139 419 142 470
148 262 150 300 153 341 156 385 159 433 162 484
167 276 170 314 173 355 176 400 180 448 183 499
Circuit 3
104 249 106 290 108 335 110 385 112 438 114 496
112 252 114 293 116 338 119 388 121 441 123 499
129 258 132 299 134 345 137 394 139 447 142 505
147 266 150 307 153 352 156 401 159 455 162 512
Circuit 4
106 242 108 283 110 329 112 382 114 440 116 505
113 244 116 284 118 330 120 382 123 440 125 504
130 250 133 289 136 334 138 385 141 442 144 504
147 260 150 298 154 341 157 391 161 447 164 508
70
80
90
100
110
120
115125 135145 155
Outdoor Temperature (°F)
165175
105°
95°
115°
85°
75°
65°
210 CHARGING CURVE CIRCUIT 1 - NO REHEAT - ALL-ALUMINUM COIL - 581090-01
Suction Pressure (psig)
