Lennox Enlight LGT210H4M User Manual


4

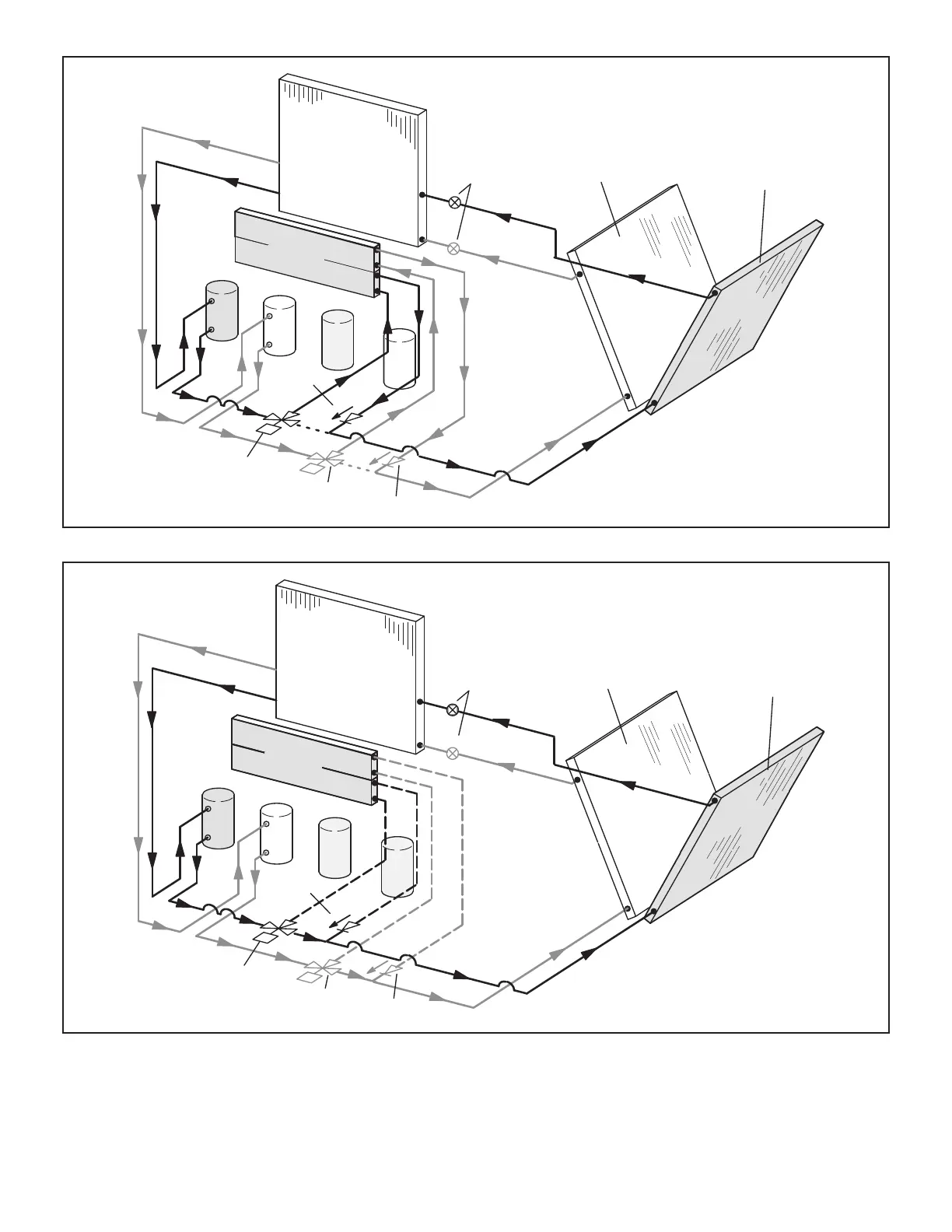

REHEAT MODE REFRIGERANT ROUTING
210, 240 AND 300 UNITS
REHEAT
COIL
CONDENSER COIL
CIRCUIT 3 & 4
1
2
EXPANSION
VALVES
CHECK
VALVE
L14
REHEAT
VALVE
L30
REHEAT
VALVE
3
CHECK
VALVE
ALL FOUR
EVAPORATOR
COILS ARE
INTERTWINED
Note: Two refrigerant circuits are shown;
both circuits operate during reheat.
CONDENSER COIL
CIRCUIT 1 & 2
FIGURE 41
4
COOLING MODE REFRIGERANT ROUTING
210, 240 AND 300 UNITS
REHEAT
COIL
1
2
EXPANSION
VALVES
CHECK
VALVE
L14
REHEAT
VALVE
L30
REHEAT
VALVE
3
CHECK
VALVE
Note: Two refrigerant circuits are
shown; both circuits operate
when there is a cooling demand.
CONDENSER COIL
CIRCUIT 3 & 4
ALL FOUR
EVAPORATOR
COILS ARE
INTERTWINED
CONDENSER COIL
CIRCUIT 1 & 2
FIGURE 42
