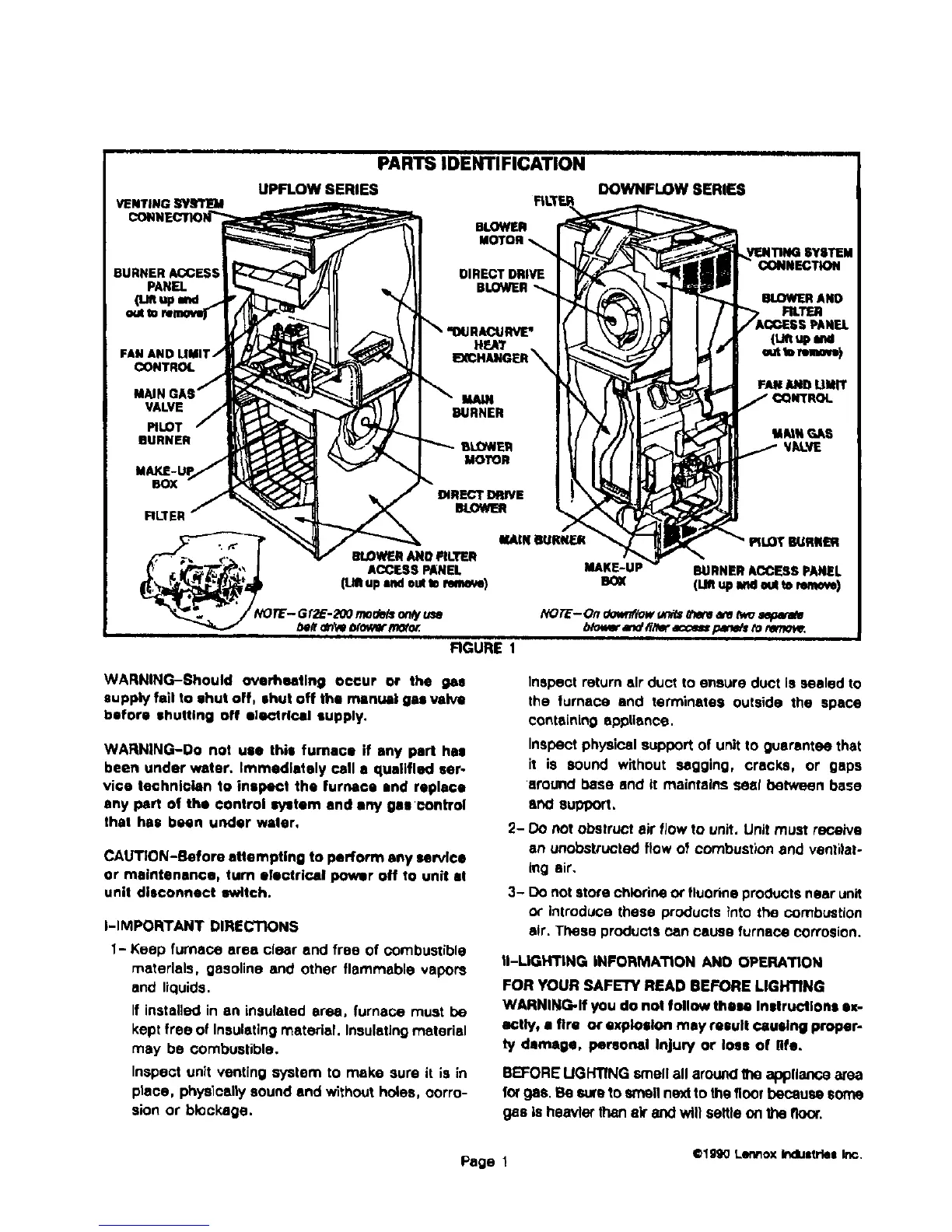

PARTSIDENTIFICATION
UPFLOW SERIES
BLOWER
DOWNFLOW SERIES
DIRECT
BLOWER
FAN AND
CONTROL
MAIN
VALVE
PILOT
BURNER
BOX
FILTER
HEAT
DIRECTDflIVE
FIGURE 1
WARNING-Should oyerhastlng occur or the ps
supply fell to shut off, shut off the manual gas valve
before shutting off electrical supply.
WARNING-Do not use this furnace if any pad has
been under water. Immediately call • qualified ser-
vice technician to inspect the furnace and replace
any pert of the €ontrol s_tem and any gas'control
that has been under water,
CAUTION-Before elf empties to perform any Nrvlce
or maintenance, turn electrical power off to unit el
unit disconnect switch.
i-IMPORTANT DIRECTIONS
1- Keep furnace area clear and free of combustible
materials, gasoline and other flammable vapors
and liquids,
If installed in art insulated area, furnace must be
kept free of Insulating material. Insulating material
may be combustible.
Inspect unit venting system to make sure it is in
piece, physically sound end without holes, corro-
sion or blockage,
CONNECTION
BLOWERAND
F'R.1T_
Inspect return sir duct to ensure duct is sealed to
the furnace end terminates outside the space
containing appliance.
Inspect physical support of unit to guerentee that
it is sound without sagging, cracks, or gaps
around base and it maintains seat between base
arx:l sopq:x_.
E- Do not obstruct aWflow to unit. Unit must receive
an unobstructed flow of combustion and ventilate
_ng air.
3- Do not store chlorine Or fluorine products near unit
or introduce these products into the combustion
air. These products Pan cause furnace coffosion.
II-LIGHTING iNFORMATiON AND OPERATION
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING-If you do not follow these Instructions ax-
_tly, a fire or explosion may result causing proper-
ty damage, personal Injury or loss of life.
BEFOREUGHTING smellall arounOthe appliancearea
forgas, Be sore to smelt nextto thefloor because some
gas isheavierthanair and will settleon the floor.
