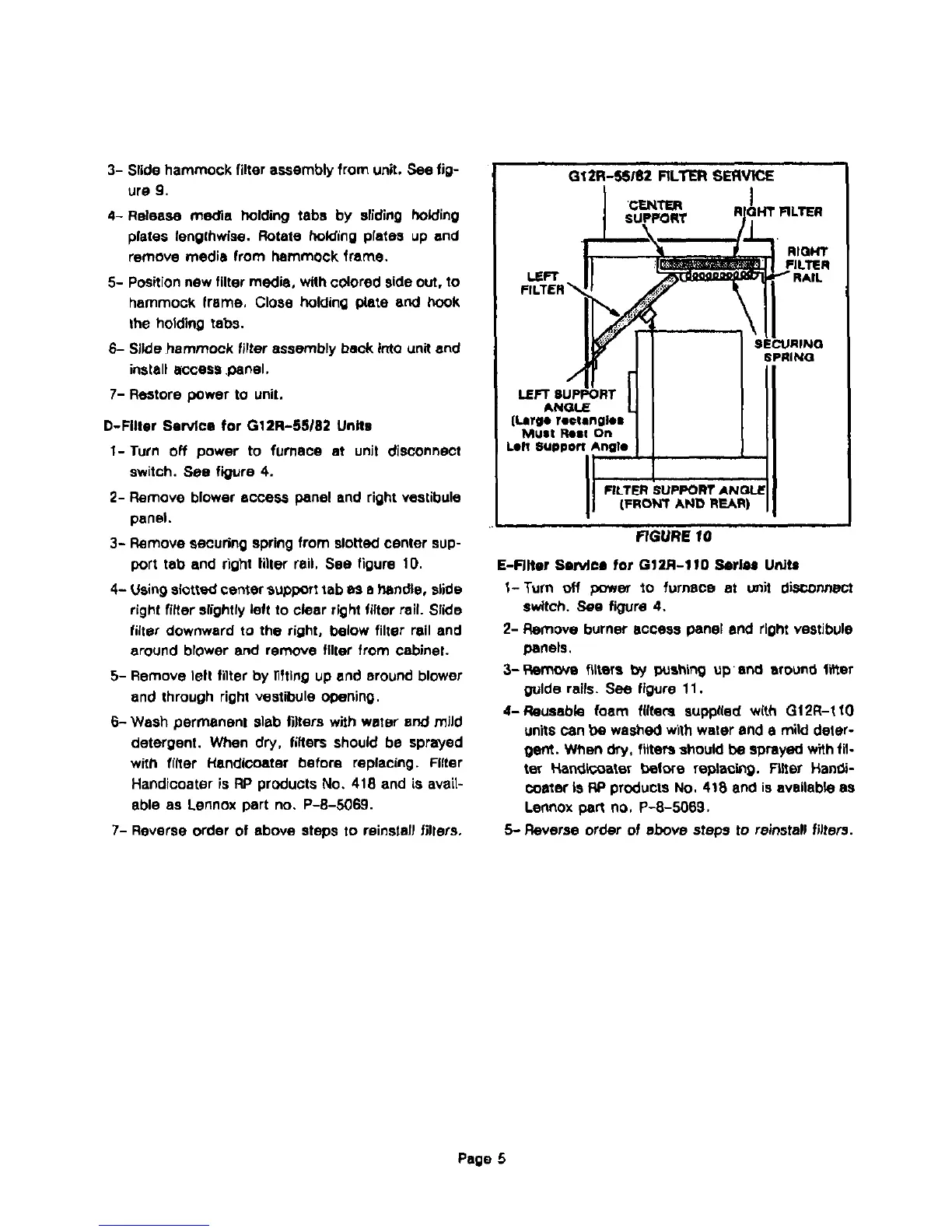

3- Slidehammockfilterassembly from unit, Sea fig-
ure g.
4-Release mecrm holding tabs by sliding holding
plates lenglhwise. Rotate holding plates up and
remove media from hammock frame.
5- Positionnew filter media, with cOlored side out, to
hammock frame, Close holding plate and hook
the holding tabs.
6- Slide.hammock fitter assembly back into unit end
install access 10anal.
7- Re=tore power to unil,
D-Filter Service for G12R-55!82 Units
1-Turn off power to furnace at unJt disconnect
switch. See figure 4.
2- Remove blower access panel and right vestibule
panel.
3- Remove seoudng spring from slotted center sup-
port tab and right litter rail, See figure 10.
4- Using slotted center support tab as s handle, slide
right filter s_ghtly left to clear right filter rail. Slide
filter downward to the right, below filter rail and
around blower and remove filter from cabinet.
5- Remove left fitter by ilfting up end around blower
and through right vestibule el:tuning.
6- Wash permanent slab filters with water end mild
detergent. When dry, filters should be sprayed
wifft filter Hendicoater before replacing. Filter
Handiooater is liP products No, 418 and is avail-
able as Lennox part no. P-8-5069.
7- Reverse order of above steps to reinstall fillers,
LEFT
LEFT SUPPORT
ANGLE
{Large rectangles
MUSt Rest On
Lilt support Angle
S Et-_LIRINO
SPRING
(FRONT AND REAR)
fiGURE 10
E-Filter Service for G12R-l_O Series U_ts
I-Turn off power to furnace at u_it disconnect
switch. Sea figure 4,
2- Remove burner access panel and right vestJbule
panels.
3-Remove filters by _ahing upend ,,round fil_er
guide rails. See figure 11.
4-Reusabk3 foam filters supplied with GI2R-lt0
unitscan be washed with water end a milddeter-
get_. Wt_endry, filters should be sDrayed w_h fil-
ter !4andk:oater _,_eforereplacb',g. F_er Han_-
teaser is RP products No. 418 and is available as
Lennox part no, P-8-5069.
5- Reverse order of above steps to reinstall filters.
Page 5
