Lennox G26 Series User Manual

Page 9

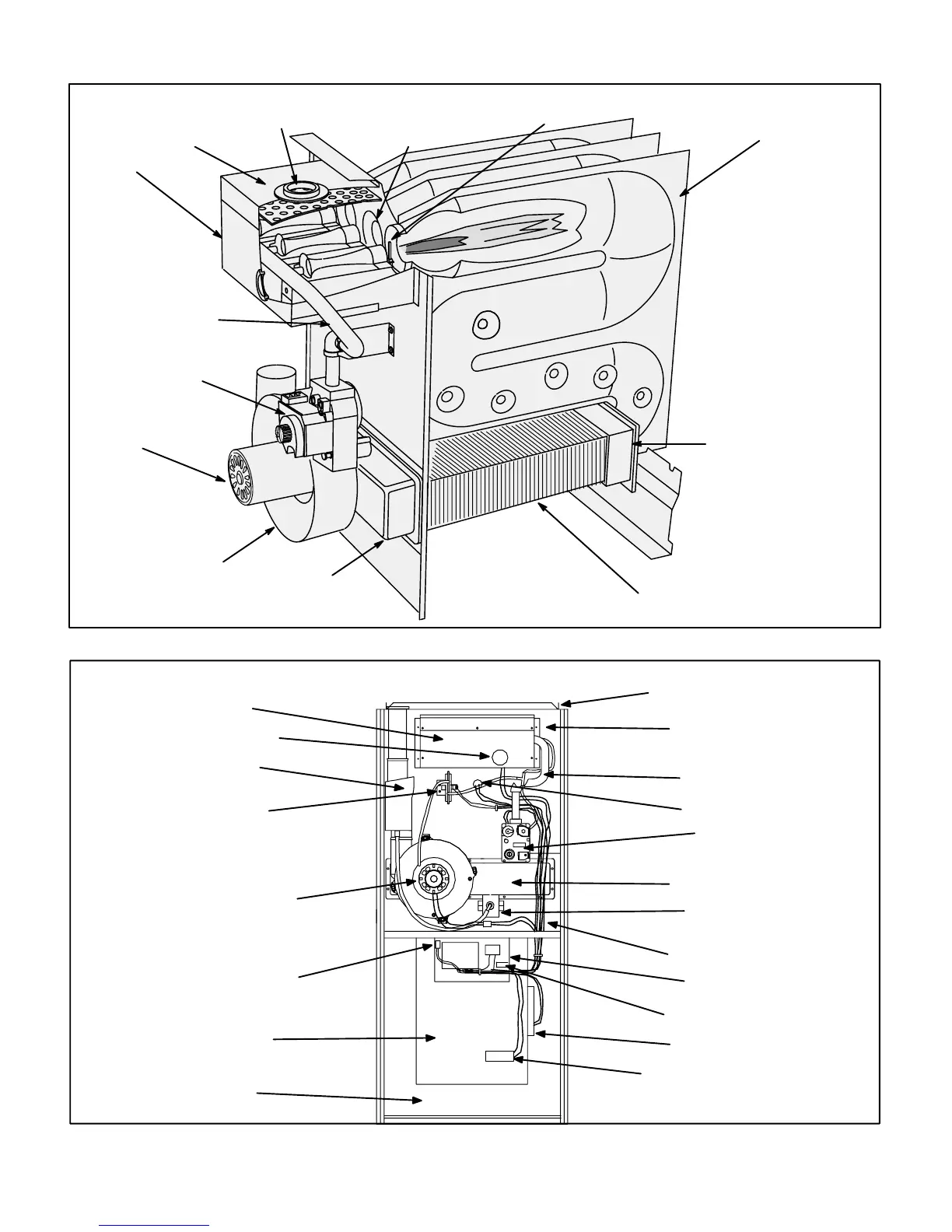

FIGURE 2
G26 HEAT EXCHANGER
BURNER
ACCESS
COVER
BURNER BOX
FRESH AIR INTAKE
FITTING
CORBEL ORIFICE
CUPS
SURELIGHT IGNITOR LENNOX DURALOKPLUS
HEAT EXCHANGER AS-
SEMBLY
WARM HEAD
(COLLECTOR)
BOX
CONDENSER COIL
COLD HEADER
(COLLECTOR )
BOX
COMBUSTION AIR
BLOWER MOTOR
COMBUSTION
AIR BLOWER
GAS VALVE
MANIFOLD
FIGURE 3
G26 GENERAL PARTS ORIENTATION
DIFFERENTIAL
(COMBUSTION AIR)
PRESSURE SWITCH
CONTROL BOX
COMBUSTION AIR BLOWER
BLOWER MOTOR CAPACITOR
COLD HEADER BOX
FLAME SIGHT GLASS
GAS MANIFOLD
SUPPLY AIR DUCT
FLANGE
UPPER VEST PANEL
PRIMARY LIMIT
GAS VALVE
HEADER BOX
CONDENSATE
TRAP
LOWER VEST PANEL
BLOWER MOTOR
BURNER
BOX
BLOWER HOUSING
BLOWER
COMPARTMENT
CIRCUIT BREAKER
DOOR INTERLOCK
SWITCH
FLUE TRANSITION
