Page #24 background imageLoading...
Page #24 background image
Page 24

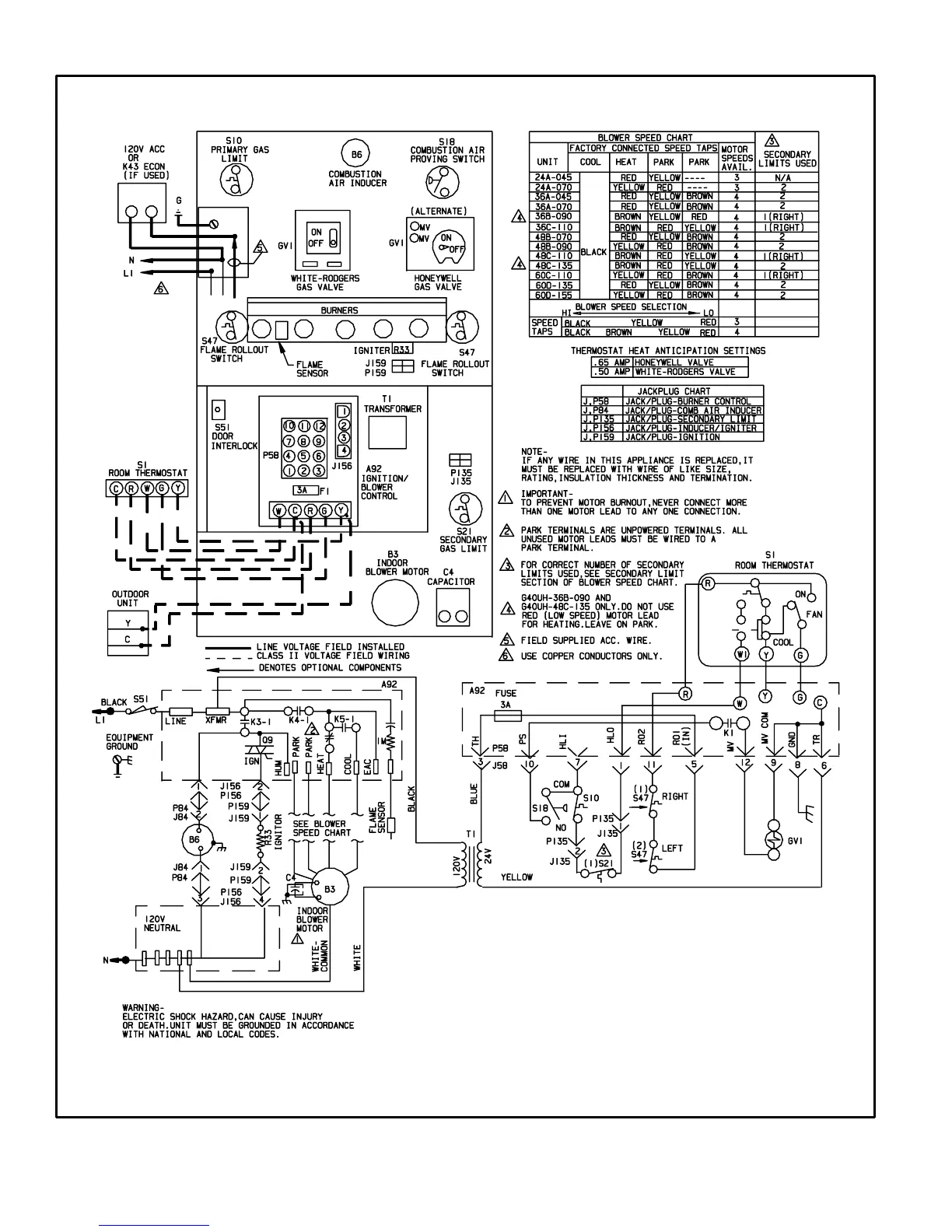

G40UH(X) Schematic Wiring Diagram
FIGURE 26

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Lennox G40UH Series and is the answer not in the manual?

Lennox G40UH Series Specifications

General IconGeneral
TypeGas Furnace
Efficiency80% AFUE
Heating StagesSingle-stage
Ignition SystemHot Surface Ignition
Vent TypeConventional Venting
Blower MotorPSC
Cabinet Width17.5 inches
Warranty5-Year Parts
Fuel TypeNatural Gas
Heating Capacity44, 000 to 132, 000 BTU/h
