Page 3

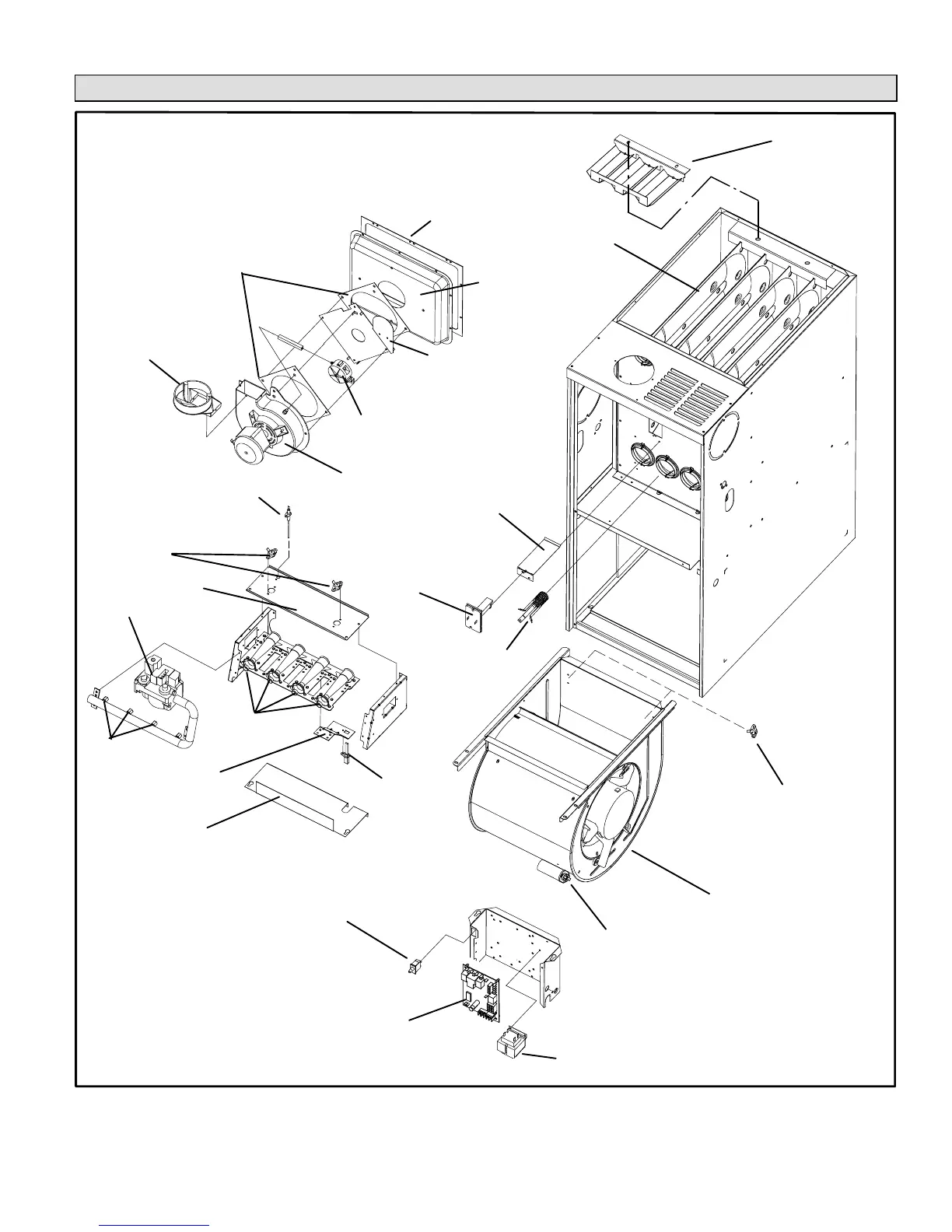

G40UH(X) Parts Arrangement
FIGURE 1
Flue Transition
Combustion Air Inducer
Combustion Air
Orifice
Combustion Air
Pressure Switch
Flue Collector Box
Heat Exchanger
Flame Sensor
Gas Valve
Burners
Igniter
NO
x
Insert
Primary Limit
Blower Assembly
Capacitor
Door Interlock Switch
Integrated Ignition
Control Board
Control Transformer
Gasket
Flue Box Gasket
Flame Rollout Switches*
Flame Rollout Bracket
Gas Orifices
Igniter Bracket
Burner Bottom Shield
Limit Shield
Secondary Limit
(NO
x
Units Only)
Air Deflector
G40UH−48C−135,
G40UH−60C−110, &
G40UH−60D−155
Units Only
*135 and 155 kBtuh units only −−
Flame rollout switches are located
on brackets on the inner sides (one
on the left and one on the right) of
the burner box.
