Lennox G50UHX Series User Manual

Page 4

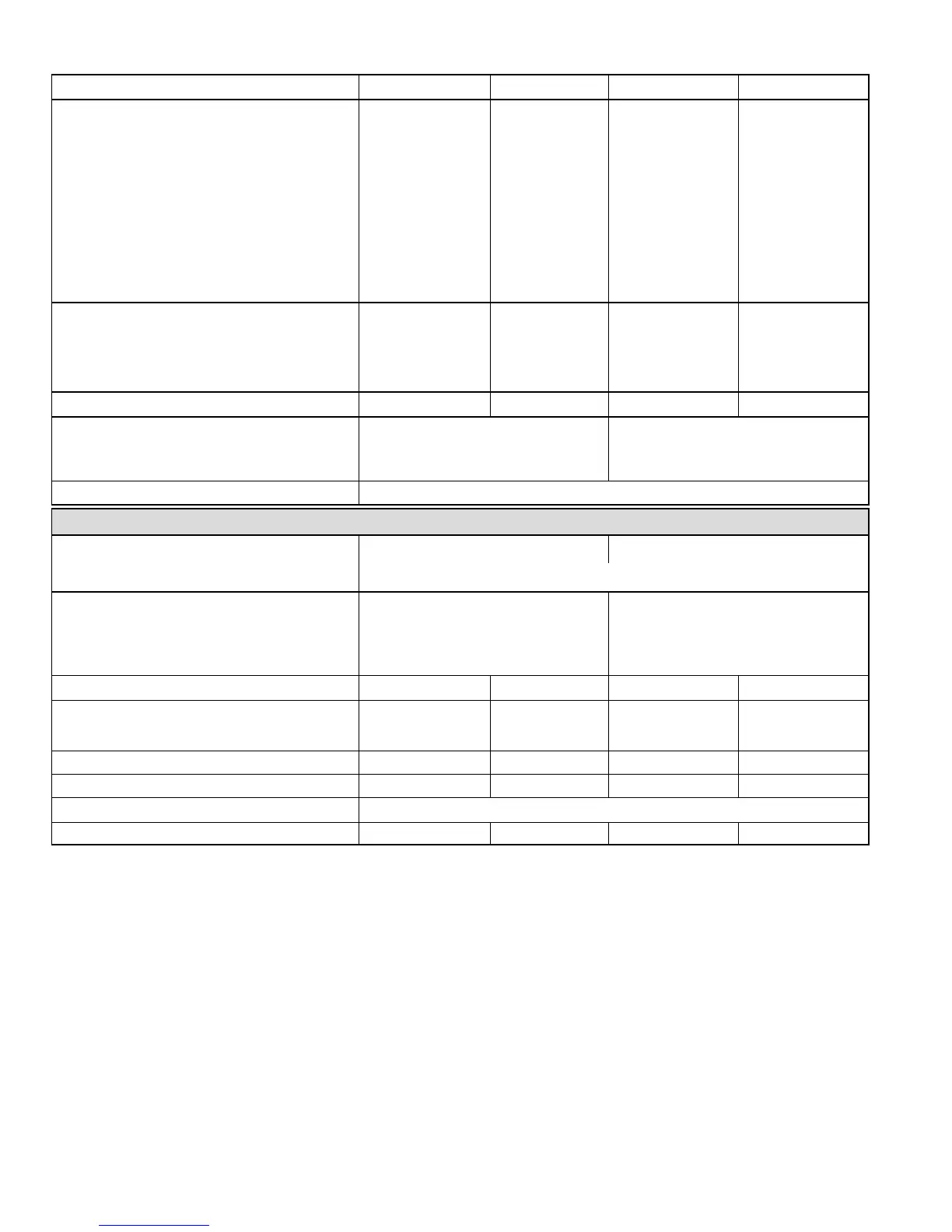

SPECIFICATIONS
ModelNo. G50UH−60C−110 G50UH−48C−135 G50UH−60D−135 G50UH−60D−155
Gas
Heating
Input− Btuh (kW) 110,000 (32.2) 132,000 (38.7) 132,000 (38.7) 154,000 (45.1)
Heating
Performance
Output− Btuh (kW) 90,200 (26.4) 106,900 (31.3) 106,900 (31.3) 124,700 (36.5)
AFUE 80.0% 80.0% 80.0% 80.0%
California Seasonal Efficiency 75.7% 76.0% 75.0% 75.6%
Highstatic(AGA/CGA)− in.w.g. (Pa) .50 (124) .50 (124) .50 (124) .50 (124)
Flue connection − in. (mm) round 4 (102) 4 (102) 4 (102) 4 (102)
GaspipesizeIPS− in. (mm) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7) 1/2 (12.7)
Temperature rise range − F (C) 35 − 65 (19 − 36) 50 − 80 (28 − 44) 45 − 75 (25 − 42) 50 − 80 (28 − 44)
Indoor
Blower
Wheelnominaldiameter xwidth −in.
(mm)
11−1/2 x 10 (292 x 254) 10 x 10 (254 x 254) 11−1/2 x 10 (292 x 254) 11−1/2 x 10 (292 x 254)
Motoroutput − hp (W) 3/4 (560) 1/2 (373) 3/4 (560) 3/4 (560)
Tons(kW) ofadd-oncooling 5 − 5+ (17.6 − 17.6+) 2 − 4 (7.0 − 14.1) 5 − 5+ (17.6 − 17.6+) 5 − 5+ (17.6 − 17.6+)
Shippingweight − 1 package 172 lbs. (78 kg) 178 lbs. (81 kg) 192 lbs. (87 kg) 201 lbs. (91 kg)
Matching Coils
Up−flow cased C33−36C−2F, C33−48C−2F, C33−50/60C−2F, C33−60D−2F, C33−62D−2F
Horizontal
CH33−36C−2F, CH33−48C−2F,
CH33−50/60C−2F
CH33−60D−2F, CH33−62D−2F
Electricalcharacteristics 120 volts − 60 hertz − 1 phase (less than 12 amps)
OPTIONAL ACCESSORIES - MUST BE ORDERED EXTRA
 Air Filter and Rack
Kit
Horizontal (end)
87L97 (1) 20 x 25 x 1 in. (508 x 635 x 25 mm) 87L98 (1) 25 x 25 x 1 in. (635 x 635 x 25 mm)
Kit
Number & size of fil-
ters
Side Return Single 44J22 or Ten Pack (66K63) − (1) 16 x 25 x 1 (406 x 635 x 25)
EZ Filter
Base
Catalog Number − Shipping Weight 73P57 − 8 lbs. (4 kg) 73P58 − 10 lbs. (5 kg)
Base
Dimensions − H x W x D 4 x 21−5/8 x 28−5/8 in. (102 x 549 x 727 mm) 4 x 24−5/8 x 28−5/8 in. (102 x 625 x 727 mm)
Number and size of field provided fil-
ter
20 x 25 x 1 in. (508 x 635 x25 mm) 24 x 24 x 1 in. (610 x 610 x 25 mm)
 High Altitude Orifice Kit − Natural Gas Only 47M82 47M82 47M82 47M82
 High Altitude
Pressure Switch Kit
4501−7500 ft. (1372−2286 m) 49L90 49L90 49L90 49L90
Pressure Switch Kit
7501−10,000 ft. (2286−3048m) 15M22 15M22 15M22 15M22
Horizontal Support Frame Kit − Ship. Weight − lbs. (kg) 56J18 − 18 (8) 56J18 − 18 (8) 56J18 − 18 (8) 56J18 − 18 (8)
RAB Return Air Base RAB60C (12M71) − − − − RAB60D (12M72) RAB60D (12M72)
LPG/Propane Kit See High Altitude Table Page 15
Twinning Kit 15L38 15L38 15L38 15L38
Annual Fuel Utilization Efficiency based on DOE test procedures and according to FTC labeling regulations. Isolated combustion system rating for non-weatherized furnaces.
NOTE − Filters and provisions for mounting are not furnished and must be field provided.
 The same C33 uncased models match the furnaces shown but require an optional adaptor base or field fabricated transition. See C33 coil bulletin for additional information.
 Required for proper operation at altitudes over 4500 ft. (1370 m).
 Cleanable polyurethane frame type filter.
 Flue connection on the unit is 4 in. (102 mm) diameter. Most applications will require 5 in. (127 mm) venting and field supplied 4 x 5 in. (102 x 127 mm) adaptor. See Venting
Tables in the Installation Instructions for detailed information.
 Not for use with RAB Return Air Base or with 60C and 60D size units with air flow requirements of 1800 cfm (850 L/s) or greater. See Blower Performance Tables
for additional information.
 Required for proper operation at altitudes from 7501 to 10,000 ft. (2286 to 3048 m).
