Lennox GCS16-513-125 - Page 123

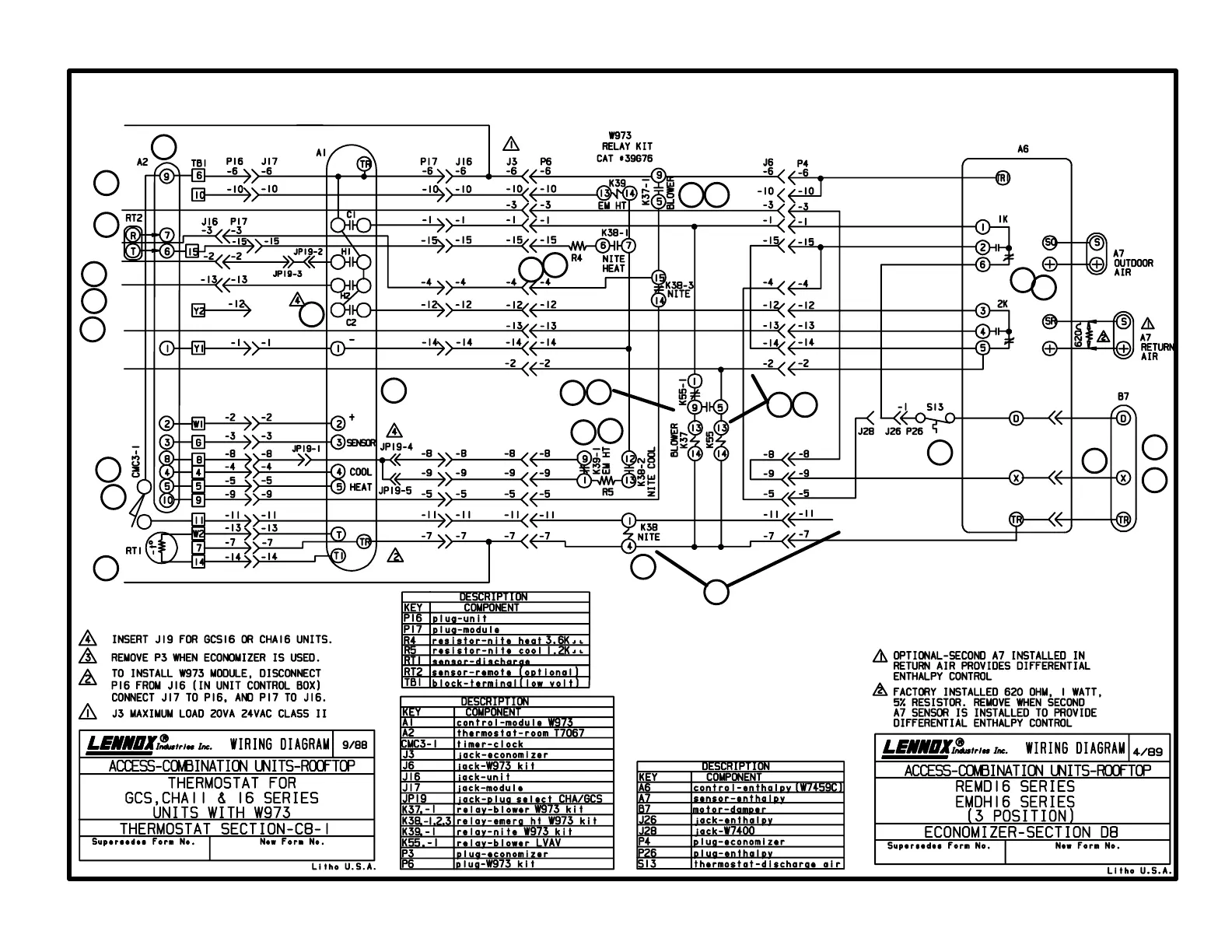

C8-1 diagram W973 Control with threeposition economizer
with D8 diagram
Page 123
Thermostat Footnotes
Economizer Footnotes
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
24V POWER
ECONOMIZER
BLOWER
HEAT 1
HEAT 2
COOL 2
COOL 1
24V COMMON
6
11
10
