Lennox GCS16-653-75

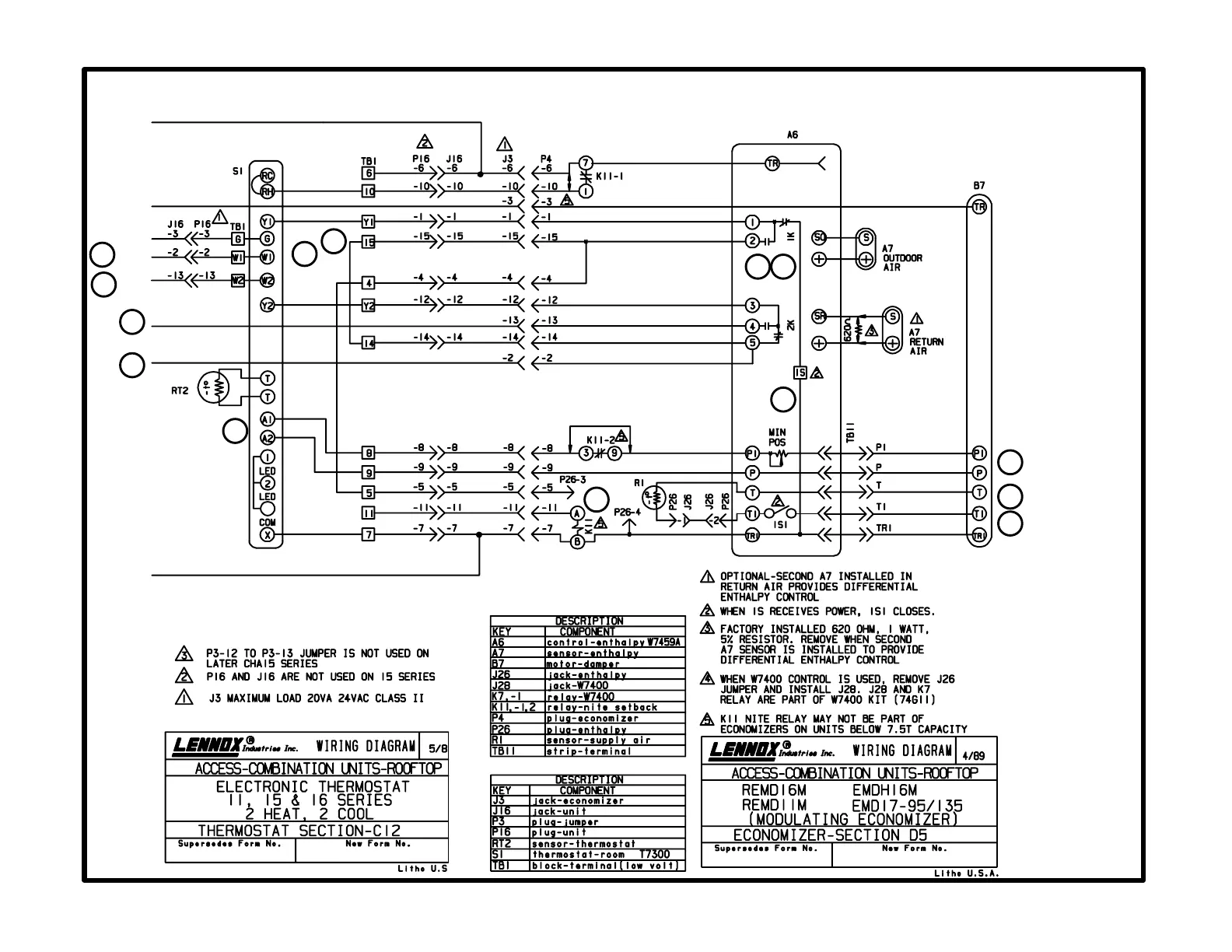

C12diagram with D5 diagram T7300 with modulating economizer
Page 115
Thermostat Footnotes
Economizer Footnotes
24V POWER
ECONOMIZER
BLOWER
HEAT 1
HEAT 2
COOL 1
COOL 2
24V COMMON
1
2
3
4
5
6
7
8
9
10
11
12
13
14
