Page 41
XI-ACCESSORIES
This section describes the application of most of the op
tional accessories which can be connected to the GCS16.
Some of the accessories (for example, the Warm Up Con
trol Kit) are described in the operation sequence section of
this manual.
A-Lifting Lug Kit

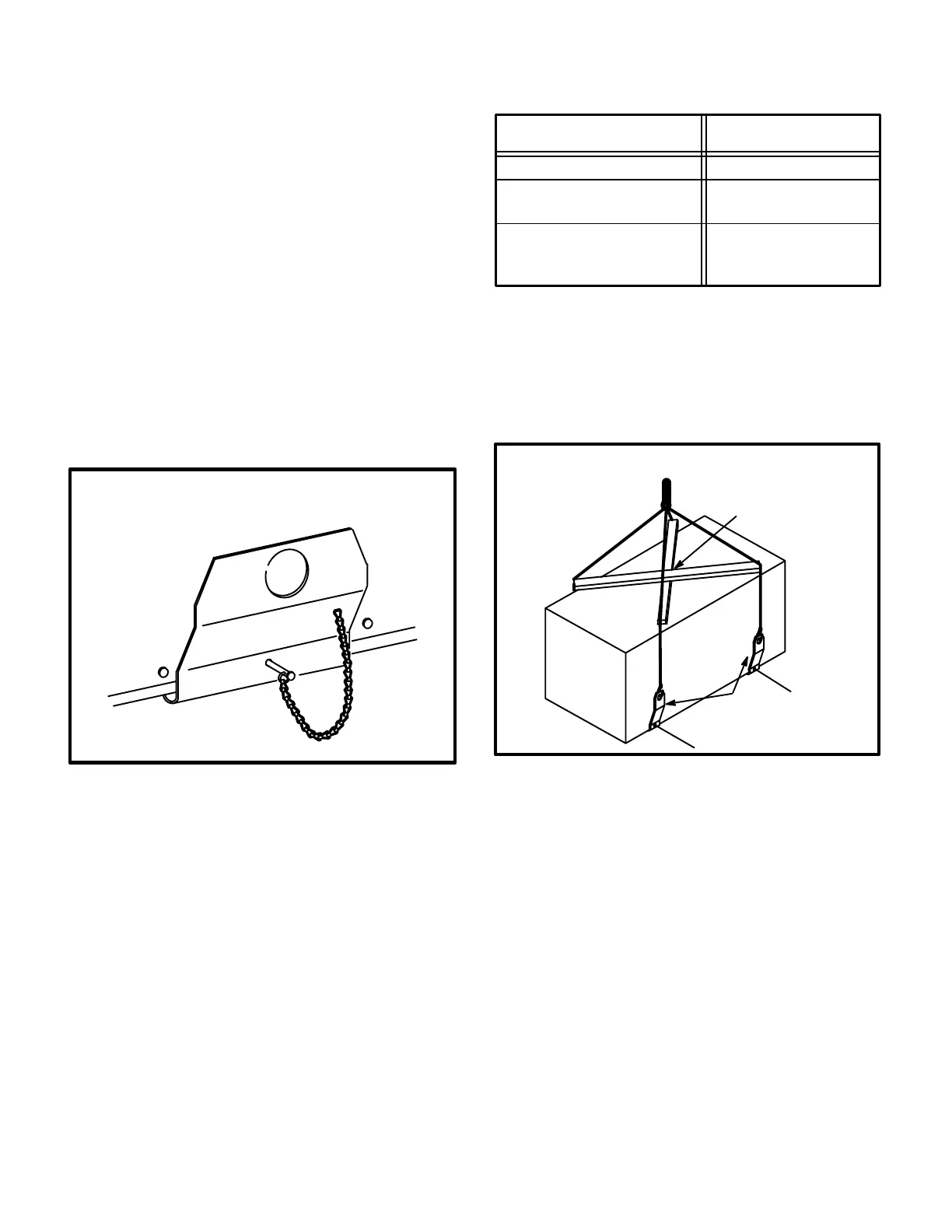

Optional lifting lug kit consists of four brackets like the one
shown in figure 40. The brackets are used for lifting the
unit during installation or when servicing. Lifting lugs are
not supplied with the unit. Lifting lugs can be removed from
the unit and reused.
A tethered pin is inserted in the bracket and through a hole
in the base channel of the unit. The pin is used only to hold
the bracket in place; it does not support any weight. The
bracket bottom lip supports the weight of the unit.
FIGURE 40
LIFTING LUG KIT
Unit Maximum Unit Weight
GCS16H-261/311-50/75
GCS16-411/413-50/100
GCS16R-411-50/100
GCS16-511/513/651/653-125
GCS16-651/653-75
GCS16R-511/651-125
GCS16R-511-75
380 Lbs.
500 Lbs.
650 Lbs.
TABLE 21
If unit must be lifted for service, use only lifting lugs and
cables with spreader bars to lift unit. Table 21 shows maxi
mum unit weight. Figure 41 shows how to rig the unit for
lifting. To prevent cabinet damage never use chains for lift
ing unit.
UNIT
MOUNTING
BRACKETS
FOR LIFTING
SPREADER BARS
RIGGING UNIT FOR LIFTING
FIGURE 41
