Page 45

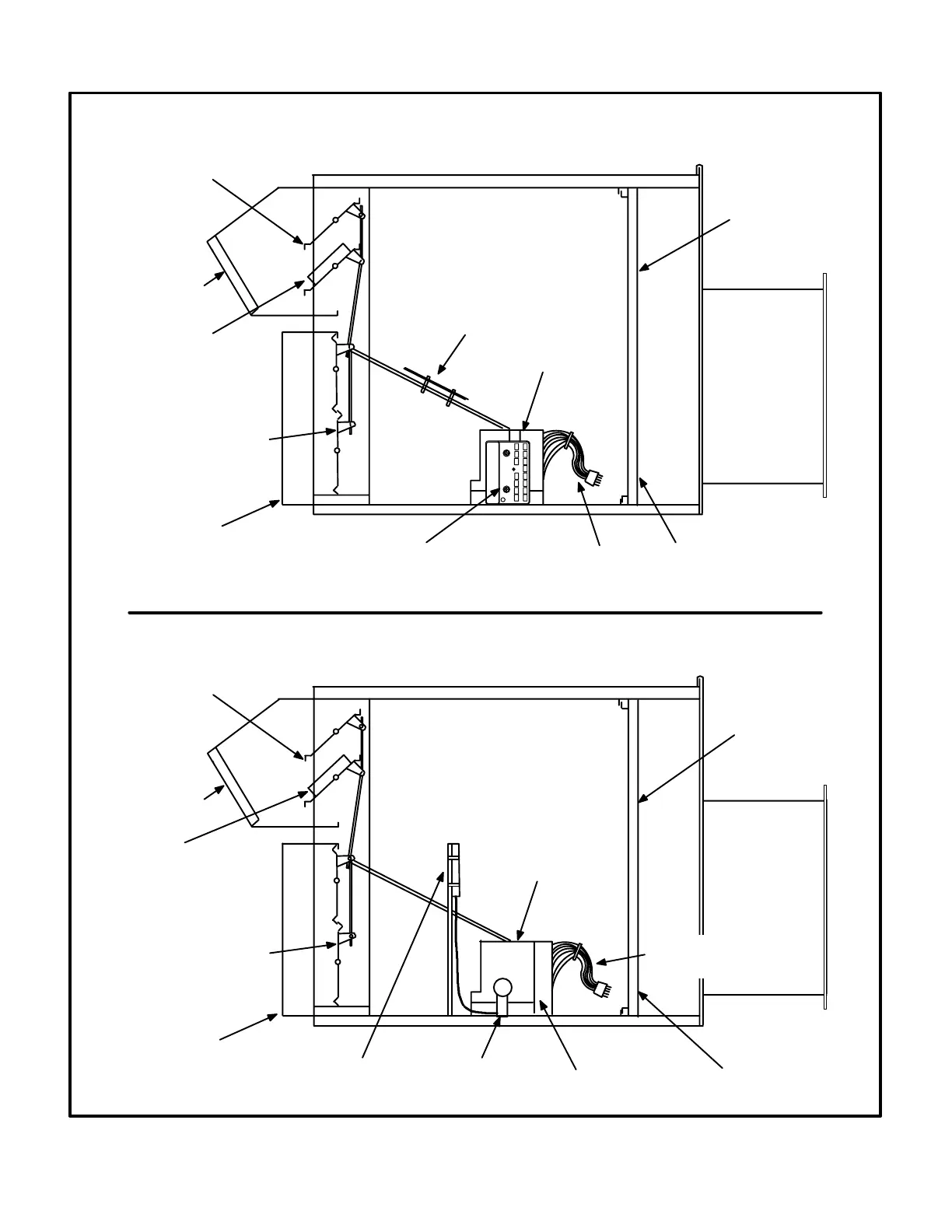

EMDH16M PARTS ARRANGEMENT
FIGURE 47
EMDH16 PARTS ARRANGEMENT
ACCESS COVER
REMOVED
ENTHALPY CONTROL
on REMOTE
MOUNTING BASE
DAMPER MOTOR
ENTHALPY CONTROL
MIXED AIR
SENSOR CONTROL
MIXED AIR
SENSING BULB
NOTE - Mixed air sensor and sens
ing bulb are shown as they are fac
tory installed in a EMDH16-41.
EMDH16-65 is similar. Mixed air
sensor should be removed from
economizer and installed in unit
blower compartment and sensing
bulb should be installed in supply
air stream as shown in figure 50.
OUTDOOR AIR DAMPERS
RETURN AIR DAMPERS
ENTHALPY SENSOR
ENTHALPY SENSOR
ACCESS COVER
REMOVED
OUTDOOR AIR DAMPERS
RETURN AIR DAMPERS
MIXED AIR SENSOR
NOTE - Mixed air sensor is shown
as it is factory installed in a
EMDH16M-41. EMDH16M-65 is
similar. Mixed air sensor should be
removed from economizer and
installed in supply air stream as
shown in figure 50.
WIRING HARNESS
(connects to jackplug in
blower compartment)
DAMPER MOTOR
FILTER
WIRING HARNESS
(connects to jackplug in
blower compartment)
TRANSITION
TRANSITION
FILTER
RETURN DUCT
FLANGE
OUTDOOR DAMPER
HOOD
OUTDOOR DAMPER
HOOD
RETURN DUCT
FLANGE
