Lennox HS40 Series

Page 2

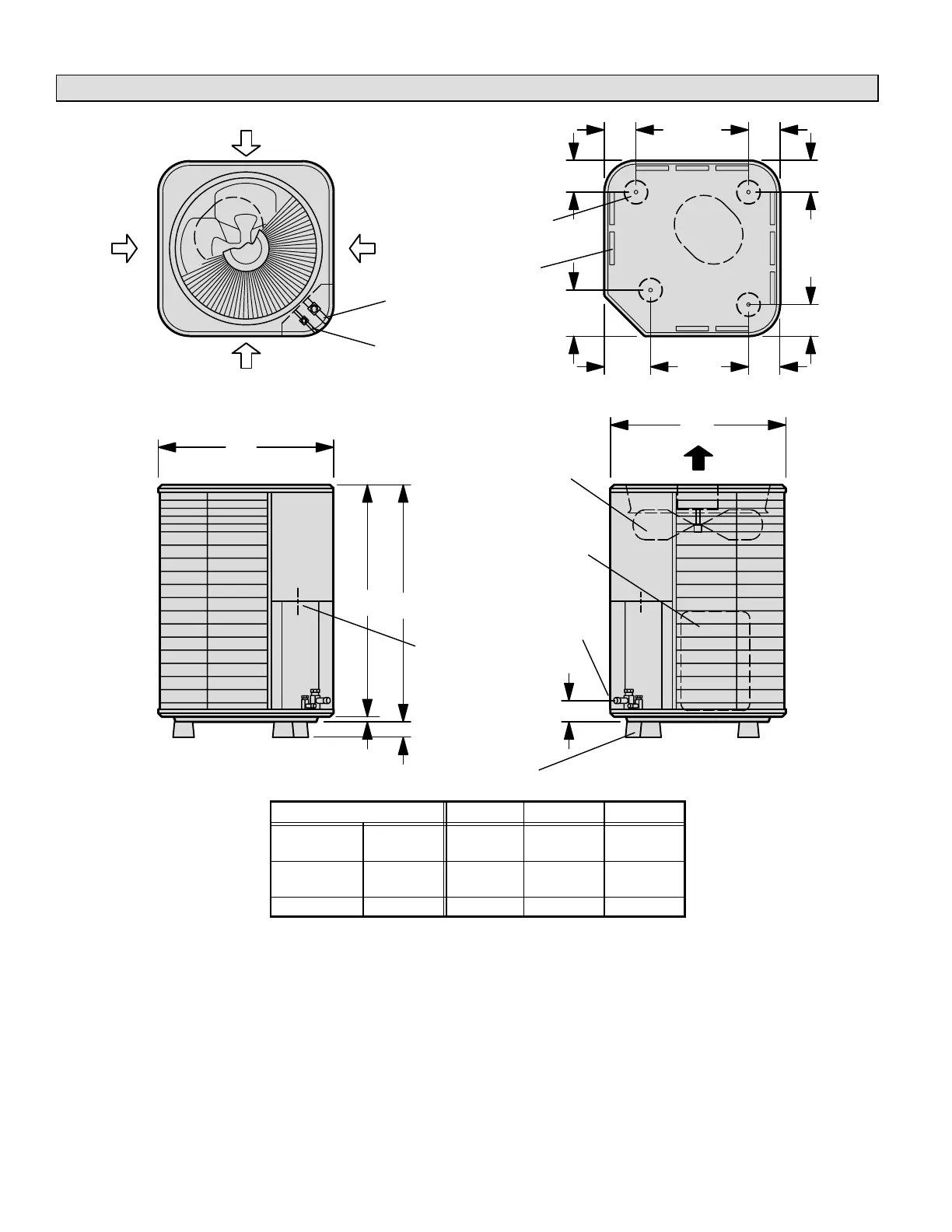

Unit Dimensions − mm
SIDE VIEW
ELECTRICAL
INLETS
SUCTION &
LIQUID LINE
CONNECTION
INLET
AIR
INLET
AIR
DISCHARGE AIR
SIDE VIEW
TOP VIEW
A
B
OUTDOOR
COIL FAN
COMPRESSOR
INLET AIR
INLET AIR
SUCTION LINE
CONNECTION
(70)
LIQUID LINE
CONNECTION
OPTIONAL UNIT
STANDOFF KIT (4)
(Field Installed)
(111)
(162)
(162)
TOP VIEW BASE SECTION
(51)
(19)
(111)
(111)
(111)
(111)
(111)
COMPRESSOR
COIL DRAIN OUTLETS
(Around perimeter of base)
OPTIONAL UNIT
STANDOFF KIT (4)
(Field Installed)
C
C
Model No. A B C
HS40018
mm
635
616
616
HS40

018
HS40024
mm 635 616 616
HS40036
mm
838
819
616
HS40036
HS40048
mm 838 819 616
HS40 065
mm
946
927
718
HS40065 mm 946 927 718
