Page 7
Outdoor Air Hood - Manual Damper
Hood is shipped in the return air section when the
dampers are factory-installed.

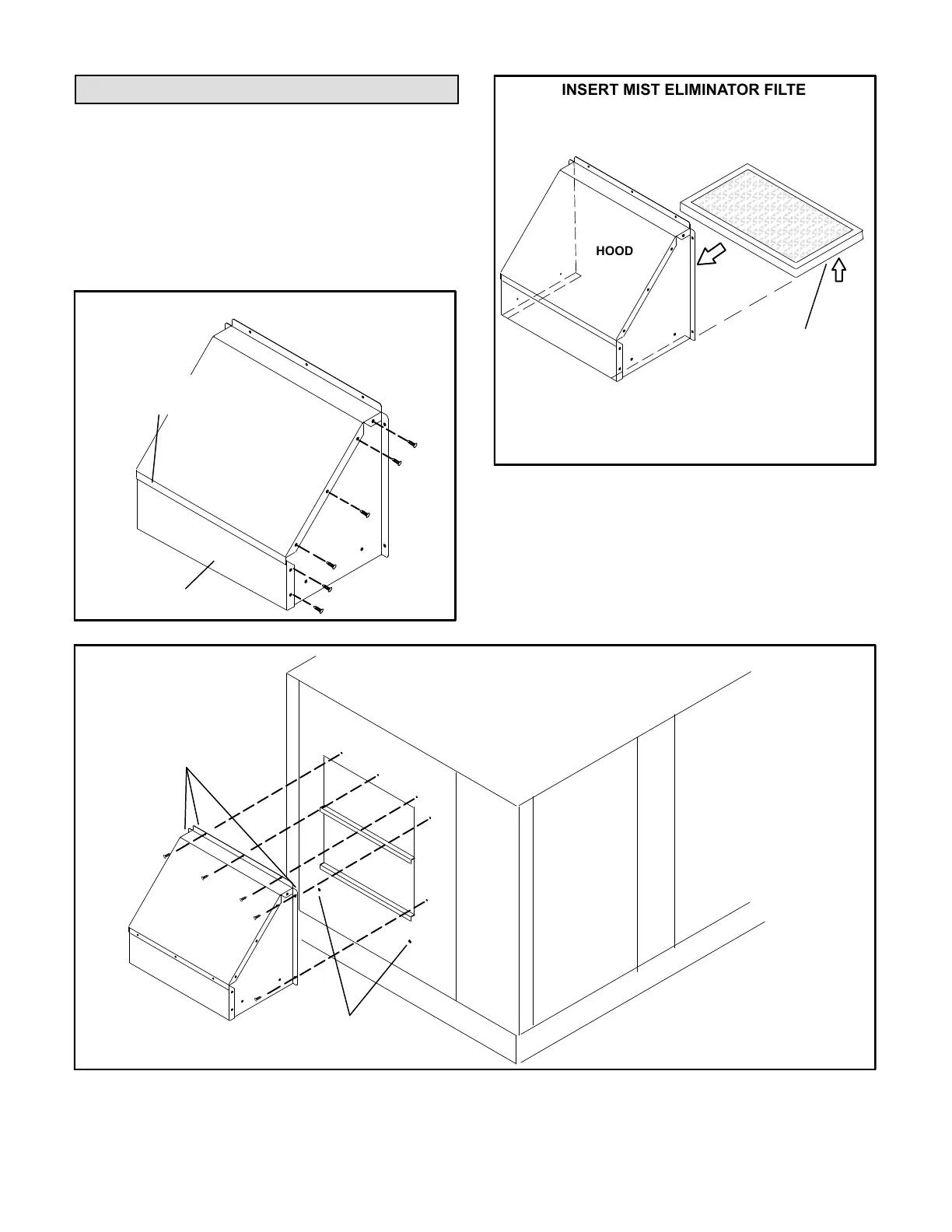

1- Assemble hood as shown in figure 15.
2- Install mist eliminator filter as shown in figure 16.
Make sure arrows on filter match airflow.
3- Secure hood to unit as shown in figure 17.
4- Install kit screws into the two open holes on the end
panel below the hood. See figure 17.
HOOD TOP
ASSEMBLE HOOD
HOOD
SIDE (2)
HOOD FRONT
POSITION HOOD TOP
FLANGE ON TOP OF
HOOD FRONT
FIGURE 15
ÂÂÂÂÂÂÂÂ
ÂÂÂÂÂÂÂÂ
ÂÂÂÂÂÂÂÂ
ÂÂÂÂÂÂÂÂ
HOOD
INSERT MIST ELIMINATOR FILTER
FILTER
MAKE SURE ARROWS ON
MIST ELIMINATOR FILTER
MATCH AIRFLOW DIRECTION
FIGURE 16
HOOD
INSTALL HOOD
UNIT
APPLY FOAM
TAPE TO INSIDE
OF FLANGES
FIGURE 17
INSTALL KIT SCREWS INTO
OPEN HOLES ON LGH/LCH/
KG/KC/KH UNITS
